Description

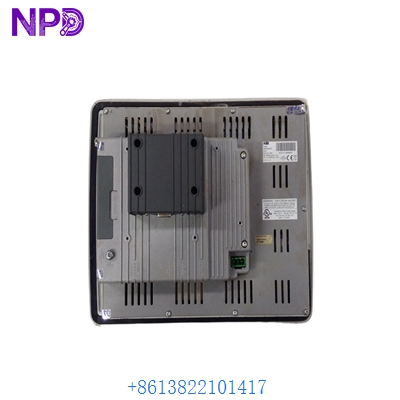

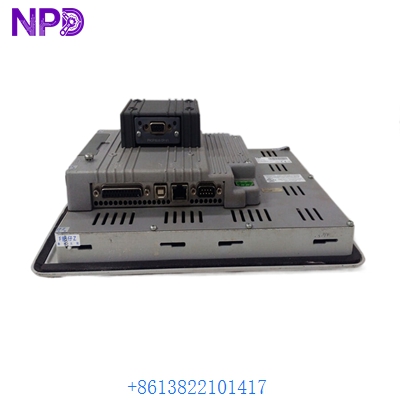

The ABB PP845 is a high-performance Human Machine Interface (HMI) from the Panel 800 series. Designed for the 3BSE042235R1 hardware platform, it provides a robust touch-screen interface for monitoring and controlling industrial processes within the 800xA and Compact Product Suite environments.
Product Parameters
- Model Code: PP845
- Part Number: 3BSE042235R1
- Display Type: TFT-LCD Color Touch Screen
- Screen Size: 7-inch Widescreen
- Resolution: 800 x 480 Pixels
- Backlight: LED (Dimmable)
Product Specifications
- Processor: ARM9 400 MHz
- Memory: 128 MB Flash / 128 MB RAM
- Communication Ports: RS232, RS422/485, and 10/100 Base-T Ethernet
- USB Ports: 1x USB Host 2.0
- Protection Class: IP65 Front / IP20 Rear
- Input Power: 24V DC (18-32V DC)
Application Fields
- Oil and gas upstream and downstream control
- Manufacturing and assembly line visualization
- Marine and offshore vessel management systems
- Chemical plant automation and process monitoring
Q&A
- Q: Is the PP845 sunlight readable? A: It features a high-contrast display suitable for indoor industrial lighting, though direct outdoor sunlight may require a sunshade.
- Q: Does it support multi-touch gestures? A: The PP845 uses resistive touch technology, primarily optimized for single-touch precision with industrial gloves.
- Q: Can I backup projects via USB? A: Yes, the integrated USB port allows for easy project transfer and firmware updates.
Selection Requirements
- Confirm the communication protocol (Modbus, Profibus, or Ethernet/IP) required for your PLC.
- Ensure the physical cutout dimensions match your existing control cabinet panel.
- Verify compatibility with Panel Builder 800 version 5.1 or higher for engineering.
