Description

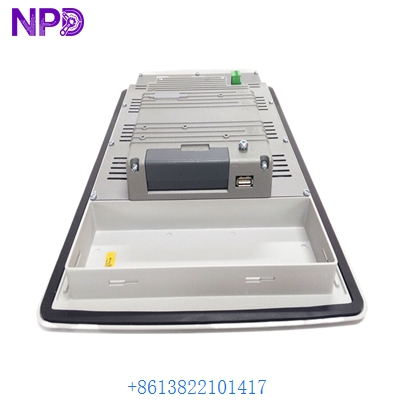

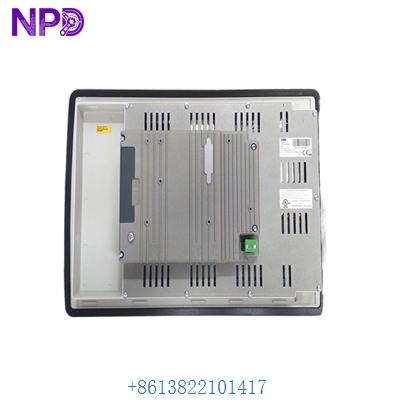

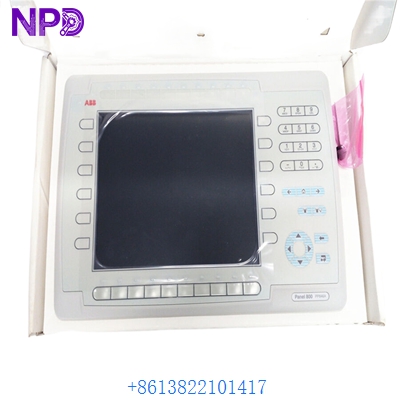

The ABB PP846A is a high-performance Human Machine Interface (HMI) from the Panel 800 series. Designed for demanding industrial environments, it provides a clear, responsive touch display that allows operators to monitor and control complex processes with high-resolution graphics and robust communication capabilities.
Product Parameters
- Part Number: 3BSE042238R2
- Model Code: PP846A
- Display Size: 10.4-inch TFT-LCD
- Resolution: 800 x 600 pixels (SVGA)
- Input Voltage: 24V DC (18-32V DC)
- Processor: 400 MHz RISC processor
Product Specifications
- Touch Screen: Analog resistive
- Memory: 64 MB Flash / 64 MB RAM
- Communication: 2x Ethernet, 2x Serial (RS232/RS422/RS485), 1x USB
- Protection: IP65 front panel / IP20 rear
- Operating Temp: 0°C to +50°C
- Backlight Life: 50,000 hours at 25°C
Application Areas
- Factory automation and machine control
- Marine engine room monitoring systems
- Oil and gas process visualization
- Food and beverage production lines
- Water treatment facility management
Product Q&A
Q: What software is used to program the PP846A? A: It is typically configured using the Panel Builder tool, which supports a wide range of communication drivers for ABB and third-party PLCs.
Q: Can this panel be used in outdoor environments? A: While it has an IP65 front rating, it is designed for indoor industrial use; outdoor applications require additional sun and weather protection.
Q: Does it support multi-language displays? A: Yes, the Panel 800 series supports dynamic language switching within the operator application.
