Description
The ABB PP846A (Part number 3BSE042238R2) is a high-performance, 10.4-inch industrial operator panel from the Panel 800 series. It serves as a ruggedized HMI (Human-Machine Interface) solution, offering high-resolution visualization and multi-protocol connectivity for the 800xA system and various third-party PLC environments.
Product Parameters (Datasheet)
- Model Number: PP846A
- Part Number: 3BSE042238R2
- Display Size: 10.4 inches (Diagonal)
- Display Type: TFT-LCD Color Display
- Resolution: 800 x 600 pixels (SVGA)
- Touch Screen: Analog Resistive
- Processor: High-speed 32-bit RISC processor
- Memory: 128 MB Flash, 128 MB RAM
- Communication Ports: * 1 x Ethernet (10/100 Mbps)
- 2 x Serial Ports (RS-232, RS-422/485)
- 2 x USB 2.0 Host ports
- Input Voltage: 24V DC (18V to 32V DC)
- Protection Class: IP66 (Front panel when mounted)

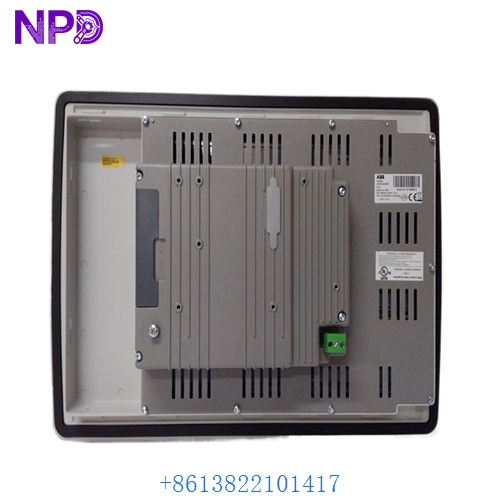

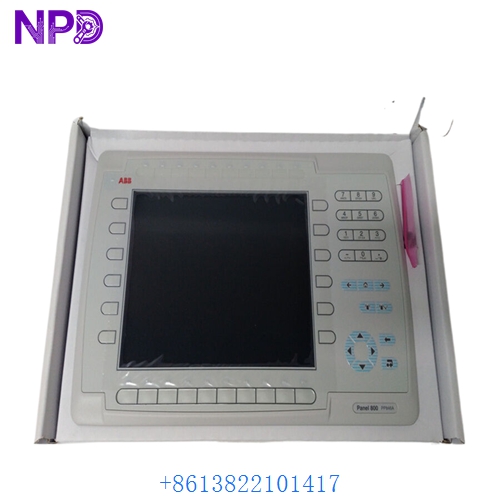

ABB PP846A 3BSE042238R2
ABB PP846A 3BSE042238R2
ABB PP846A 3BSE042238R2
Country of Origin
This HMI unit is manufactured by ABB in Sweden. It is a key component of the Advant OCS and 800xA portfolios, designed for long-term availability in global industrial markets.
Application Fields
The PP846A is designed for medium-to-large machine control and process visualization:
- Process Automation: Monitoring complex flow diagrams in oil, gas, and chemical plants.
- Marine & Offshore: Engine room monitoring and ballast control systems (due to its high environmental resistance).
- Power Generation: Localized control for substations and turbine auxiliary systems.
- Material Handling: Visualizing high-speed sorting and conveyor systems in logistics centers.
Product Usage Instructions
- Panel Integration: Cut the mounting hole according to the PP846A dimensions. Ensure the mounting clips are tightened evenly to achieve the IP66 seal against the cabinet door.
- Power Connection: Use a regulated 24V DC power supply. Proper earthing of the unit is essential to protect the internal electronics from industrial transients and to ensure touch screen accuracy.
- Project Deployment: Create and edit screens using Panel Builder 800. The software allows for easy migration of tags from ABB controllers or importing third-party PLC variables.
- Peripheral Use: The dual USB ports can be used for connecting external storage, keyboards, or printers to enhance operator data entry and logging capabilities.
- Environment Check: Avoid installing the unit in direct sunlight unless shaded, as excessive UV exposure can degrade the resistive touch overlay over time.
Product Technical Description
The PP846A is built on a robust Windows CE platform, providing a stable environment for real-time graphics and alarm management. Technically, the SVGA resolution allows for detailed P&ID (Piping and Instrumentation Diagram) displays without loss of clarity. The “A” version represents an updated hardware revision with improved memory management and processing efficiency compared to earlier non-A models. It features built-in drivers for over 50 different PLC types, making it one of the most flexible HMIs for mixed-vendor factory floors.
Q&A (Common Questions)
Q: What is the difference between the PP846 and the PP846A? A: The PP846A features updated internal components and typically offers better performance and longevity in terms of spare part availability compared to the original version.
Q: Can I use this panel with a Siemens S7-1200 or S7-1500? A: Yes, the Panel Builder 800 software includes drivers for Siemens Industrial Ethernet and Profibus protocols.
Q: Is it possible to use the USB ports for data logging? A: Yes, the system can be configured to log alarms, trends, and event histories directly to a USB flash drive.
Q: Does the PP846A support remote VNC viewing? A: Yes, the Panel 800 series supports VNC server functionality, allowing operators to view and control the HMI from a remote PC or tablet via Ethernet.
Similar Model Recommendations
- ABB PP836A (Smaller 10.4-inch variant with different resolution/features)
- ABB PP845A (7-inch variant)
- ABB PP865A (Large 15-inch high-performance variant)
- ABB CP660 (Modern CP600 series alternative for 10-inch requirements)
- ABB 3BSE042236R2 (Related Panel 800 hardware)
For technical support or to source the ABB PP846A 3BSE042238R2, please contact our industrial HMI specialists.
