Description
🔹 Product Introduction

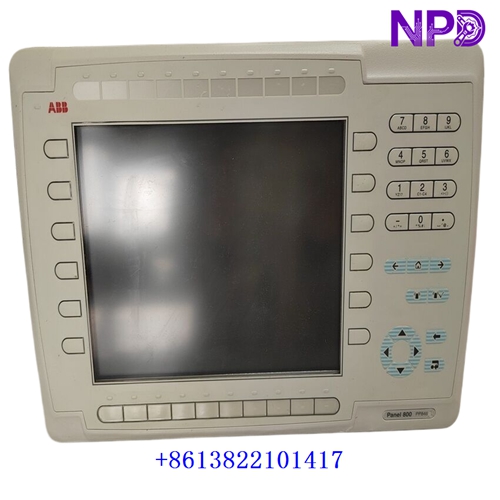

The ABB PP846A 3BSE042238R2 is a Panel 800 operator panel designed to provide a human-machine interface (HMI) for industrial automation and process control systems. It enables operators to monitor process variables, view alarms, navigate graphical screens, and interact with compatible control equipment. The panel features a 10.4-inch TFT color display with an 800 × 600 pixel resolution and physical function keys. It supports serial communication, Ethernet, USB, and CompactFlash interfaces for system communication and configuration.
The PP846A is suitable for compatible ABB automation applications where operators need local process visualization and control. Configuration requires Panel Builder 800 version 5. Before replacement, verify the existing panel model, application project compatibility, communication settings, and mounting dimensions. The referenced seller listing identifies the unit as used, so its operating condition and included accessories should be confirmed before purchase.
📋 Product Datasheet
| Parameter | Specification |
|---|---|
| Brand | ABB |
| Model | PP846A |
| Product ID | 3BSE042238R2 |
| Series | Panel 800 |
| Product Name | Operator Panel / HMI |
| Place of Manufacture | Varies by production batch |
| Product Status | Used, according to the referenced listing |
| Display | 10.4-inch TFT color display |
| Resolution | 800 × 600 pixels |
| Dimensions | Approx. 382 × 252 × 60 mm |
| Weight | Approx. 2.3 kg net |
| Country of Origin | Varies by catalog record; verify the unit label |
| Power Requirements | 24 V DC nominal; permitted range 20–30 V DC |
| Power Consumption | Approx. 0.5 A typical, 1.0 A maximum |
| Communication Interfaces | Ethernet, RS232C, RS422/RS485, USB |
| Front / Rear Protection | IP66 front / IP20 rear |
| Configuration Software | Panel Builder 800 version 5 |
| Discontinued | Current lifecycle status not confirmed |
🔧 Fault Troubleshooting and Common Questions
- Panel does not start: Check the 24 V DC supply, terminal connections, polarity, and power supply condition.
- Communication failure: Verify Ethernet or serial cabling, communication parameters, protocol configuration, and controller settings.
- Display is blank or difficult to read: Check power status, backlight condition, and display hardware.
- Application does not load: Confirm project compatibility and the required Panel Builder 800 software version.
- Can it replace another Panel 800 model? Not automatically. Verify the model number, project compatibility, cutout size, connectors, and firmware requirements.
⚠️ Safety Precautions
Disconnect power before wiring or removing the panel. Use a correctly rated 24 V DC supply, protect the unit against electrostatic discharge during handling, and ensure the enclosure and panel seals are properly installed. Changes to operating screens or control commands should be validated before the system is returned to service.
⭐ Recommended 15 ABB Models
- PP846 — Earlier Panel 800 operator panel; verify hardware and project compatibility.
- PP865A — Panel 800 operator interface for compatible industrial applications.
- PP865 — Operator panel in the ABB Panel 800 family.
- PP886H — Panel 800 HMI model for supported automation configurations.
- PP836A — Compact Panel 800 operator panel with a smaller display.
- PP835A — Panel 800 HMI for compatible process control systems.
- PP874 — ABB operator panel for industrial visualization applications.
- PM866 — AC 800M programmable controller.
- PM891 — High-performance AC 800M controller.
- CI854A — PROFIBUS-DP communication interface for compatible AC 800M systems.
- CI840 — Communication interface module for supported ABB automation systems.
- AI810 — Analog input module for process measurement.
- AO810 — Analog output module for control signals.
- DI810 — Digital input module for discrete status signals.
- DO810 — Digital output module for discrete control signals.
The PP846 and other Panel 800 models are related operator interfaces, but they are not guaranteed drop-in replacements. Confirm the exact model, hardware revision, and configuration requirements before ordering.
