Description
- The ABB PP877K (3BSE069274R1) is a high-performance, widescreen operator panel from the ABB Panel 800 series. Featuring a robust 7-inch display and advanced graphics, it is designed to provide a comprehensive human-machine interface (HMI) for the AC 800M and other automation systems, offering both reliability and intuitive process control.
Product Parameters
- Display Type: 7.0″ TFT-LCD Widescreen
- Resolution: 800 x 480 Pixels (WVGA)
- Backlight: LED (Dimming supported)
- Touch Panel: Analog Resistive
- Communication: 2x Ethernet (10/100), 2x Serial (RS-232/422/485)
- USB Ports: 1x USB 2.0 Host
- Input Voltage: 24 VDC (18-32 VDC)
Product Specifications
- Origin: Sweden / Taiwan
- Discontinued Status: Active
- Weight: 0.80 kg
- Dimensions: 204 x 143 x 50 mm
- Datasheet: Available upon request

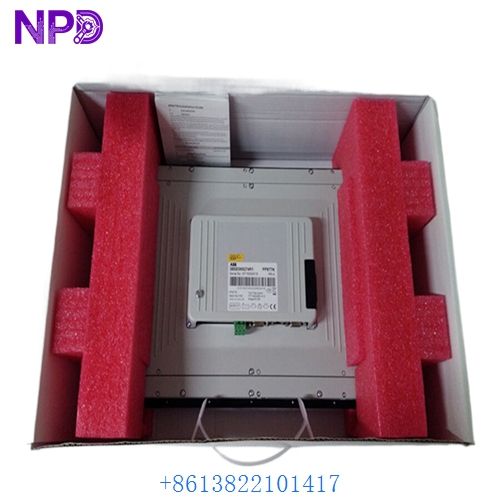

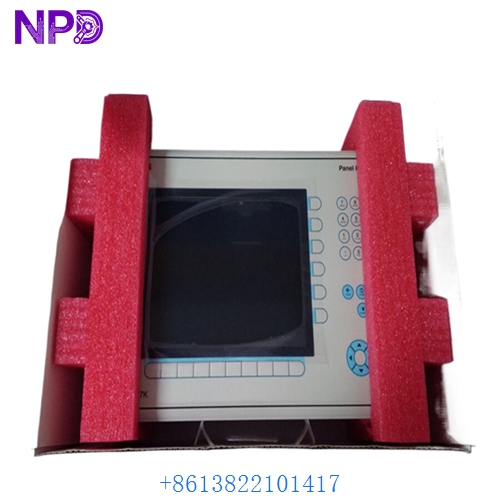

ABB PP877K 3BSE069274R1
ABB PP877K 3BSE069274R1
ABB PP877K 3BSE069274R1
Application Fields
- Process Control: Real-time monitoring and parameter adjustment for 800xA systems.
- Marine Automation: Compact bridge and engine room monitoring consoles.
- Oil & Gas: Control interfaces for hazardous environment equipment.
- Food & Beverage: IP65-rated panels for washdown-capable processing areas.
Product Q&A
Q: What software is used to configure the PP877K? A: This panel is programmed using the Panel Builder 800 engineering tool, which allows for advanced vector graphics and easy PLC integration.
Q: Does the PP877K support multiple PLC drivers? A: Yes, it includes a wide range of drivers for ABB controllers (like AC 800M) as well as third-party PLCs from Siemens, Rockwell, and Schneider.
Q: Can it be used in outdoor environments? A: While designed for industrial indoor use, it features a high-brightness display and IP65 front protection, making it suitable for shaded outdoor enclosures.
