Description
The ABB PPC322BE (HIEE300900R1) is a high-performance processor board utilized within ABB’s specialized power electronics and excitation systems, such as the UNITROL series. This module serves as the central intelligence unit, responsible for executing complex control algorithms, managing high-speed I/O communication, and ensuring the precise regulation of power parameters. Engineered for the demanding environments of power plants and industrial substations, the PPC322BE provides the computational reliability required for large-scale energy management.
Product Specifications
- Model Identification: ABB PPC322BE (Part Number: HIEE300900R1)
- Processor Architecture: High-speed digital signal processing capabilities
- System Compatibility: Primarily used in UNITROL 6000 and MEGATROL systems
- Memory Configuration: Onboard non-volatile Flash and high-speed RAM for real-time logic
- Communication Interfaces: Fiber optic links for high-speed interference-free data exchange
- Dimensions: 233 mm x 160 mm (Standard Eurocard format)
- Weight: 0.72 kg
- Country of Origin: Switzerland / Estonia
Application Fields
The ABB PPC322BE is predominantly found in critical energy infrastructure:
- Excitation Systems: Managing the field current of synchronous generators in nuclear, hydro, and thermal power plants.
- Static Frequency Converters (SFC): Controlling large-scale motor starters in pumped-storage plants.
- High Power Rectifiers: Regulating high-current DC supplies for aluminum smelting and chemical electrolysis.
- Grid Stabilization: Part of the control logic for Static Var Compensators (SVC) and FACTS devices.
- Marine Propulsion: Controlling the power drives for large-scale electric vessel propulsion systems.

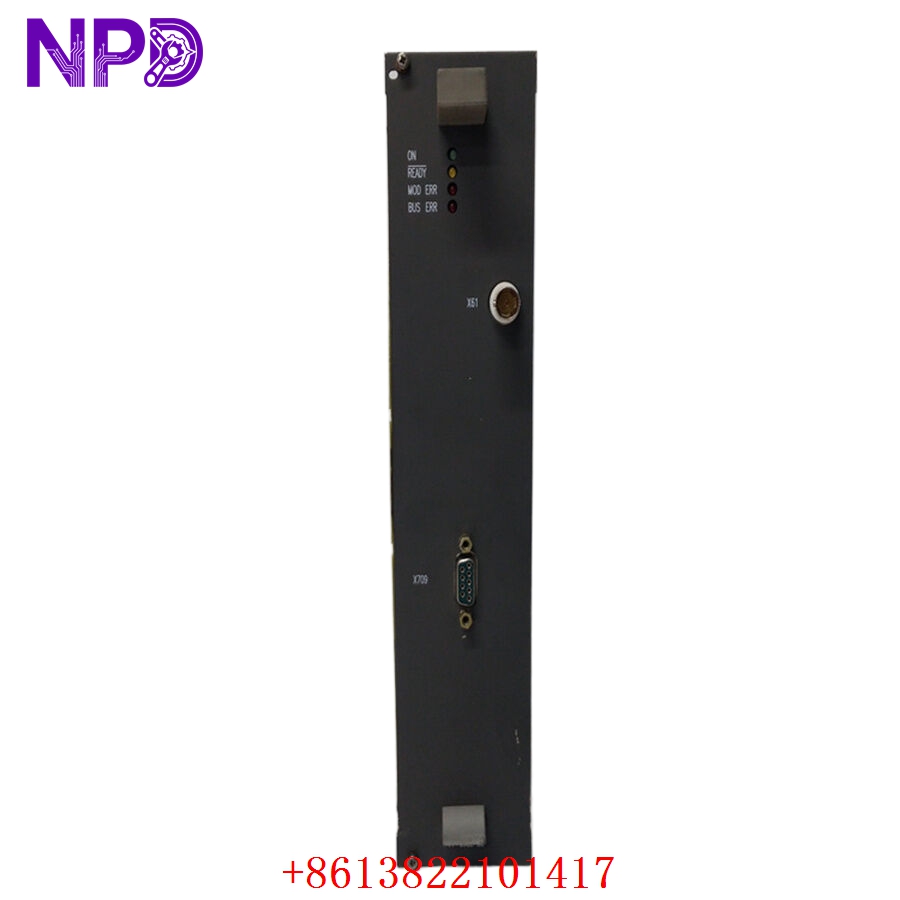

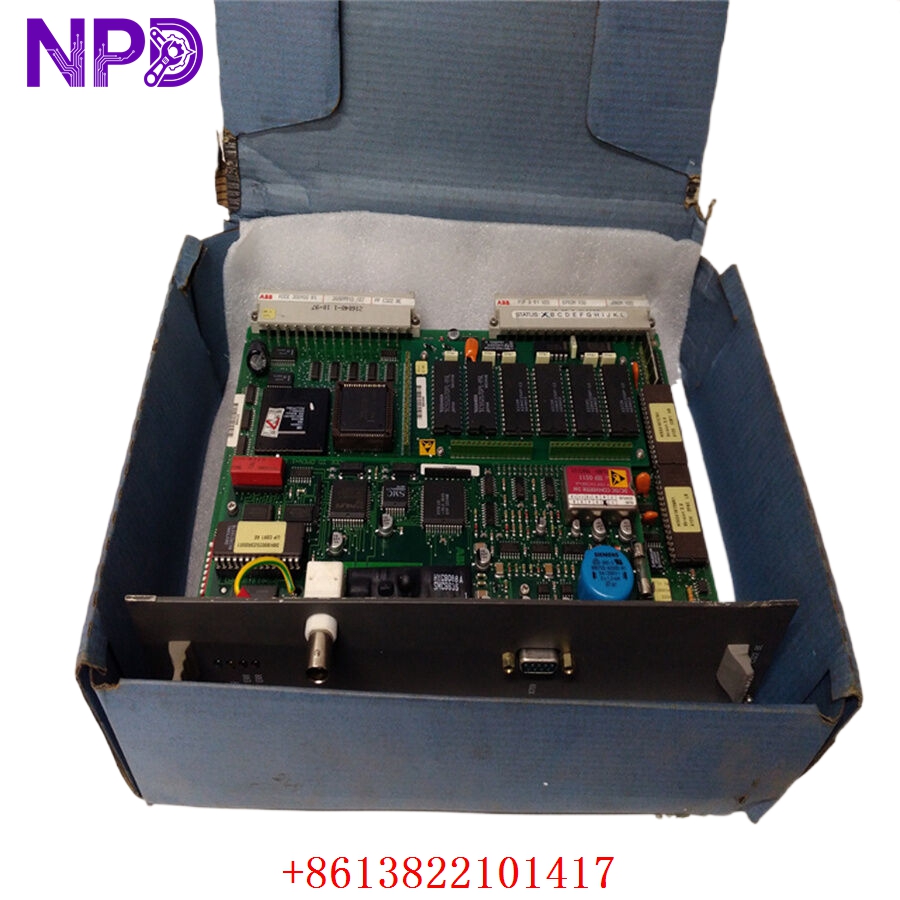

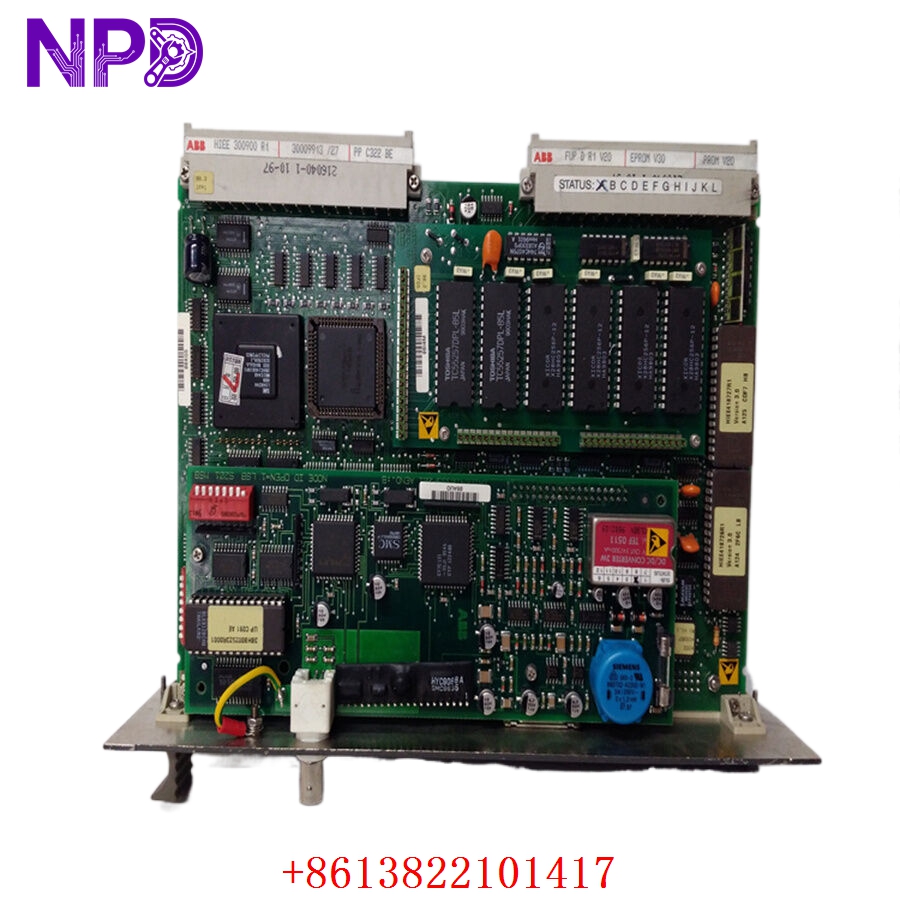

ABB PPC322BE HIEE300900R1
ABB PPC322BE HIEE300900R1
ABB PPC322BE HIEE300900R1
ABB PPC322BE HIEE300900R1
Product Operation Instructions
- Installation: Insert the processor board into the designated slot of the control subrack. Ensure the module is aligned with the backplane connectors to avoid pin damage. Secure the front panel screws to provide a consistent ground connection.
- Fiber Optic Connection: Connect the fiber optic cables to the designated TX/RX ports. Handle fiber ends with care and use dust caps when not connected to maintain signal integrity.
- Firmware Loading: Firmware is typically loaded via a specialized service tool. Ensure the version matches the parameters of the specific excitation system to prevent logic mismatches.
- Commissioning: Use ABB’s Control Builder or relevant service software to monitor the board’s status. Verify that the “Run” or “Status” LEDs indicate active processing before placing the generator online.
- Handling Precautions: This board contains highly sensitive CMOS components. Always wear an ESD (Electrostatic Discharge) wrist strap when handling the board outside of its protective shielding.
Q&A: Common Questions
Q: Can the PPC322BE be used as a general-purpose PLC? A: No. While it is a powerful processor, it is a proprietary board designed specifically for ABB’s high-power electronics platforms and requires specific system software to function.
Q: What is the significance of the fiber optic ports on this board? A: Power electronics environments generate intense electromagnetic interference (EMI). Fiber optics provide galvanic isolation and immunity to this noise, ensuring the control signals remain clean.
Q: Is the HIEE300900R1 interchangeable with other PPC series boards? A: Not directly. While they may look similar, the hardware revision (BE) and the HIEE part number define specific memory layouts and processor speeds. Always verify the full part number for compatibility.
