Description
The ABB PPC380AE01, identified by the part number HIEE300885R1, is a high-performance processor module specifically designed for the ABB AC 800PEC (Process Effectiveness Controller) system. This unit acts as the “brain” of the controller, combining the high-speed processing power required for power electronics with the robust control logic needed for industrial processes. It is a critical component in excitation systems (such as UNITROL), high-power rectifiers, and wind power converters, providing deterministic control and advanced communication capabilities.
Technical Specifications and Datasheet
- Product Model: PPC380AE01
- Part Number: HIEE300885R1
- Manufacturer: ABB
- Control Platform: AC 800PEC
- Processor Architecture: PowerPC
- Communication Ports: Fiber optic links for fast I/O, Ethernet, and RS-232/485
- Operating Voltage: 24 VDC
- Cooling: Passive heat sink
- Dimensions: 180 mm x 120 mm x 40 mm
- Weight: 0.85 kg
- Country of Origin: Switzerland
- Operating Temperature: 0 to +55°C
Application Areas
The PPC380AE01 is utilized in demanding power electronics applications where millisecond-level response times are required:
- Excitation Systems: Managing the field current in large synchronous generators (UNITROL 6000 series).
- Static Frequency Converters (SFC): Controlling power flow for grid stability and heavy industrial drives.
- Marine Propulsion: Governing the power distribution and motor control in electric ships.
- Renewable Energy: Main controller for large-scale wind turbine converters and solar inverters.

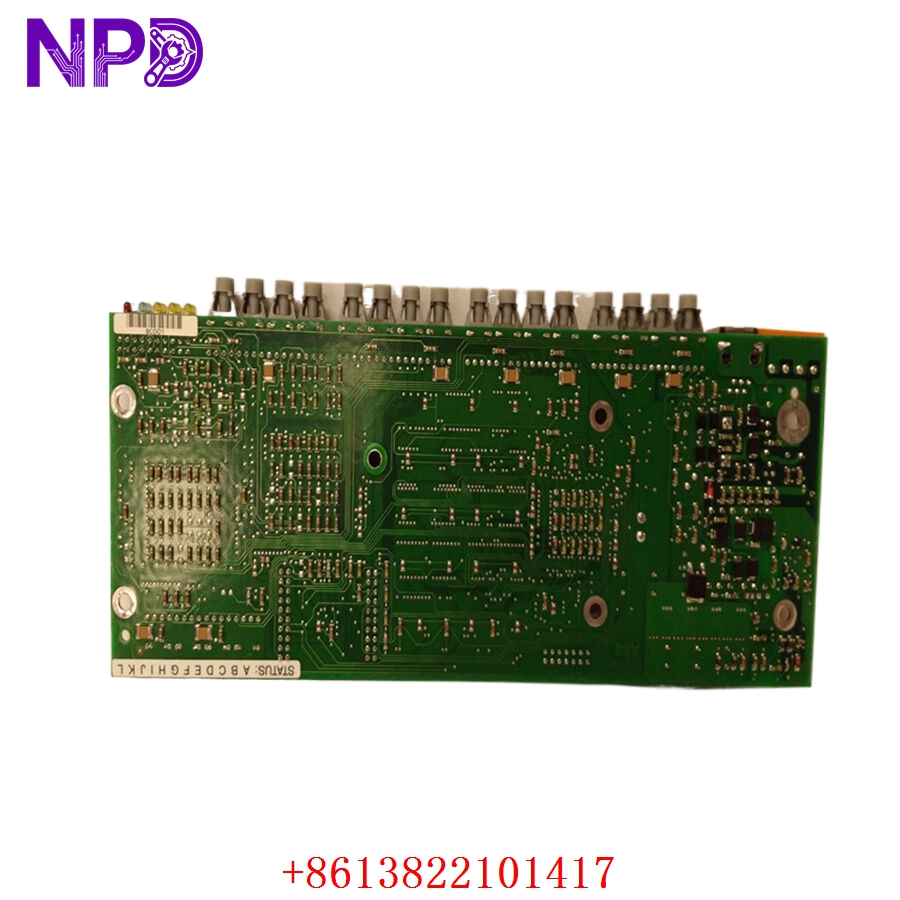

ABB PPC380AE01 HIEE300885R1

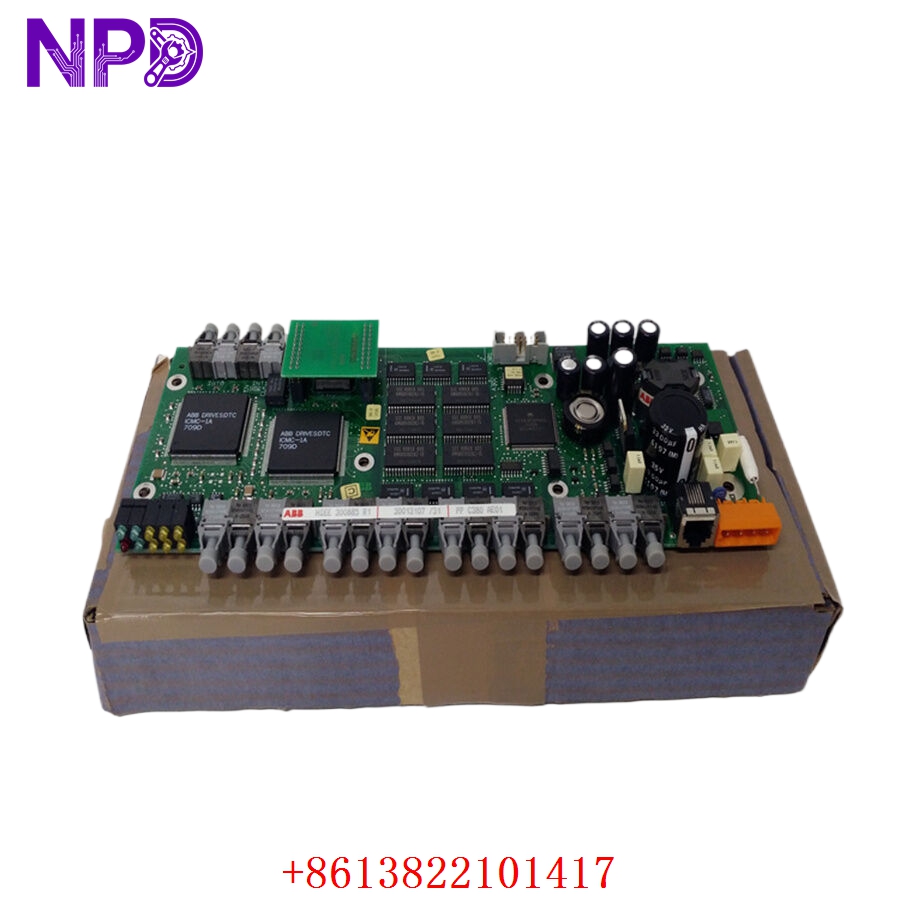

ABB PPC380AE01 HIEE300885R1
ABB PPC380AE01 HIEE300885R1
Product Instructions
Installation of the PPC380AE01 must be performed within an AC 800PEC subrack. The module features high-speed fiber optic interfaces for communication with remote I/O; ensure these cables are handled with care and follow the minimum bend radius to avoid signal loss. Configuration and programming are achieved using the ABB Control Builder M tool or specialized MATLAB/Simulink integration for high-speed control loops. Front-panel LEDs provide diagnostic information: a green “Power” LED indicates the unit is energized, while a red “Fault” LED signals a hardware failure or watchdog timeout. Always ensure the subrack is properly grounded to protect the PowerPC circuitry from industrial transients.
Frequently Asked Questions (Q&A)
Q: Is the PPC380AE01 compatible with the earlier AC 800PE systems? A: The PPC380 series is a direct evolution of the AC 800PE. While firmware must be carefully checked for compatibility, it is designed to replace and enhance the performance of earlier processor generations in the same control family.
Q: What is the significance of the HIEE300885R1 part number? A: This is the specific manufacturing and revision code used by ABB. When ordering spares, matching this exact string ensures the correct hardware revision for your specific control software.
Q: Can this module be hot-swapped? A: No. Power to the AC 800PEC subrack should be disconnected before removing or inserting the PPC380AE01 to prevent electrical damage to the backplane connectors.
