Description
The ABB PPC380AE102 (HIEE300885R0102) is a Processor Control Module designed for ABB industrial automation and power control systems. It belongs to the ABB PPC380 series and provides high-speed processing, real-time control execution, system communication, and diagnostic functions for demanding industrial applications.
The PPC380AE102 is used as a central processing unit within compatible ABB control architectures, supporting applications such as power generation control, excitation systems, industrial drives, and process automation systems. It manages control algorithms, signal processing, communication with I/O modules, and system monitoring functions.
This module is designed for long-term industrial operation and is commonly supplied as a maintenance replacement spare for existing ABB control installations where system availability and reliable operation are required.

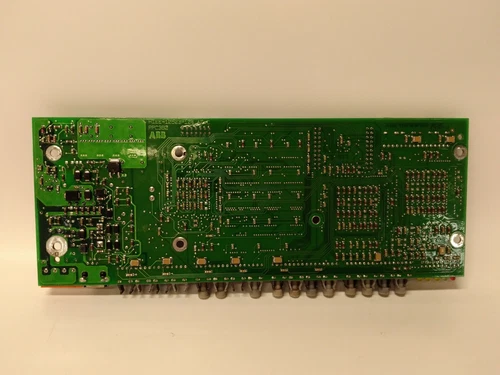

ABB PPC380AE102 HIEE300885R0102
🔹 Product Parameters Datasheet
| Parameter | Specification |
|---|---|
| Brand | ABB |
| Model | PPC380AE102 |
| Part Number | HIEE300885R0102 |
| Series | ABB PPC380 Control Module Series |
| Product Name | Processor Control Module |
| Origin / Place of Origin | Switzerland / ABB Manufacturing Network |
| Product Status | New Surplus / Tested Used / Refurbished Spare |
| Dimensions | Approx. 220 mm × 160 mm × 35 mm |
| Weight | Approx. 0.7–1.2 kg |
| Power Requirement | +5 VDC Backplane Power Supply |
| Processor Function | High-Speed Real-Time Control Processing |
| Mounting Type | ABB Rack / Control Cabinet Installation |
| Discontinued Status | Legacy Product, Available as Industrial Spare |
🔹 Technical Features
🔸 High-performance processor architecture for industrial control applications
🔸 Executes real-time control and regulation algorithms
🔸 Supports communication with ABB I/O and control system components
🔸 Provides system diagnostics and fault monitoring functions
🔸 Designed for continuous-duty industrial environments
🔸 Suitable for power electronics and automation applications
🔸 Modular rack-mounted design for easy maintenance
🔸 Supports integration into ABB control platforms
🔸 Used in mission-critical systems requiring high reliability
🔹 Common Questions & Answers
Q: What is the main function of ABB PPC380AE102?
A: The PPC380AE102 works as a processor control module, performing real-time calculations, control logic execution, communication management, and system diagnostics.
Q: Is PPC380AE102 a PLC CPU module?
A: It is not a standard PLC CPU. It is a dedicated ABB processor/control module designed for specialized industrial automation and power control systems.
Q: Which applications use this module?
A: It is commonly used in power generation, excitation control, industrial drives, process automation, and ABB control systems.
Q: What should be checked before replacement?
A: Confirm the exact part number, hardware revision, rack compatibility, firmware version, communication configuration, and connected I/O modules before installation.
Q: What are common failure symptoms?
A: Possible symptoms include controller startup failure, communication alarms, diagnostic errors, loss of control signals, or system initialization problems.
Q: Can PPC380AE102 replace another PPC380 module directly?
A: Replacement depends on the ABB system configuration, software compatibility, hardware revision, and application requirements.
