Description
The ABB PPC380AE102 (Part Number: HIEE300885R0102) is a high-performance Processor Module specifically designed for the UNITROL 6000 and MEGATROL excitation and static frequency converter (SFC) systems. It serves as the primary control board responsible for executing complex regulation algorithms and managing high-speed communication within the power electronics system.
Product Parameters (Datasheet)
- Model Number: PPC380AE102
- Part Number: HIEE300885R0102
- Processor Type: High-speed PowerPC architecture
- Flash Memory: Onboard storage for firmware and application parameters
- Interface Ports: * High-speed fiber optic links for drive communication
- RS-232/RS-485 for local maintenance and diagnostics
- Specialized system bus connectors for backplane integration
- Operating Voltage: 24 V DC (Internal supply from the backplane)
- Status Indicators: Multi-segment LED display and status LEDs for CPU health and fault codes
- Cooling: Passive heatsink (Fanless design)

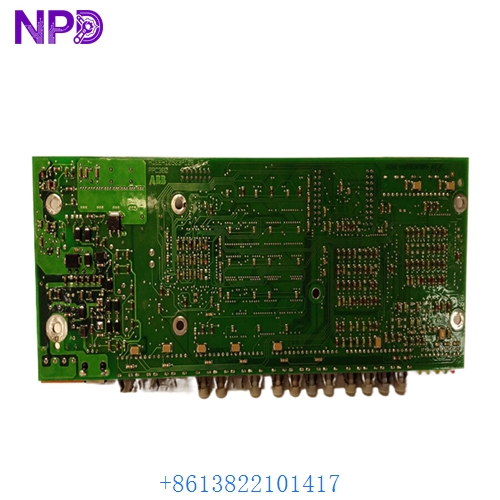

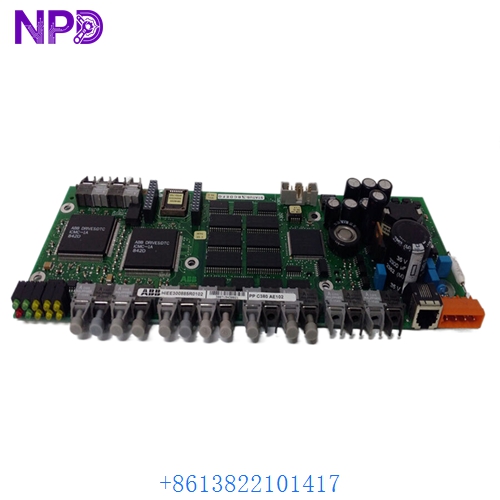

ABB PPC380AE102 HIEE300885R0102
ABB PPC380AE102 HIEE300885R0102
ABB PPC380AE102 HIEE300885R0102
Country of Origin
This power electronics control module is engineered and manufactured by ABB in Switzerland, adhering to the highest standards for global utility and power plant infrastructure.
Application Fields
The PPC380AE102 is a core component in large-scale power conversion and excitation systems:
- UNITROL 6000 Excitation: Providing precise voltage and reactive power regulation for large synchronous generators in nuclear and thermal power plants.
- MEGATROL Systems: Coordinating the starting and excitation for gas turbines and pumped storage plants.
- SFC (Static Frequency Converters): Managing the high-speed switching logic required to convert grid frequencies for specialized industrial motors.
- Hydroelectric Power: Controlling the excitation and voltage stability for high-inertia hydro-generators.
Product Usage Instructions
- Installation: The module must be inserted into the designated slot of the subrack. Ensure the module is fully seated into the backplane connectors and the front-panel locking screws are tightened.
- Fiber Optic Connections: Connect the fiber optic cables to the front-panel ports. These links are critical for low-latency communication with I/O modules and firing boards; ensure the connectors are clean and the bend radius is respected.
- Firmware Loading: Use the ABB Control IT or Excitation Control Terminal (ECT) software to download the specific project configuration. The firmware revision must match the system’s hardware grouping.
- Battery Maintenance: Check the onboard backup battery periodically. This battery ensures that the fault logger and real-time clock data are preserved during power cycles.
- Handling: This board contains highly sensitive electrostatic components. Always use an anti-static (ESD) wrist strap when handling the module or adjusting jumpers.
Product Technical Description
The PPC380AE102 is the computational heart of the UNITROL 6000 series. It utilizes a high-performance RISC processor to handle the demanding calculations required for Automatic Voltage Regulation (AVR) and Power System Stabilizer (PSS) functions. Technically, the module acts as a master controller that monitors generator voltage and current in real-time, calculating the required firing angles for the thyristor bridges. It features advanced Self-Diagnostics that can pinpoint internal hardware faults or external sensor failures instantly. The dual fiber optic ports provide a noise-immune interface for the distributed control architecture, allowing the processor to sit safely in a control cabinet while communicating with power modules located in electrically “noisy” areas.
Q&A (Common Questions)
- Q: Can I swap a PPC380AE101 with a PPC380AE102?
- A: While they belong to the same family, the “102” suffix typically indicates a hardware revision with different memory or clock speed. You must verify compatibility with your existing backplane and firmware version before attempting a swap.
- Q: What does the “HIEE” prefix indicate?
- A: HIEE is the standard internal prefix for ABB’s Swiss-manufactured excitation and power conversion electronics components.
- Q: My module shows a “CPU FAIL” LED; what is the first step?
- A: Check the 24V DC supply at the backplane first. If power is stable, try a hard reset. If the fault persists, it may indicate internal memory corruption or a hardware failure requiring factory repair.
- Q: Is this board used in the older UNITROL 5000?
- A: The PPC380 series is primarily associated with the UNITROL 6000. The UNITROL 5000 typically uses the PSR or UC series boards.
Similar Model Recommendations
- ABB PPC322BE: Related processor module for specialized drive applications.
- ABB COB371A: Communication board often used alongside the PPC series.
- ABB CIO331: I/O interface board for UNITROL 6000.
- ABB UNS0881A: Power supply module for excitation racks.
- ABB HIEE300885R0101: The earlier revision (AE101) of this processor.
For technical manuals or to request a quote for the ABB PPC380AE102, please contact our excitation systems specialists.
