Description
The ABB PPCC322BE (Part Number: HIEE300900R0001) is a high-performance processing and control module designed for the AC800PEC (Power Electronics Controller) system. This module is the “brain” of the controller, specifically engineered for the high-speed requirements of power electronics applications, such as large-scale excitation systems and frequency converters.
Product Parameters (Datasheet)
- Model Number: PPCC322BE
- Part Number: HIEE300900R0001
- System Family: AC800PEC
- Processor: High-speed PowerPC architecture
- Memory: Integrated Flash and RAM for real-time logic execution
- Communication: * 4 x High-speed fiber optic ports (Link communication)
- Local bus interface for backplane communication
- Scan Time: Capable of sub-millisecond task execution (Fast Loop)
- Operating Voltage: 24 V DC (Internal via rack)
- Status Indicators: Multi-color LEDs for Run, Fault, and Link status

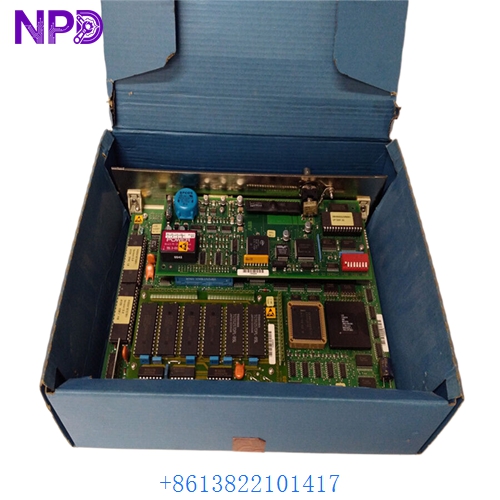

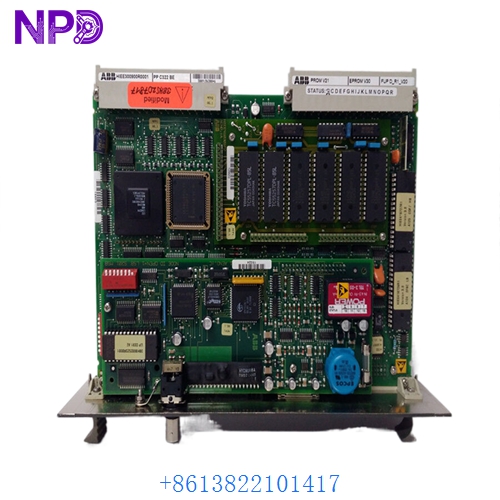

ABB PPCC322BE HIEE300900R0001
ABB PPCC322BE HIEE300900R0001
ABB PPCC322BE HIEE300900R0001
Country of Origin
This advanced control module is engineered and manufactured by ABB in Switzerland, adhering to the highest standards for power generation and industrial electronics.
Application Fields
The PPCC322BE is used in specialized high-power systems where standard PLCs are too slow:
- UNITROL 6000 Excitation Systems: Providing digital control for large synchronous generators in hydroelectric and nuclear power plants.
- MEGADRIVE-LCI: Controlling high-power Load Commutated Inverters for large motor starts and variable speed drives.
- SFC (Static Frequency Converters): Managing energy transfer between different grid frequencies (e.g., 50 Hz to 16.7 Hz for railways).
- High-Power Rectifiers: Controlling DC output for industrial electrolysis and aluminum production.
- Grid Stabilization (STATCOM): Managing reactive power compensation in utility-scale electrical grids.
Product Usage Instructions
- Chassis Integration: Carefully slide the module into its assigned slot in the AC800PEC subrack. Ensure the rear connectors are perfectly aligned before applying firm pressure.
- Fiber Optic Cabling: Connect the fiber optic links to secondary I/O modules or peer controllers. These links are critical for the “Fast Loop” control signals.
- Software Engineering: Use the ABB Control IT or PEC Tool software environment to develop and download the control logic.
- Synchronization: Verify that the “Sync” LED is active if the module is part of a redundant pair or a synchronized grid application.
- Cooling: Ensure the rack’s forced-air cooling system is functioning properly, as the high-speed processor generates significant heat during continuous operation.
Product Technical Description
The PPCC322BE is designed to bridge the gap between digital control logic and high-frequency power switching. Technically, it handles both the Slow Loop (process control/HMI tasks) and the Fast Loop (firing pulse patterns and rapid protection logic). The “BE” revision features enhanced computational power and improved communication stability over earlier “A” versions. By utilizing fiber optic ports, the module achieves complete galvanic isolation from the power stage, which is essential when controlling systems operating at several kilovolts. This architecture allows the controller to react to grid faults or load changes in microseconds, preventing damage to the power semiconductors (IGBTs or Thyristors).
Q&A (Common Questions)
- Q: Is the PPCC322BE compatible with the older PPCC322AE?
- A: In most cases, the “BE” is a direct replacement for the “AE,” but a firmware update and software recompilation in the PEC Tool are often required to ensure full functionality.
- Q: What does a red “FAULT” LED indicate on this module?
- A: This typically indicates a hardware self-test failure, a memory checksum error, or a total loss of communication with the secondary I/O rack.
- Q: Can this module run standard AC800M “Control Builder” code?
- A: No. While they share some ABB heritage, the AC800PEC (PPCC series) uses a specialized engineering environment tailored for power electronics, distinct from the AC800M (PM series).
- Q: Does this module contain an internal battery?
- A: Most PPCC modules use non-volatile flash memory for the application program, but some revisions utilize a small lithium battery or supercapacitor for the real-time clock (RTC).
Similar Model Recommendations
- ABB PPCC321B: A variant with different memory or communication port configurations.
- ABB PCD231B: Communication interface board often used with the PPCC series.
- ABB UNS0863A: Power supply unit for the PEC subrack.
- ABB PP D113: Alternate processor module for certain AC800PEC versions.
- ABB UNITROL 6000: The complete control system where this module is most frequently found.
