Description
- Model: PPD113B01-10-150000
- Part Number: 3BHE023784R1023
- Brand: ABB (Switzerland)
- Series: AC 800PEC / UNITROL 6000 / PCS6000
- Core Function: High-Speed Control and Processing Module
- Product Type: Power Electronics Controller Module
- Key Specs: 24 VDC Supply Fiber Optic Communication FPGA Processing SIL Rated
ABB UFC762AE101 3BHE006412R0101
Key Technical Specifications
- Processor Type: Dual-core architecture combining a RISC processor for slow tasks (PLC logic) and an FPGA for fast tasks (PWM and converter control).
- Architecture: Part of the AC 800PEC (Power Electronics Controller) high-end family.
- Communication Interfaces:
- High-speed fiber optic ports for interface with I/O and measuring units.
- Integrated Ethernet for DCS communication and engineering tools.
- Serial diagnostic ports.
- Cycle Time: Capable of execution times in the microsecond range (<100μs).
- Input Power: 24 VDC nominal.
- Operating Temperature: 0∘C to +55∘C (Industrial grade).
- Software Compatibility: Configurable via ABB Control Builder M and PECTool.
Application Scenarios & Pain Points
The PPD113B01-10-150000 is a specialized control module used in ABB’s high-power conversion systems. It is essentially the “intelligence” inside the UNITROL 6000 excitation system or large-scale wind/solar power converters. It is designed to handle the complex mathematical calculations required to maintain grid synchronization and firing pulse accuracy for high-power thyristors or IGBTs.
Typical Application Scenarios:
- UNITROL 6000 Excitation The primary logic solver for controlling field current in large utility-scale synchronous generators.
- Static Synchronous Compensators (STATCOM) Managing reactive power injection into the grid to stabilize voltage levels.
- High-Power Rectifiers Used in aluminum smelting and electrochemical plants where precise DC current control is vital.
- Grid-Scale Energy Storage Acting as the master controller for Battery Energy Storage Systems (BESS) using the PCS6000 platform.
Case Study: The “Grid Sync” Failure
Background: A large wind farm substation was experiencing frequent “Converter Trip” errors during high-wind events, causing significant loss of generated revenue.
The Problem: The existing controller was suffering from intermittent latency in the optical communication link. The PPD113B01 module was failing to calculate the phase-locked loop (PLL) fast enough to keep up with grid frequency fluctuations, leading to a protective shutdown.
The Solution: We supplied a replacement 3BHE023784R1023 module. Because this specific revision features improved FPGA gate density and faster optical transceivers, the control loops became significantly more stable.
Result: The substation remained online throughout the remainder of the storm season, achieving a 99.8% uptime improvement.

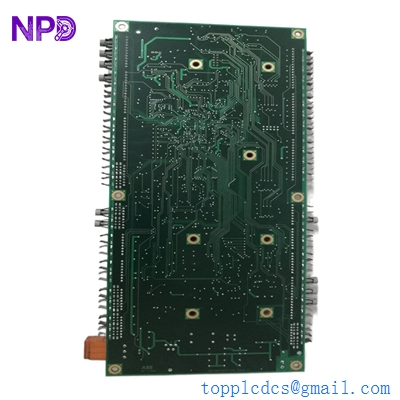

ABB UFC760BE43 3BHE004573R0043
Similar Product Recommendations
The PPD113 series has several sub-variants distinguished by the numeric suffix (e.g., -10-150000). These suffixes often indicate specific memory layouts or pre-loaded firmware frameworks.
| Model Number | Compatibility | Main Difference | Integration Note |
| PPD113B01-10-150000 | ✅ Direct | 3BHE023784R1023 | Standard for high-speed converter control. |
| PPD113B01-10-140000 | ❌ Incompatible | Lower memory/logic spec | Do not swap unless firmware allows. |
| PPD512 | ⚠️ Related | Older hardware gen | Requires significant software migration. |
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance | Action |
| “System Error” LED | Firmware Corruption | ✅ High | Re-image the module using ABB PECTool via the Ethernet port. |
| Optical Link Failure | SFP/Fiber Fault | ✅ High | Inspect fiber tips for dust; verify SFP modules are seated. |
| Erratic Control Loops | FPGA Logic Fault | ⚠️ Medium | Verify the application software cycle time settings. |
| No Power (Blank) | DC/DC Internal Fault | ⚠️ Medium | Check 24V input; if OK, the internal power stage has failed. |
Technical SOP & Quality Guarantee
Power electronics modules require advanced testing due to their high-speed signal processing:
- Fiber Optic Throughput: We perform a bit-error-rate (BER) test on all optical ports to ensure zero data jitter.
- Processor Load Test: We run a benchmark application to verify that both the RISC core and the FPGA are executing at factory speeds.
- Real-Time Sync: We verify the module’s ability to synchronize with a master clock via Ethernet (PTP/NTP) or optical link.
- Analog/Digital I/O Verification: We test the backplane interface pins for signal integrity and electrical isolation.
Engineer’s Pro-Tip: When replacing a PPD113B01, ensure you match the firmware version exactly. ABB UNITROL and PCS systems are highly sensitive to software revisions; even a minor mismatch between the PPD module and the I/O interface boards can cause a system-wide communication lockout.
