Description
1. Product Description

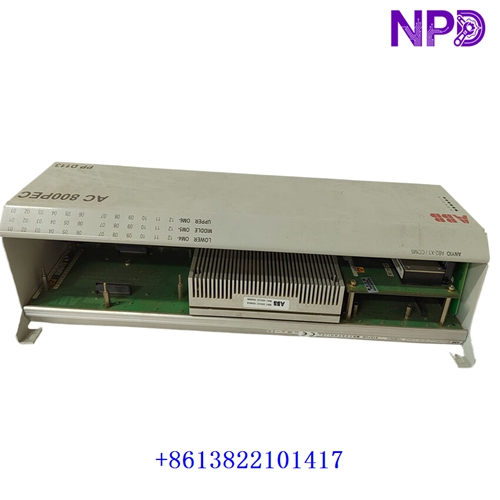

The ABB PPD113B01-10-150000, associated with order code 3BHE023784R1023, is a controller module in the ABB AC 800PEC high-performance control family. It is designed for demanding power-electronic applications, including generator excitation systems, high-power converters, industrial drives, and related power-control equipment. The PP D113 controller processes real-time control tasks and interfaces with compatible system hardware and I/O. The exact hardware configuration and application depend on the installed variant. Confirm the complete order code, revision, and existing system configuration before selecting a replacement.
PPD113B01-10-150000
2. Product Parameters and Datasheet
– Brand: ABB
– Model: PPD113B01-10-150000
– Order Code: 3BHE023784R1023
– Series: AC 800PEC
– Product Name: High-Performance Controller / Processor Module
– Controller Designation: PP D113
– Processor: High-performance RISC processor; exact configuration depends on hardware revision
– Processor Speed: Approximately 750 MHz reported for the PP D113 family; verify the specific unit documentation
– Interfaces: Configuration-dependent AnyIO and serial/communication interfaces
– I/O Expansion: Compatible optical-fiber I/O interfaces, depending on system configuration
– Engineering Environment: ABB AC 800PEC engineering tools
– Typical Applications: Generator excitation, power converters, and high-power drive control
– Mounting: Compatible AC 800PEC backplane or subrack
– Power Requirements: System/backplane supply; verify the applicable hardware manual
– Dimensions: Verify against the product drawing
– Weight: Approximately 2.63 kg reported by supplier listings; confirm the supplied unit
– Country of Origin: Verify from the product label and shipping documents
– Product Status: Confirm current lifecycle status and availability with ABB or the supplier
– Discontinued: Not confirmed; check current ABB lifecycle documentation
3. Recommended ABB Models
– PPD113B01-25-111000 — Related PP D113 controller variant; verify configuration before substitution.
– PPD113B03 — Related AC 800PEC controller-family designation; confirm exact order code.
– PPD512 — Related AC 800PEC processor/module family; application compatibility must be checked.
– AC 800PEC backplane — Compatible mounting and system interconnection hardware, selected by system configuration.
– PM866 — AC 800M controller for different compatible ABB control-system applications; not a direct substitute.
– PM891 — High-performance AC 800M controller; not a direct replacement without engineering validation.
– PM861A — AC 800M controller for compatible system configurations.
– CI854A — PROFIBUS-DP interface for supported ABB systems.
– CI867K01 — Modbus TCP interface for supported AC 800M systems.
– CI853K01 — Serial communication interface for supported AC 800M systems.
– AI810 — S800 analog input module.
– AO810 — S800 analog output module.
– DI810 — S800 digital input module.
– DO810 — S800 digital output module.
– UNITROL 6000 — ABB excitation-system family for generator-control applications; system-level compatibility must be confirmed.
Important: PPD113B01-10-150000 is a controller/processor module, not a standard AC 800M analog-output module. Match the complete part number, hardware revision, interfaces, and engineering configuration before ordering.
