Description
🔹 Product Overview
The ABB REC670 1MRK004814-AC is a Relion 670 series Bay Control Unit designed for control, monitoring, interlocking, and automation functions in medium- and high-voltage substations. The REC670 integrates bay-level control functions for circuit breakers, disconnectors, and related switchgear while providing communication with station-level automation systems. Available documentation identifies the REC670 as a pre-configured bay-control IED within the Relion 670 family.
The unit supports configurable binary inputs and outputs and can be integrated into substation communication architectures using protocols such as IEC 61850 and IEC 60870-5-103. The exact I/O configuration and communication options depend on the ordered hardware configuration.

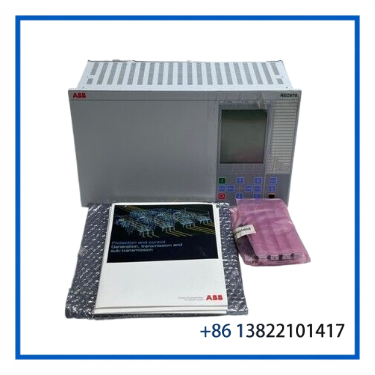

REC670 1MRK004814-AC
🔧 Key Features
• ABB Relion 670 series Bay Control Unit
• Model: REC670
• Ordering number: 1MRK004814-AC
• Bay control and monitoring functions
• Circuit-breaker and disconnector control
• Configurable binary I/O
• Interlocking and switching control
• Event and disturbance recording capabilities
• IEC 61850 communication support
• Suitable for substation automation and retrofit applications
🔑 Product Keywords
REC670, 1MRK004814-AC, ABB REC670, Relion 670, Bay Control Unit, ABB Bay Controller, Substation Automation IED, IEC 61850 Bay Control.
🔗 Product Keyword Link: ABB REC670 1MRK004814-AC Bay Control Unit
📋 Product Datasheet
| Parameter | Value |
|---|---|
| Brand | ABB |
| Model | REC670 |
| Ordering Number | 1MRK004814-AC |
| Series | Relion 670 |
| Product Name | Bay Control Unit |
| Device Type | Intelligent Electronic Device (IED) |
| Communication | IEC 61850 / IEC 60870-5-103; configuration dependent |
| Auxiliary Supply | Wide-range AC/DC, configuration dependent |
| Binary I/O | Configurable binary inputs and outputs |
| Weight | Approx. 1.84 kg for frame-only configuration* |
*A current marketplace listing for the same ordering number identifies a frame-only REC670 unit with a stated weight of approximately 1.84 kg.
⚙️ Application
The REC670 is designed for bay-level control in electrical substations. Typical functions include circuit-breaker and disconnector operation, interlocking, synchronization-related control, status monitoring, alarm handling, and communication with higher-level station-control systems. Its modular I/O and communication configuration allow the device to be adapted to different substation architectures.
🛠️ Replacement Notes
Before installation, verify the complete REC670 1MRK004814-AC ordering number, hardware configuration, software revision, auxiliary supply range, I/O configuration, communication interfaces, and mounting arrangement. Current listings for this ordering number show different commercial configurations, including complete bay-control equipment and frame-only units, so the physical configuration should be confirmed before purchase.
📦 Condition
The supplied listing identifies the product as an ABB REC670 Bay Control Unit. The exact condition, software revision, accessories, and installed option modules should be confirmed from the individual unit before installation.
