Description

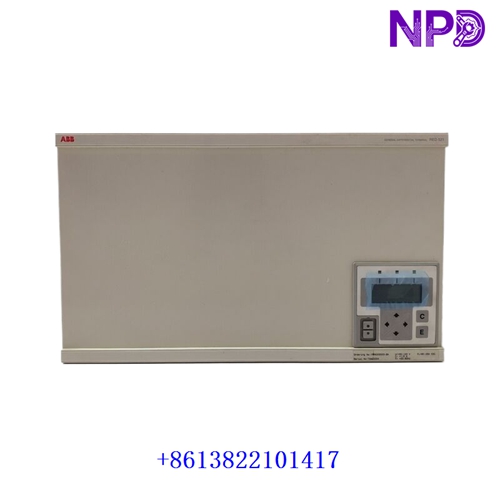

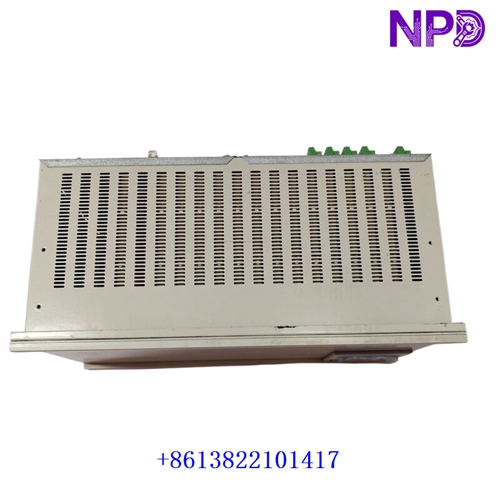

The ABB RED521 (Order / Catalog Number: 1MRK002003-BA) is a numerical, phase-segregated Line Differential Protection Intelligent Electronic Device (IED) belonging to ABB’s 500 Series protection platform (now supported by Hitachi Energy). Engineered for overhead transmission lines, underground cable feeders, and multi-terminal power circuits, the RED521 provides high-speed differential fault clearance (operating times down to ~10 ms), full-scheme backup distance protection, and integrated bay control and monitoring.
Key Specifications & Identification
| Attribute | Details |
| Manufacturer | ABB / Hitachi Energy |
| Model Family | RED521 (ABB 500 Series Platform) |
| Order Number | 1MRK002003-BA |
| Primary Function | High-speed, phase-segregated current differential line protection |
| CT Input Capacity | 6 three-phase CT input channels (18 current inputs total) |
| Operating Speed | Approximately 10 ms operate time for internal faults |
| Backup Protection | Full-scheme 3-zone distance protection (21), directional overcurrent, earth fault |
| Protection Comms | Fiber-optic interface operating under the IEEE C37.94 standard |
| Fieldbus Protocols | SPA-bus, LON-bus, IEC 60870-5-103 |
Primary System Functions
- Phase-Segregated Differential Protection: Continuously compares phase currents measured across local and remote line terminals. Features charging-current compensation and high sensitivity to resistive ground faults while maintaining immunity to heavy CT saturation.
- Multi-Breaker & Multi-Terminal Schemes: Equipped with six 3-phase CT input groups to directly handle 1.5-breaker, double-breaker, ring-bus, or 3-to-5 terminal transmission line topologies without external current summation units.
- Parallel Distance Backup Protection: Integrates a 3-zone, full-scheme distance protection algorithm that operates in parallel or automatically takes over if the primary inter-terminal communication channel fails.
- Inter-Terminal Signaling & Control: Transmits up to 8 binary intertrip signals, auto-reclosing sync-check states, and time-synchronized disturbance record data across optical links.
Servicing & Handling Guidelines
- CT Secondary Shorting Safety: High inductive secondary voltages occur if a CT loop is opened under load. Always engage CT shorting links on the terminal blocks prior to extracting or servicing the relay.
- Fiber-Optic Link Quality: Clean and verify all IEEE C37.94 optical fiber connectors. Excessive optical signal attenuation or high propagation delay jitter will trigger channel supervision alarms and block differential tripping.
- Configuration & Event Backup: Extract and archive protection setting files (
.PDCfiles) and disturbance records using ABB CAP 551 / PCM600 tools before updating firmware or replacing hardware modules. - Auxiliary Power Isolation: De-energize station battery DC power feeds (e.g., 110–250 V DC or 24–60 V DC depending on power supply module variant) before making or breaking rear terminal connections.
