Description
- Model: REF542plus (often written as REF542+)
- Brand: ABB
- Series: Relion / Multifunctional Protection and Control Unit
- Core Function: Combined protection, control, measurement, and monitoring for MV switchgear.
- Product Type: Digital Feeder Terminal / Protection Relay
- Key Specs: Modular hardware, DSP-based processing, supports various communication protocols (Modbus, IEC 61850, LON, SPA).
- Nominal Frequency: 50/60 Hz (Software selectable)
- Analog Inputs: Up to 8 or 10 analog inputs for current and voltage transformers (CT/VT) or sensors (Rogowski coil/Voltage divider).
- Binary I/O: Modular expansion for digital inputs and power outputs (Sourcing/Sinking).
- HMI (Human Machine Interface): Detached or integrated LHMI with a large LC display and programmable pushbuttons.
- Protection Functions: Overcurrent (50/51), Earth fault (50N/51N), Differential, Over/Undervoltage (27/59), and Frequency protection (81).
- Communication: Multi-protocol support including IEC 61850, Modbus TCP/RTU, SPA-bus, and LON-bus.
- Power Supply: Wide range (48–265 V AC/DC or 24–48 V DC variants).
ABB REF542plus
Application Scenarios & Pain Points
The REF542plus is a “Swiss Army Knife” for medium voltage (MV) power systems. Unlike simple relays, it handles the logic for the entire switchgear bay, including interlocking and control of the circuit breaker. The biggest headache for maintenance teams is the Configuration Version. Because the REF542plus is highly modular, the internal “Application Configuration” (the .rpf or .rpu file) must match the physical hardware boards installed. If you swap a unit without transferring the software configuration, the relay will throw a “Hardware Mismatch” error and won’t close the breaker.
1. Medium Voltage Feeder Protection
Standard protection for incoming and outgoing feeders in utility and industrial substations.
2. Motor & Transformer Protection
Utilizing specialized thermal images and differential logic to protect high-value assets.
3. Power Quality Monitoring
Measuring harmonics and transients in real-time to ensure grid stability for sensitive industrial processes.
Case Study: The “Ghost Trip” on the Main Bus
Background: A manufacturing plant was experiencing intermittent trips on their 11kV incoming feeder. The REF542plus display showed “Trip,” but no specific fault code was recorded in the event log.
The Problem: The relay was over 15 years old. Our diagnostic showed that the Analog Input (AI) board had developed high-impedance drift on one phase of the Rogowski coil interface. To the relay, this looked like a sudden overcurrent spike, triggering an instantaneous trip even though the actual current was normal.
The Solution: We supplied a certified REF542plus with a fresh AI calibration. We used the REF542plus Configuration Tool to upload the customer’s original logic. We specifically ensured the “Sensor Type” settings matched their existing Rogowski coils, as the REF542plus is sensitive to these parameters.
The Result: The feeder has remained stable for over a year.
- Avoided Loss: Prevented a plant-wide blackout that would have cost the site approximately $80,000 per hour in lost production.
- Takeaway: In older REF542plus units, “phantom trips” are often hardware-based, not logic-based. Replacing the unit is faster than trying to recalibrate an aging AI card in the field.

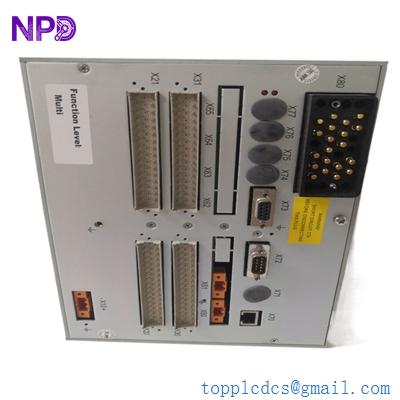

ABB SACE750090R0002 REF542plus
Compatible Replacement Models
| Original Model | Replacement Model | Compatibility | Key Differences | Workload |
| REF542 (Version 1) | REF542plus | ⚠️ Limited | Different mounting and wiring | Wiring migration |
| REF542plus (V3) | REF542plus (V4) | ✅ High | Newer firmware; faster processor | Plug & Play |
| Relion REF615 | REF542plus | ❌ No | Newer platform; different cutout | Not possible |
Engineer’s Advice: The REF542plus is identified by a long Type Code on the side label (e.g., REF542PLUS...). This code tells us exactly which cards are inside (CPU, Power, AI, Communication). Always provide the full type code. If you buy a unit with a different communication card (e.g., LON instead of Modbus), it will not talk to your SCADA system.
Troubleshooting Quick Reference
| Symptom | Possible Cause | REF542plus Related? | Quick Check | Action |
| “Green Ready” LED Off | Power Supply Failure | ✅ High | Check input voltage (X1 terminal) | Replace Power Module |
| “Self-Check” Fault | CPU/Memory Error | ✅ High | View error code on the LHMI | Replace CPU Module |
| No Communication | Protocol Mismatch | ✅ High | Check Baud rate and Address in HMI | Correct Settings |
| Input Values 0.00 | AI Board Calibration | ✅ High | Check sensor connections at X3 | Replace Analog Board |
Expert Maintenance Tips:
- Configuration Backups: ❗ Critical! You need the ABB REF542plus Configuration Tool and an optical/serial cable to save your settings. Do not wait for a failure; back up your logic today.
- The “Watchdog” Relay: The REF542plus has a physical watchdog contact. Wire this into your alarm system so you know immediately if the relay’s internal processor freezes.
- Battery Replacement: There is a lithium battery inside the CPU module for time-keeping and event memory. If your relay “forgets” the time after a power cycle, it’s time for a fresh battery.
