Description

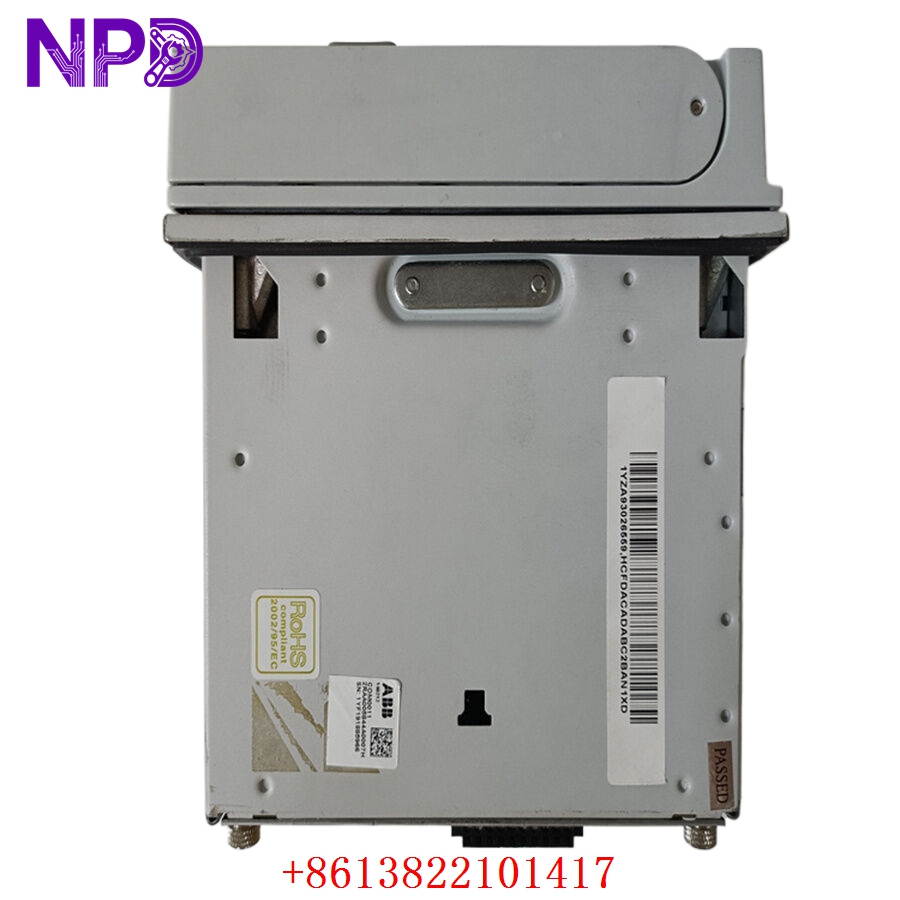

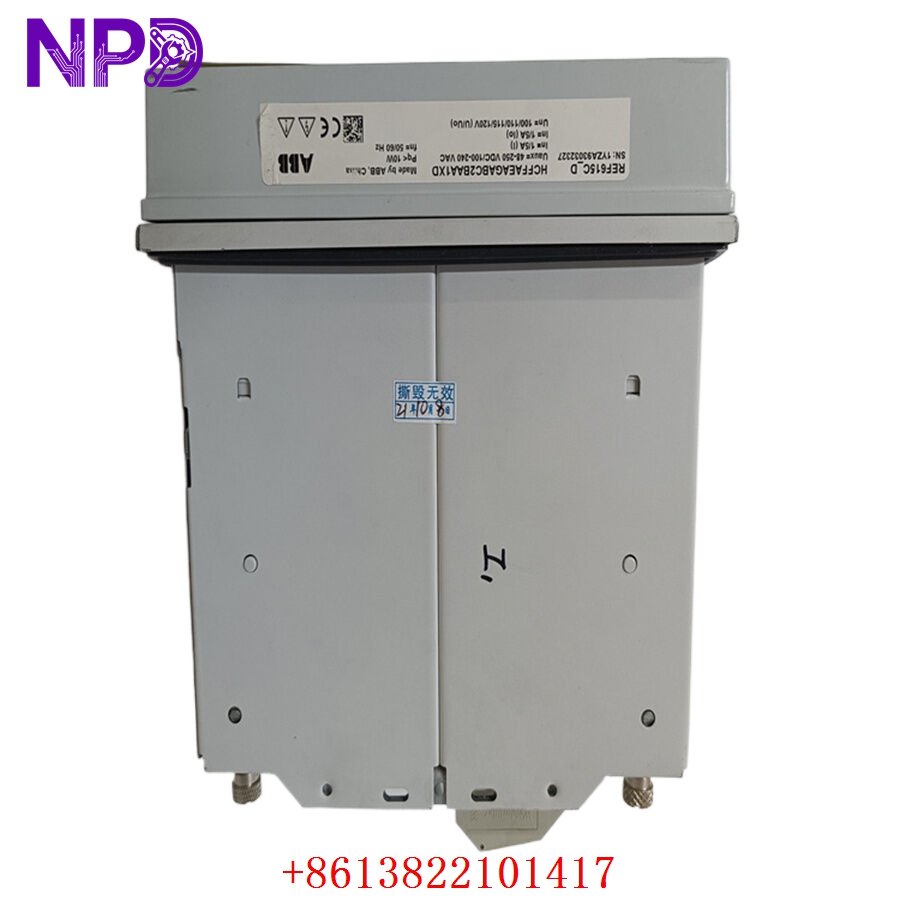

- 🔢 Model: REF615C-D (Ordering Code: HCFFAEAGABC2BAA1XD)
- 🏢 Brand: ABB
- ⛓️ Series: Relion® 615 Series (Feeder Protection)
- 💡 Core Function: Dedicated feeder protection, control, and monitoring for utility and industrial power systems
- 🛠️ Type: Protection Relay (IED)
- ⚡ Key Specs: Current-based protection, high-speed communication, IEC 61850 standard support
- 🛡️ Protection: Overcurrent, earth-fault, thermal overload, circuit breaker failure
- 📡 Communication: Supports IEC 61850, Modbus, DNP3, and Profibus
- 🖥️ Interface: Integrated HMI with graphical display for local metering and control
- ⚡ Auxiliary Power: Wide-range power supply (typically 48–250 V AC/DC)
- 🌡️ Operating Temp: -25°C to +55°C
- 🛡️ Protection Rating: IP54 (front panel)
- 🔌 Connections: Draw-out design for easy maintenance and testing
- 💡 Advanced Features: Power quality monitoring, fault location, and event recording
Installation & Configuration Guide
Phase 1: Preparation (20 mins)
⚠️ Safety First:
- Isolation: Isolate all CT (Current Transformer) and PT (Potential Transformer) circuits.
- 🧤 Use ESD-safe practices when handling the relay module.
- Verify that the auxiliary control power matches the voltage range indicated on the device label.
Phase 2: Mounting & Wiring (30 mins)
- 📥 Insertion: Slide the relay into the panel cutout. Ensure the mounting clamps are tightened to provide a secure, airtight seal.

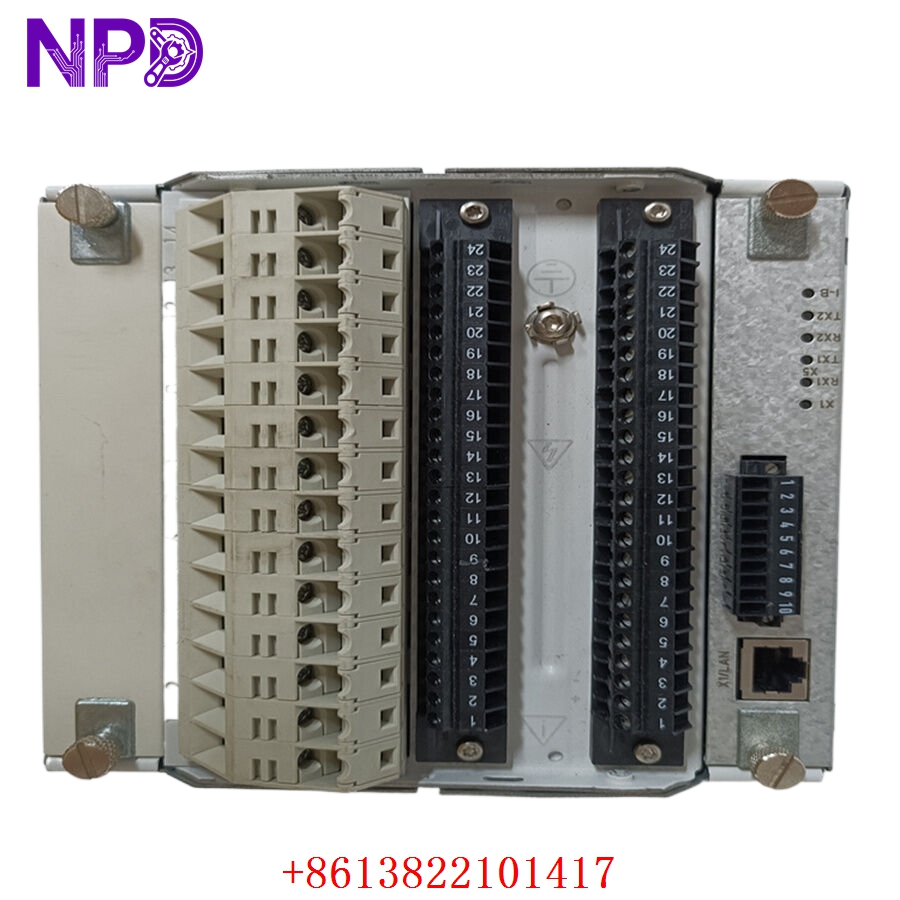

- 🔌 Wiring: Connect the CT/PT inputs to the rear terminal blocks. *
- 🔒 Grounding: Always ensure the relay chassis is connected to a low-impedance station ground to maintain EMC compliance.
Phase 3: Configuration & Commissioning (45 mins)
- 🟢 Power-Up: Connect auxiliary power. The front display should initialize and show the startup menu.
- 💻 Software Sync: Connect your PC via the front USB port or rear Ethernet port using PCM600 configuration software.
- ⚙️ Setting Parameters: Upload the configuration file (compiled to match your specific HCFFAEAGABC2BAA1XD order code features).
- 🔄 Testing: Perform a secondary injection test to verify that the relay trips correctly at the programmed current thresholds.
Frequently Asked Questions (FAQ)
Q: What does the long order code “HCFFAEAGABC2BAA1XD” mean? A: This code defines the specific hardware and software configuration (e.g., CT/VT input quantity, I/O count, communication protocols, and housing type). When ordering, this code must be exact to ensure the physical hardware is compatible with your pre-configured settings.
Q: Can I replace a legacy relay with this REF615? A: Yes, the REF615 is a popular choice for retrofitting aging electro-mechanical or early digital relays. However, always ensure your CT/PT secondary ratings match the input requirements of this module.
Q: Is the REF615 “draw-out” design reliable? A: Yes. The draw-out design is a standard feature of the Relion series, allowing for quick testing and replacement without disconnecting external field wiring. The relay automatically short-circuits the CT secondary circuits when withdrawn, preventing dangerous high-voltage buildup.
Q: Where can I get the latest GSD/CID files? A: All communication configuration files (SCL, GSD, etc.) are available on the ABB Relion portal or within the library of the PCM600 software tool.
Industry Application: Feeder Reliability
The REF615 is highly regarded for its ability to distinguish between harmless transient inrush currents and genuine feeder faults. In industrial settings, this significantly reduces nuisance trips and plant downtime. The built-in power quality monitoring also allows operators to see harmonic distortion, helping to predict transformer or motor failures before they occur.
