📋 Product Description
The ABB REF615C_C HCFFAEAGANB2BAN1XC is a numerical feeder protection and control intelligent electronic device (IED) in the ABB Relion® 615 series. It is designed for medium-voltage power distribution systems, providing feeder protection, electrical measurement, circuit-breaker control, and system monitoring. Protection functions can include phase overcurrent, earth-fault, voltage, frequency, and other application-dependent protections. Communication capabilities support integration with substation automation and supervisory control systems, including IEC 61850, Modbus, DNP3, and IEC 60870-5-103, depending on the configured hardware and firmware. The complete ordering code is important when selecting a replacement because auxiliary power, I/O, communication interfaces, and protection functions can vary by configuration.

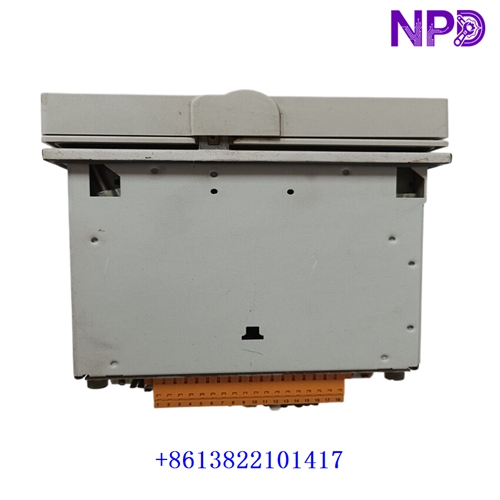

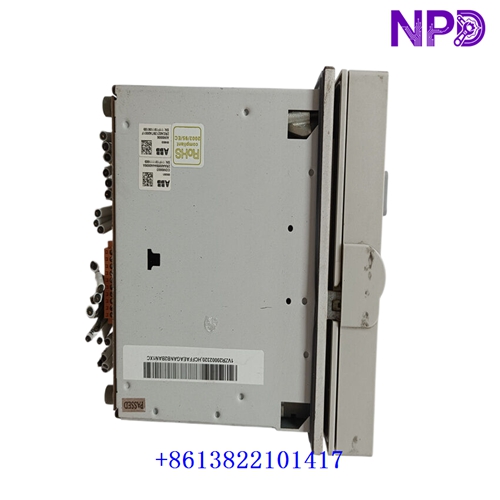

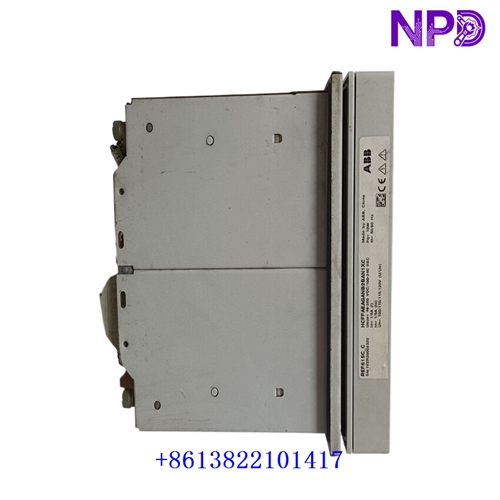

REF615C_C HCFFAEAGANB2BAN1XC
⚙️ Product Parameters & Datasheet
- Brand: ABB
- Model: REF615C_C
- Order Code: HCFFAEAGANB2BAN1XC
- Series: Relion® 615
- Product Name: Feeder Protection and Control Relay (IED)
- Application: Medium-voltage feeder and distribution circuit protection
- Place of Manufacture: Verify from the unit nameplate and manufacturer documentation
- Product Status: New Surplus / New – Open Box / Pre-Owned; confirm actual inventory condition
- Dimensions: Configuration and mounting dependent; consult the applicable ABB product guide
- Weight: Confirm for the supplied configuration
- Country of Origin: Verify from the individual unit label
- Power Requirements: Auxiliary supply depends on the ordered configuration; check the nameplate
- Protection Functions: Overcurrent, earth-fault, and other configurable functions depending on the selected configuration
- Communication Protocols: IEC 61850, Modbus, DNP3, IEC 60870-5-103, subject to configuration
- Engineering Software: ABB PCM600 for supported configuration and maintenance tasks
- Mounting: Panel-mounted relay with withdrawable plug-in unit design
- Discontinued: Confirm current lifecycle status with ABB using the complete order code
🔧 Recommended ABB Models
- REF615 — Feeder protection and control relay in the Relion 615 series.
- REF611 — Feeder protection relay for distribution networks.
- REF620 — Protection and control relay for feeder applications.
- REX615 — Protection and control relay for modern distribution applications.
- REM615 — Motor protection and control relay.
- RET615 — Transformer protection and control relay.
- RED615 — Line differential protection and control relay.
- REU615 — Voltage protection and control relay.
- REJ603 — Feeder protection relay for distribution applications.
- REF630 — Feeder protection and control IED.
- REF542plus — Protection and control unit for medium-voltage switchgear.
- REC615 — Voltage regulator and control relay for compatible applications.
- REL650 — Line distance protection and control IED family.
- REB670 — Busbar protection IED family.
- REX640 — All-in-one protection and control relay for power distribution applications.
These are related ABB protection and control products, not all direct replacements for the REF615C_C. Confirm the complete order code, auxiliary supply, CT/VT inputs, I/O configuration, communication interfaces, and protection settings before ordering or commissioning.
