Description

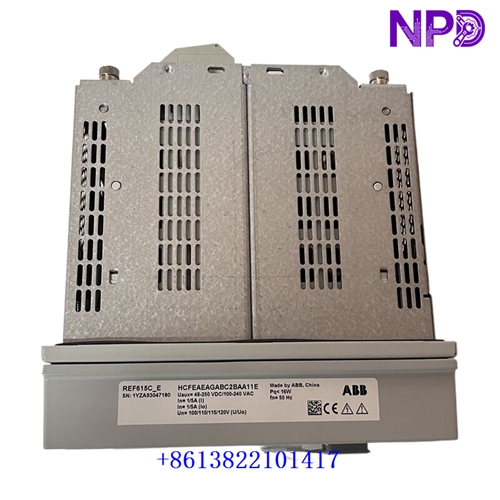

The ABB REF615C_E (Product Code: HCFEAEAGABC2BAA11E) is a dedicated digital feeder protection, control, measurement, and monitoring relay belonging to ABB’s Relion 615 series. It is engineered for utility and industrial power distribution systems, providing comprehensive protection for overhead lines and cable feeders in radial, looped, or meshed networks.
- Manufacturer: ABB
- Product Series: Relion 615 Series (REF615C_E)
- Configuration / Order Code: HCFEAEAGABC2BAA11E
- Product Type: Digital Feeder Protection and Control IED (Intelligent Electronic Device)
- Auxiliary Power Supply: Wide-range universal power supply (typically 24–265 V AC/DC)
- Communication Protocols: IEC 61850 (Editions 1 & 2 with GOOSE, HSR, and PRP redundancy support), Modbus, DNP3, IEC 60870-5-103, and IEEE 1588 v2 (PTP) time synchronization
- Physical Mounting: Flush-mounted or rail-supported switchgear enclosure format with a pluggable unit design
- Approximate Weight: ~0.5 kg to 4.0 kg (depending on housing and terminal configuration)
Inspection & Installation Guidelines
- Packaging Check: Unpack the relay carefully on an ESD-safe surface and verify that all protective cushioning and anti-stratic packaging are intact.
- Product Code Verification: Cross-reference the full order code (

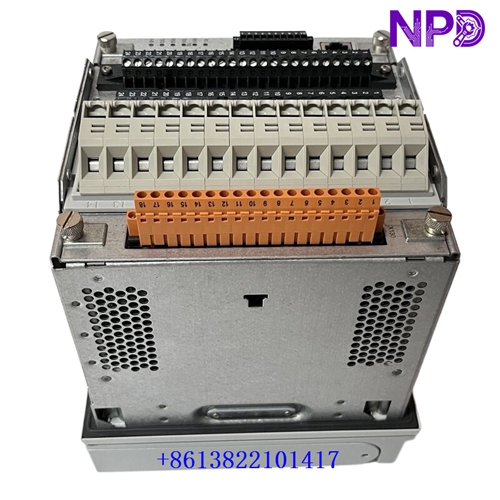

HCFEAEAGABC2BAA11E) against your substation design schedules and engineering blueprints to ensure correct hardware and software option matching. - Visual Inspection: Examine the front LCD display, HMI pushbuttons, optical communication ports, and rear terminal blocks for any transit impacts, debris, or bent pins.
- Secure Seating: Ensure the plug-in unit is fully inserted into its mounting sleeve and locked securely before energizing auxiliary power or field circuits.
Maintenance Recommendations
- Dust Management: Keep switchgear relay compartments clean and free from particulate buildup using dry, oil-free compressed air during scheduled outages.
- Terminal & Wiring Audit: Periodically check all rear screw or compression terminals to ensure wire harnesses and CT/VT leads remain tight against vibration.
- Firmware & Configuration Backup: Regularly back up relay configuration files, setting parameters, and disturbance records via the web-based HMI or PCM600 tool.
- Diagnostic Monitoring: Review self-diagnostic logs and status LEDs on the front panel regularly to confirm normal processor and communication health.
Troubleshooting & Common Faults
- Relay Fails to Power On: Verify that the incoming auxiliary control voltage matches the relay’s power supply rating and check input fuse continuity.
- Communication Link Drops: Inspect Ethernet or serial cabling, check network switch configurations, and verify protocol settings (such as IEC 61850 or Modbus parameters).
- Trip or Alarm Mismatch: Cross-reference active trip signals against event recorder logs and verify current/voltage transformer input scaling parameters.
Safety & Handling Precautions
- CT / VT Isolation: Never open-circuit secondary current transformer (CT) connections while primary power is active; always short-circuit CT terminals before servicing.
- Power Isolation: Disconnect auxiliary operating power and lock out associated switchgear circuits prior to removing or inserting the relay module.
- Qualified Personnel: Installation, configuration, and testing must be performed exclusively by certified electrical protection and substation commissioning engineers.
- ESD Protection: Always wear a properly grounded anti-static wrist strap when handling internal components or servicing the unit.
Frequently Asked Questions (Q&A)
- Q: What is the primary function of the ABB REF615C_E relay?
- A: It provides comprehensive protection, fault detection, and measurement for medium-voltage distribution feeders, including overcurrent, earth-fault, voltage, and frequency protection.
- Q: What communication redundancy standards does this variant support?
- A: It supports advanced substation automation networking protocols, including IEC 61850 with High Availability Seamless Redundancy (HSR) and Parallel Redundancy Protocol (PRP).
