Description
- Model: ABB REF615E-D (HBFDACADANB1BNN1XD)
- Part Number: 7700059450
- Brand: ABB (Finland)
- Series: Relion 615 Series – Feeder Protection and Control
- Core Function: Advanced protection, control, and monitoring for utility and industrial power distribution systems.
- Product Type: Numerical Feeder Protection Relay
- Key Specs: IEC 61850 Ed 1 & 2 | GOOSE Messaging | 5 CT / 3 VT Inputs
- Standard Configuration: E (Feeder protection with high-impedance busbar protection)
- Analog Inputs: 5 Current Transformers (CT) and 3 Voltage Transformers (VT)
- Binary I/O: 8 Binary Inputs (BI) and 10 Binary Outputs (BO)
- Communication Protocol: IEC 61850, Modbus RTU/TCP, DNP3, and IEC 60870-5-103
- Power Supply: 48–250 V DC or 100–240 V AC
- Housing Size: 4U high, 1/2 of 19″ rack width
- Protection Functions: Overcurrent (50/51), Earth Fault (50N/51N), Overvoltage (59), Undervoltage (27), and Frequency (81)
- Hardware Design: Draw-out plug-in unit for easy maintenance
- HMI: Large graphical display with single-line diagram (SLD) capability

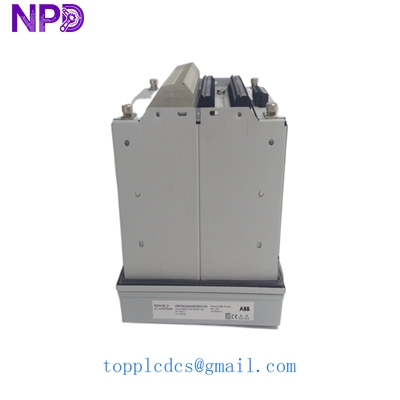

ABB REF615E-D HBFDACADANB1BNN1XD 7700059450
Application Scenarios & Pain Points
In medium-voltage switchgear, the REF615E-D is often the “Gatekeeper.” It handles everything from simple overcurrent protection to complex high-impedance busbar schemes. The real pain point for engineers isn’t just the protection logic—it’s the integration. If you are trying to get an old substation to talk to a new SCADA system via IEC 61850, the mapping of signals into GOOSE messages can be a nightmare if the hardware version doesn’t support the required data sets.
Typical Application Scenarios:
- Industrial Feeder Protection Protecting incoming and outgoing feeders in manufacturing plants where high-speed fault clearing is needed to prevent equipment damage.
- High-Impedance Busbar Protection Utilizing the “E” configuration to detect phase-to-phase and phase-to-earth faults on the busbar with high sensitivity.
- Renewable Energy Integration Monitoring power quality and managing the connection point for solar or wind farms to the grid.
- Retrofit and Modernization Replacing aging electromagnetic or first-generation digital relays with a unit that supports modern communication and faster processing.
Case Study: The “Untraceable” Nuisance Trip
Background: A textile factory was suffering from random production line shutdowns. The old protection relays showed a “General Trip” but provided no waveform data or sequence-of-events recording.
Problem: Without an oscillography record (COMTRADE file), the maintenance team couldn’t tell if the trip was caused by a motor inrush, a genuine cable fault, or a voltage dip from the utility.
Solution: We supplied the REF615E-D (7700059450). This unit features a built-in disturbance recorder. We configured the trigger for 20 cycles pre-fault and 40 cycles post-fault.
Result:
- Clarity: Within a week, another trip occurred. The REF615 captured the waveform, showing a clear phase-to-ground fault caused by a damaged cable termination that only arced under high humidity.
- Recovery: The cable was replaced during a planned 4-hour window, rather than an emergency shutdown.
- Outcome: The customer saved an estimated $45,000 in lost production time by identifying the root cause on the first attempt.

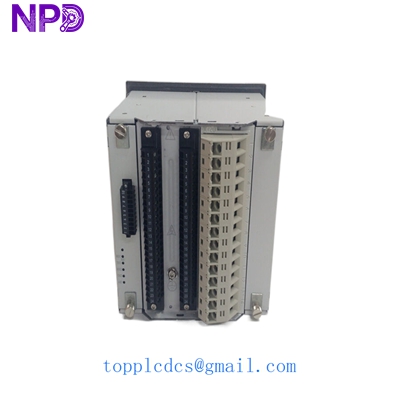

ABB REF615E-D HBFDACADANB1BNN1XD 7700059450
Technical Integration Guide: The “H” Code Decoded
The configuration code HBFDACADANB1BNN1XD tells a story about this specific relay. As an integrator, I pay attention to these digits because they dictate what you can actually do in the field.
- H (Configuration): Feeder protection with high-impedance busbar protection.
- B (Analog Inputs): 5 CTs + 3 VTs. This is critical—if you only have 4 CTs, you can’t do certain differential schemes properly.
- Communication: This unit is loaded with IEC 61850. If you are using PCM600 software, ensure you have the latest Connectivity Package (ConnPack) for the 615 series version 5.0 or higher.
- Wiring Note: The CT terminals are “shorting type.” However, always verify that the shorting bar is engaged before pulling the draw-out unit under load. I’ve seen guys blow a CT secondary because they assumed the internal shorting mechanism was 100% reliable on a 20-year-old rack. Always test your shorting blocks.
ABB REF615E-D HBFDACADANB1BNN1XD 7700059450
