Description
- Model: ABB REM615 HCMJAEADABC2BNN11E
- Brand: ABB (Finland)
- Series: Relion® 615 Series
- Core Function: Dedicated motor protection, control, and monitoring
- Product Type: Numerical Protection Relay
- Key Specs: 100-240 V AC / 24-250 V DC Power | IEC 61850 | Modbus TCP

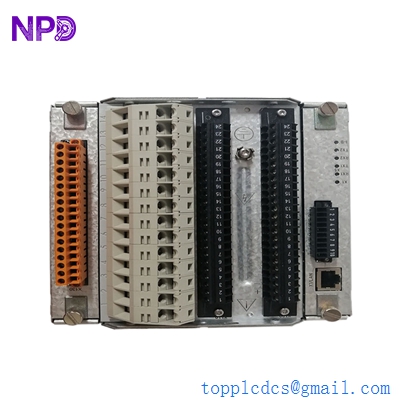

ABB REM615 HCMJAEADABC2BNN11E
Key Technical Specifications
- Auxiliary Voltage: 100, 110, 120, 220, 240 V AC / 24, 48, 60, 110, 125, 220, 250 V DC
- Binary Inputs/Outputs: 14 Inputs / 9 Outputs (configuration dependent)
- Analog Inputs: 3 Current (CT) + 1 Sensitive Earth Current (CT) + 3 Voltage (VT)
- Communication Protocol: IEC 61850-8-1, Modbus TCP/RTU, DNP3, IEC 60870-5-103
- Protection Functions: 48 (Motor start), 49M (Thermal), 50/51 (Overcurrent), 27/59 (Voltage)
- Ethernet Port: 100Base-TX (RJ45) or LC Fiber Optic options
- HMI: Large Graphical Display with SLD (Single Line Diagram) support
- Enclosure Rating: IP54 (Front side when flush mounted)
- Operating Temperature: -25°C to +55°C (continuous)
Application Scenarios & Pain Points
In heavy industry—think mining, oil & gas, or large-scale water treatment—the motor is the heart of the operation. When a high-voltage motor trips or burns out, it’s rarely just a “motor problem.” It’s a multi-million dollar production halt. The REM615 doesn’t just “shut things off”; it uses thermal modeling to tell you why things are heating up before the insulation melts. The HCMJAEADABC2BNN11E configuration is particularly popular because of its flexible power supply range, making it a “universal” spare for many plants.
Typical Application Scenarios:
- Oil & Gas – Critical Pump Protection Used on medium-voltage motors driving crude oil pumps where a failure could lead to pressure surges or environmental hazards.
- Mining & Minerals – Conveyor Systems Protects large motors from frequent starts/stops and heavy loading conditions in dusty, vibration-prone environments.
- Water Utilities – Pumping Stations Integrates via IEC 61850 into a city-wide SCADA system for remote monitoring of pump health and energy usage.
- Power Plants – Draft Fans & Feedwater Pumps Ensures auxiliary motors remain operational to prevent boiler trips, requiring high-speed communication and reliability.
Case Study: The “Ghost Trip” in a Cement Plant
Background: A large cement plant in Southeast Asia experienced intermittent tripping on a 2.5 MW fan motor. The existing relay (an older generation model) just showed a generic “Overcurrent” fault.
The Problem: The maintenance team kept resetting the relay and restarting, which eventually led to motor winding stress. They couldn’t find the root cause—was it a mechanical jam, a voltage dip, or a faulty relay?
Solution: We supplied a REM615 HCMJAEADABC2BNN11E to replace the aging unit. Using the built-in disturbance recorder (COMTRADE format) and the specialized motor-start monitoring function, the plant engineers discovered a subtle mechanical misalignment in the fan coupling that was causing a “locked rotor” condition for just a few milliseconds during startup.
Result:
- Precision: The relay’s detailed logs identified the mechanical issue, saving the motor from a catastrophic burnout.
- Uptime: Instead of a week-long motor rewind, they performed a 4-hour coupling alignment.
- Feedback: “The REM615’s display gave us the data we needed to stop guessing and start fixing.”

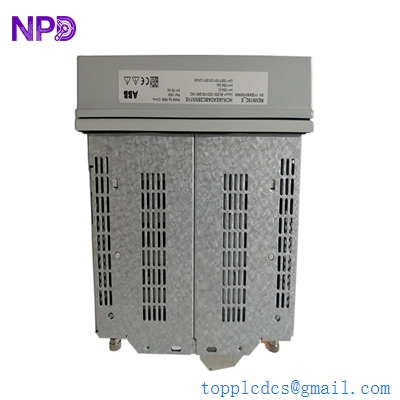

ABB REM615 HCMJAEADABC2BNN11E
Compatible Replacement Models
If the specific HCMJAEADABC2BNN11E is unavailable, here is how we look at alternatives:
| Original Model | Alternative Model | Compatibility | Key Differences | Action Required |
| REM615 …11E | REM615 …11F | ✅ Direct | Usually just a labeling or regional code change. | Check terminal block fit. |
| REM615 (Old Rev) | REM620 | ⚠️ Software | More I/O, larger footprint. | Cutout modification required. |
| REM615 (Standard) | REM615 (Conformal Coated) | ✅ Direct | Better resistance to H2S/Corrosion. | None (Recommended for O&G). |
A Note on Firmware: To be honest, versioning in the Relion series can be a headache. If you are replacing a V4.0 relay with a V5.0, your old PCM600 project files might need a migration tool. Always back up your .pcms or .cid files before swapping hardware!
Troubleshooting Quick Reference
| Symptom | Likely Cause | Relay Involvement | Action |
| “Green Ready LED” Off | No power or internal PSU failure. | ✅ High | Check terminals X1.1 and X1.2 for 110/220V. |
| “Error” LED Flashing | Internal Self-Supervision (IRF) fault. | ✅ High | Check the “Fault” menu for an IRF code. Usually requires replacement. |
| Relay Boots, but “Comm Fail” | Wrong IP address or Subnet mask. | ⚠️ Medium | Verify settings in Menu -> Configuration -> Communication. |
| Motor Trips on Start | Inrush current exceeding “Start” settings. | ⚠️ Medium | Check CT ratios and 48 (Start) settings against motor nameplate. |
| HMI Screen Blank | Contrast setting or ribbon cable loose. | ✅ High | Power cycle. If still blank, the HMI module is likely dead. |
❗ Old Pro Tip: I’ve seen guys spend hours wondering why they can’t talk to the relay via Ethernet. Check the DIP switches on the communication module. Sometimes they are set for a different protocol mode out of the box. Take a photo of the old unit’s switches before you pull it out of the panel!
