1. Product Description

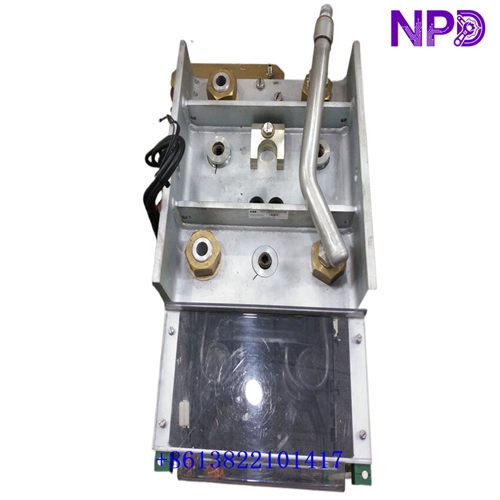

⚙️ The ABB S-076N (3BHB009884R0021) is a high-power phase module designed for compatible ABB medium- and high-voltage drive systems, including certain ACS6000 configurations. It uses high-power semiconductor switching components to control electrical power conversion for large industrial motors.
🔧 The module incorporates power semiconductor devices, associated switching and snubber circuitry, busbar connections, and a liquid-cooling arrangement in the documented design. Before replacement, verify the converter model, electrical ratings, cooling connections, gate-drive configuration, and hardware revision.
ABB S-076N 3BHB009884R0021
2. Product Parameters and Datasheet
📋 Brand: ABB
Model: S-076N
Order Number: 3BHB009884R0021
Series: ABB High-Power Drive Systems
Product Name: High-Power Phase Module
Application: Compatible high-power frequency converters
Power Semiconductor: IEGT / compatible power-switching design; verify exact revision
Cooling Method: Liquid cooling in the documented module design
Place of Manufacture: Poland listed in product data; verify individual unit
Product Status: New / Used; confirm actual stock condition
Dimensions: Refer to the manufacturer’s mechanical drawings
Net Weight: Approximately 175 kg
Country of Origin: Verify product nameplate and shipping documents
Power Requirements: Determined by the host converter configuration
Discontinued: Confirm current lifecycle status with ABB
3. Recommended ABB Models
🔩 1. ABB S-073N — Related phase-module designation; verify exact part number.
2. ABB S-073M — Related high-power phase-module variant.
3. ABB S-073H — Related phase-module variant.
4. ABB S-093H — Related high-power phase-module designation.
5. ABB S-113N — Related power-module family.
6. ABB S-123H — High-power drive module; verify compatibility.
7. ABB 5SHY4045L0001 — IGCT power semiconductor module.
8. ABB 5SHY4045L0006 — IGCT power semiconductor module.
9. ABB 3BHB018162R0001 — Associated with an ABB IGCT module.
10. ABB 3BHB030310R0001 — Associated with an ABB IGCT module.
11. ABB 3BHE009681R0101 — ABB power-electronics component.
12. ABB 3BHE039203R0101 — ABB power-electronics component.
13. ABB GVC750BE101 — Gate-drive-related component; verify configuration.
14. ABB GVC736CE101 — Gate-drive-related component; verify configuration.
15. ABB ACS6000 — High-power industrial drive system family.
⚠️ These are related ABB power-electronics products and sourcing leads, not guaranteed direct replacements. Due to the module’s high voltage, high current, and substantial weight, installation and replacement must be performed by qualified personnel using the applicable ABB service procedures.
