Description

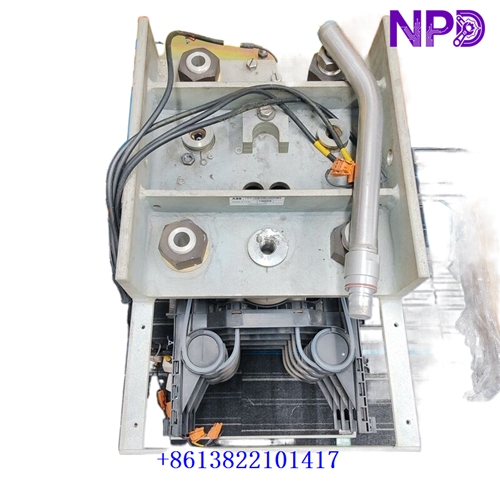

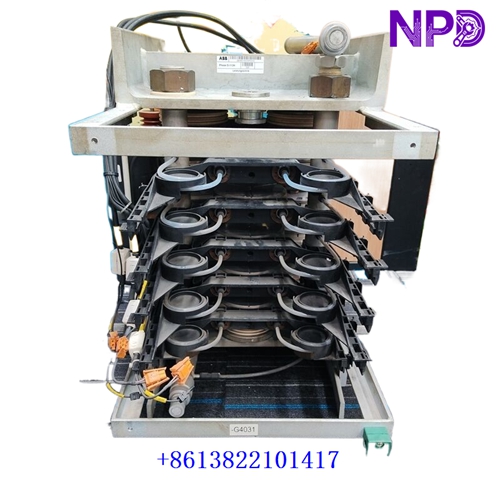

The ABB S-113H (bearing part number 3BHB018008R0003) is a specialized power electronic and phase control module engineered for ABB’s high-power medium-voltage converter and industrial drive platforms (such as the ACS6000 series). It acts as a critical switching, gating, or phase-leg control interface designed to manage high-voltage power conversion arrays with precise timing and high noise immunity.
| Parameter | Specification |
| Brand / Manufacturer | ABB |
| Model / Type | S-113H Phase / Control Module |
| Part Number | 3BHB018008R0003 |
| Application Series | ABB Medium-Voltage Frequency Converters & Power Systems |
| Product Type | Electrical Device Control / Phase Leg Assembly Component |
| Mounting & Form Factor | Modular converter stack card / rack-mount assembly |
| Product Status | Industrial Automation Spare Part / Active System Support |
First-Run Inspection Checklist
- ☑ Physical & Component Integrity
Inspect the printed circuit board, interface pins, optical links, and mounted components for any transit damage, micro-cracks, or connector bending.
- ☑ Slot & Backplane Alignment
Ensure that the target converter slot or mounting rack is clean, debris-free, and correctly aligned to prevent damage to backplane or plug-in terminals during installation.
- ☑ Control & Power Supply Verification
Confirm that input auxiliary supply voltages and low-voltage control rails are stable and within specified thresholds prior to system energization.
Routine Maintenance & Servicing
- 🛠 Environmental Monitoring
Ensure that converter cabinets maintain stable operating temperatures and remain clean, preventing the accumulation of conductive dust or moisture condensation.
- 🔌 Terminal & Fiber-Optic Check
Periodically check plug-in electrical connectors and fiber-optic communication cables to guarantee secure mechanical seating and prevent signal degradation.
Troubleshooting & Common Issues
- ⚠️ Communication or Gating Faults
If the converter control rack registers a phase or gate fault linked to this slot, inspect optical transceivers for dust accumulation, check cable continuity, and verify internal power rails.
- ⚠️ Module Initialization Failures
If the module fails to boot or triggers diagnostic alarms, verify proper seating depth in the rack backplane and review drive event logs.
Safety Precautions
- 🔐 Qualified Personnel Only
Handling, installation, and replacement must be executed exclusively by certified technicians trained in high-voltage industrial drive systems and electrical safety.
- ⚠️ Complete Energy Isolation
Always isolate, lock out, and verify complete discharge of the DC-link capacitor banks before touching or removing hardware components inside medium-voltage cabinets.
Frequently Asked Questions (Q&A)
- ❓ Q1: What is the primary function of the S-113H module in an ABB drive system?
A: It functions as a phase and power control module within high-voltage frequency converters, handling critical gating or signal processing tasks for the power stack.
- ❓ Q2: What precautions are necessary when handling converter control cards?
A: Technicians must strictly observe electrostatic discharge (ESD) safeguards, wear a grounded wrist strap, and ensure zero energy/voltage state on the rack before inserting or removing hardware.
