Description
- Model Number: SB510
- Material / P/N Code: 3BSE000860R1
- Brand: ABB (Asea Brown Boveri)
- Series: S800 I/O
- Core Function: Functions as a sturdy mechanical and electrical terminal base unit (mounting base) that connects I/O modules to the field wiring and the internal module bus.
- Condition: Brand New Surplus / Original Factory Packing
- Product Type: MTU (Module Termination Unit)
- Key Specs: Din-rail mountable, integrated fieldbus/module bus connectors, screw-clamp or spring-loaded terminals for field wires.
- Mounting Type: DIN Rail (Horizontal or Vertical mounting configurations)
- Connection Interface:
- I/O Module Side: High-density backplane connector for plugging in the S800 I/O modules.
- Field Wiring Side: Terminal blocks for I/O signals (typically screw-type for secure industrial connectivity).
- Electrical Path: Passes 24 V DC power and digital/analog signal lines directly from the field wiring to the I/O module electronics.
- Mechanical Integrity: High-impact, flame-retardant plastic casing designed to withstand heavy vibration environments.
- Operating Temp: -40°C to +70°C (designed for extreme climate industrial cabinets).

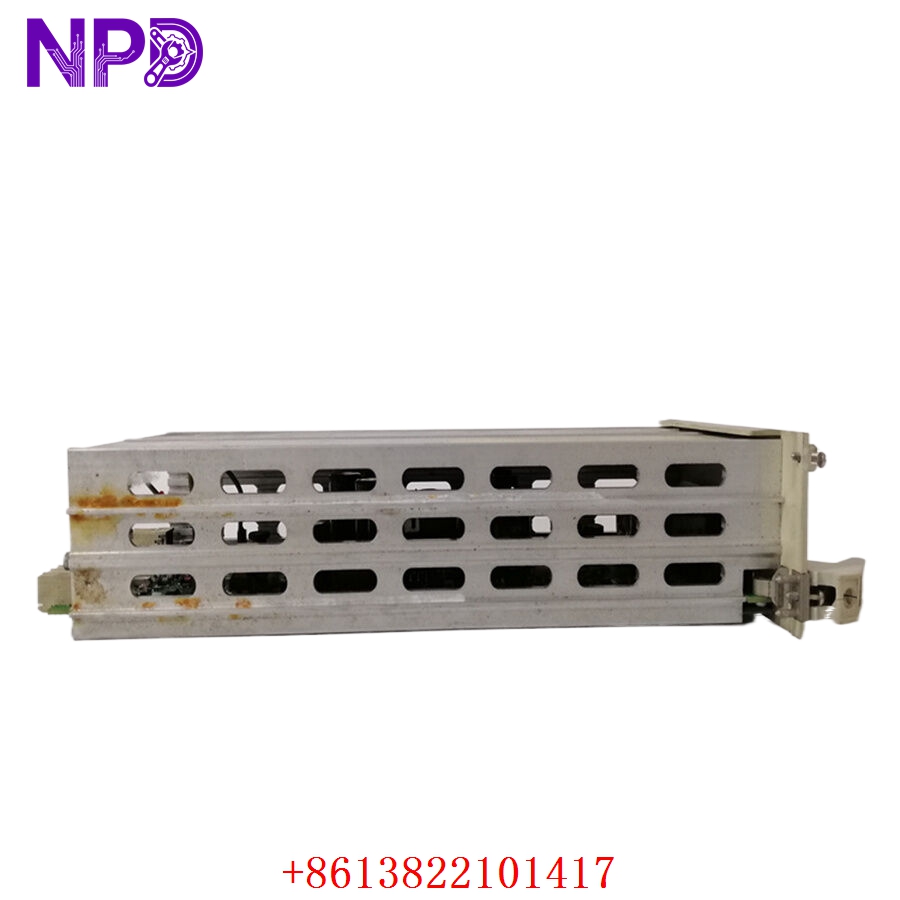

ABB SB510 3BSE000860R1

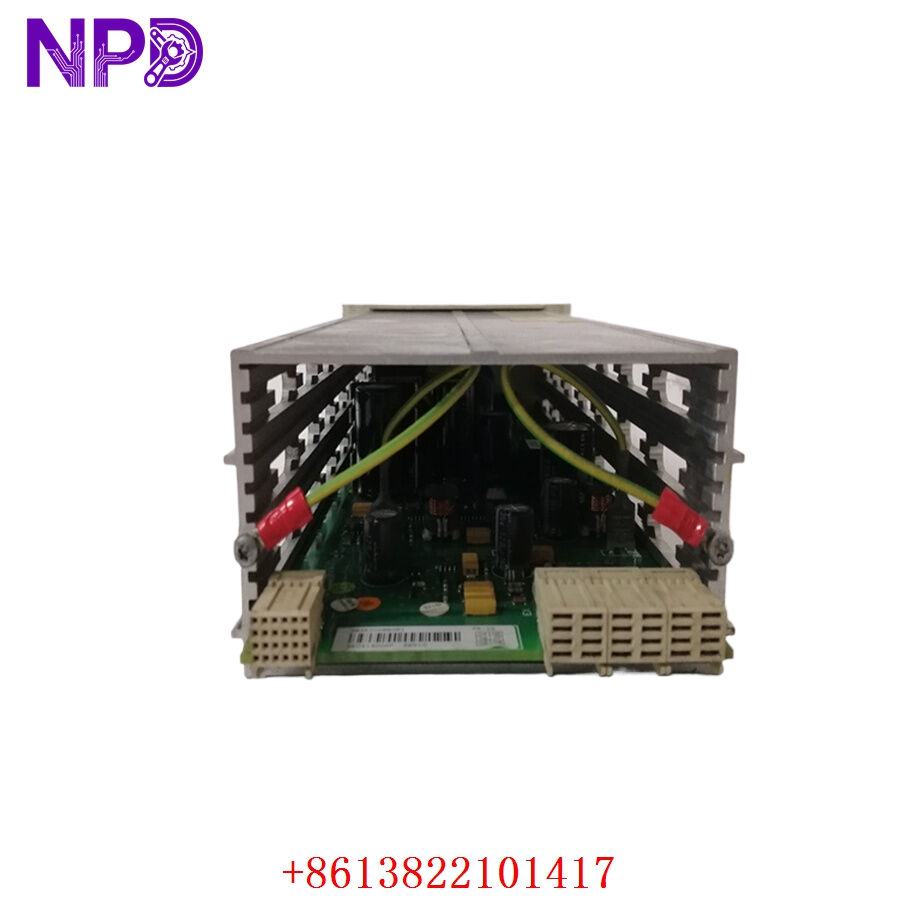

ABB SB510 3BSE000860R1

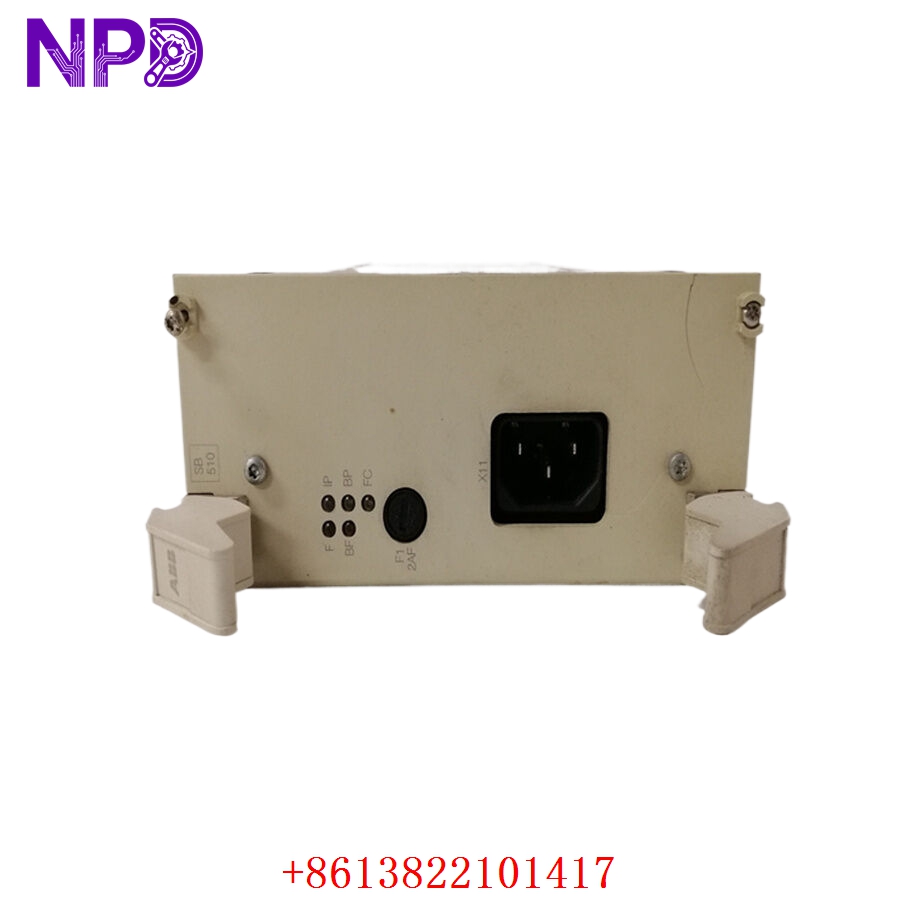

ABB SB510 3BSE000860R1
Engineering Pain Points & Maintenance
The SB510 3BSE000860R1 is the foundation upon which your I/O system is built. While it is a “passive” device (meaning it has no active logic), it is a common failure point due to mechanical degradation over time.
- Terminal Corrosion: In high-humidity or chemical processing environments, field wire terminal screws can oxidize, leading to high-resistance connections or intermittent signal drops.
- Backplane Connector Wear: Repeatedly pulling and plugging I/O modules into the SB510 can cause the delicate internal contacts to widen or become loose, leading to “Module Missing” errors.
- Vibration-Induced Loosening: Industrial machinery vibration can slowly loosen field-wire screws, leading to accidental ground loops or open-circuit faults.
Standard Operating Procedure (SOP) Quality Transparency
Our quality team inspects every SB510 terminal base before dispatch:
[Visual Housing Check] ➔ [Backplane Connector Pin Alignment] ➔ [Terminal Screw Thread Verification] ➔ [Plastic Integrity Audit] - Visual Housing Check: Ensuring no cracks, chips, or warping in the terminal casing.
- Backplane Connector Pin Alignment: Checking that all internal gold-plated contacts are perfectly aligned and not bent.
- Terminal Screw Thread Verification: Physically testing every screw terminal to ensure they turn smoothly and provide adequate clamping force for field wires.
- Plastic Integrity Audit: Verification that all mounting clips are intact and functional for secure DIN rail attachment.
Installation & Mitigation Tips
- Wiring: When installing, ensure all field wires are stripped to the correct length as specified by ABB. Over-stripping creates a risk of short circuits between adjacent terminals.
- Torque: Use the correct screwdriver size for the terminal screws. Over-torquing can crack the terminal block plastic, while under-torquing leads to signal instability.
- Bus Connection: When connecting multiple SB510 bases together on a DIN rail, ensure the internal module bus connectors are fully engaged to avoid data continuity issues between modules.
Troubleshooting Quick Reference
| Symptom | Probable Cause | Action |
| “Module Missing” Alarm | Bad connection between I/O module and SB510. | Reseat the I/O module; inspect the SB510 backplane pins for bent or oxidized contacts. |
| Intermittent Analog Signal | Loose field wire or corroded terminal. | Retighten the field wire screw; clean the terminal if oxidation is visible. |
| System Power Fault | Loose power jumper/cable on the base unit. | Verify that the 24 V DC power supply lines are firmly secured into the base’s power distribution terminals. |
Need immediate engineering assistance? If you are planning an I/O rack expansion or replacing a damaged mounting base, please send us the module configuration list for your panel; our engineers can confirm compatibility with your current S800 hardware.
