Description
The ABB SCYC55830 (often identified by part number 58063282A) is a high-performance communication and control module utilized primarily within ABB’s industrial automation and drives ecosystems. This module serves as a critical interface for managing real-time data exchange, signal processing, and synchronization between drive controllers and higher-level automation systems. It is engineered for high-speed, noise-immune operation, ensuring that control commands—such as speed references, torque setpoints, and diagnostic status—are transmitted with the precision required for demanding applications like metal processing, paper mills, and heavy-duty conveyor systems.
Product Specifications
- Model Number: SCYC55830 58063282A
- Manufacturer: ABB
- Function: Communication and Interface Control Module
- Dimensions: 210 mm x 30 mm x 190 mm (Standard drive control card profile)
- Weight: 0.65 kg (1.43 lbs)
- Country of Origin: Finland / Sweden
- Communication Ports: Fiber optic and high-speed serial bus interfaces
- Operating Temperature: 0°C to +55°C (32°F to 131°F)
- Protection Class: IP20 (requires installation within a protected control cabinet)

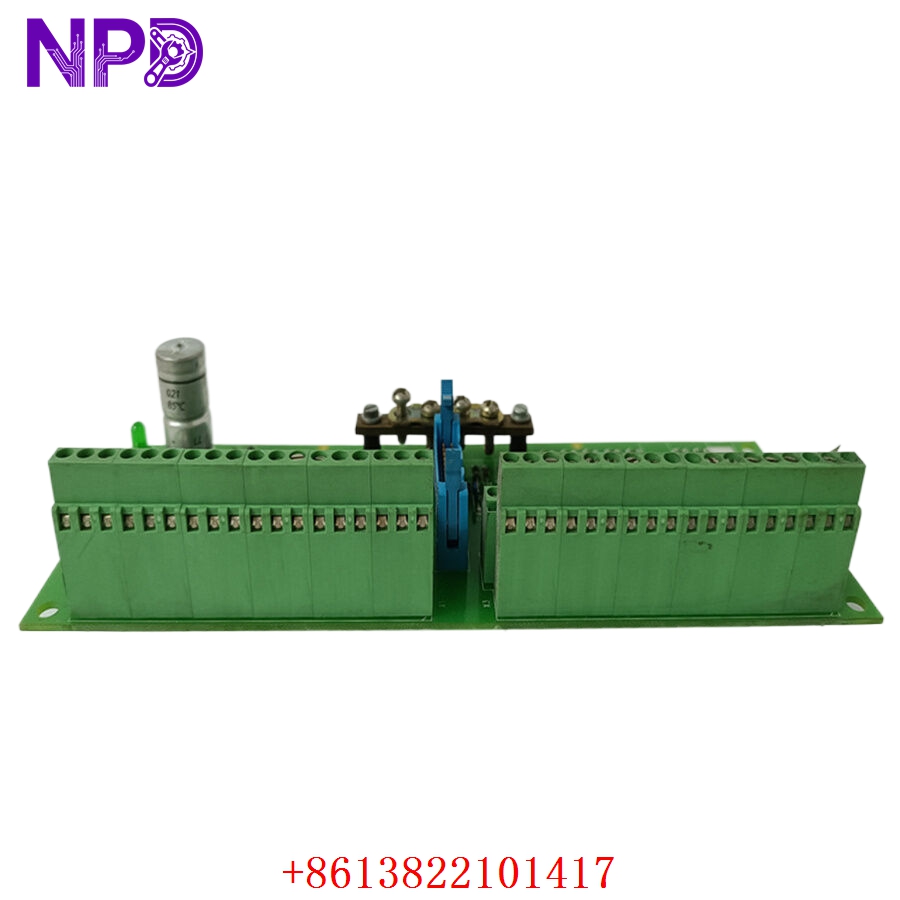

ABB SCYC55830 58063282A

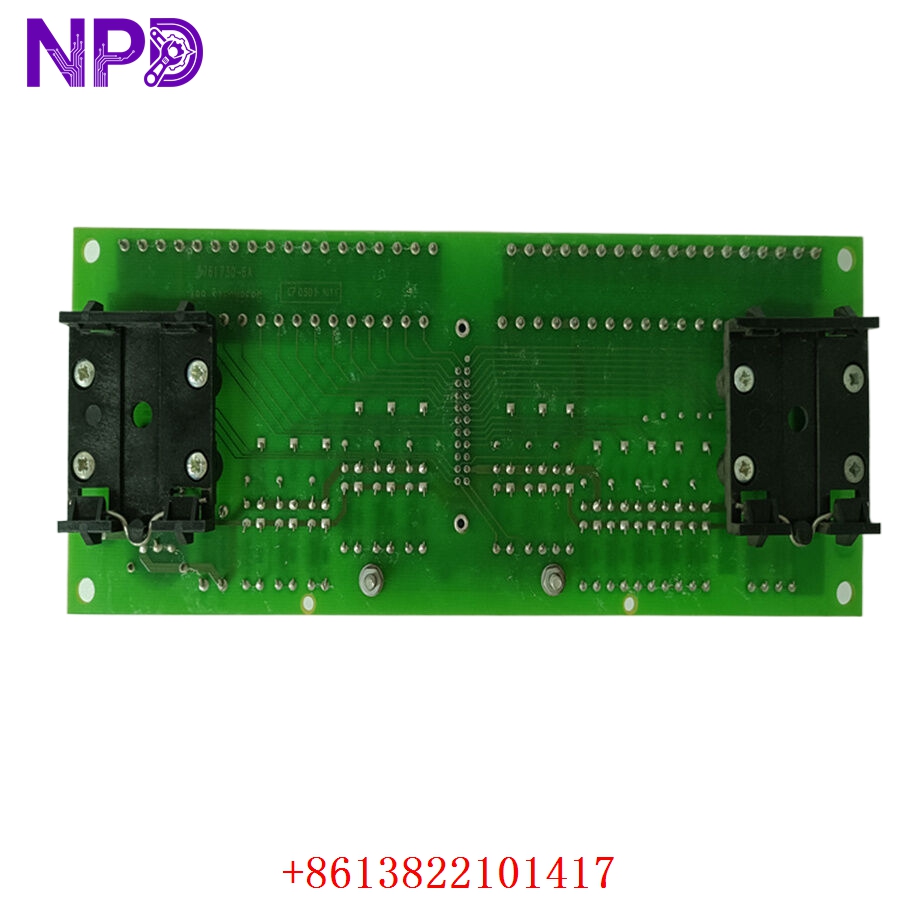

ABB SCYC55830 58063282A

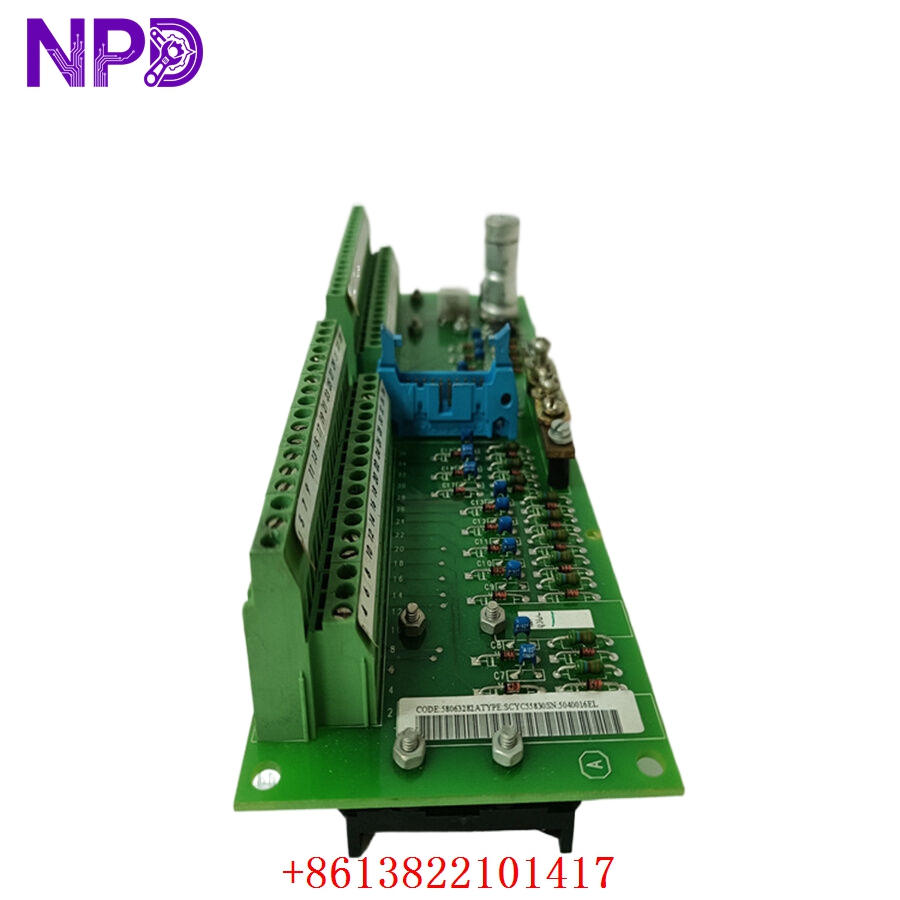

ABB SCYC55830 58063282A
ABB SCYC55830 58063282A
Applications
- Drive System Integration: Acts as the communication bridge in multi-drive systems, synchronizing the operation of several motors in speed-matched applications.
- Heavy Industrial Processing: Deployed in rolling mills and winders where precise tension control and speed synchronization are critical to material quality.
- Auxiliary Power Conversion: Used in power electronics converter cabinets to relay firing sequences and system status feedback to the master PLC.
- Automation Upgrades: Serves as a vital replacement component for maintaining legacy ABB drive control infrastructure in existing industrial plants.
Product Usage Instructions
- Static Discharge Precautions: Like all sensitive ABB control electronics, this module is highly susceptible to electrostatic discharge. Ensure that you are wearing a grounded ESD wrist strap before removing the module from its packaging or inserting it into the drive control rack.
- Chassis Installation: Power down the drive cabinet completely. Align the SCYC55830 module carefully with the designated slot guides in the drive control subrack. Push the module inward until the rear pins connect firmly with the backplane. Tighten the front panel fasteners to ensure the module is fully seated and properly grounded.
- Fiber Optic Handling: The fiber optic connectors are sensitive to contamination and bending. Remove protective caps only when ready to plug in cables. Ensure the cable is routed with a large bend radius; avoid sharp kinks that could damage the internal glass fiber or degrade signal strength.
- Configuration: Use the ABB drive configuration software (such as DriveWindow or specialized system commissioning tools) to verify that the module is recognized by the system. Check the communication settings to ensure the baud rate and node address align with your system’s existing network parameters.
Frequently Asked Questions (Q&A)
- Q: What do the status LEDs on the front faceplate indicate? A: The LEDs provide a real-time status of the communication bus. A solid green light typically indicates that the module is successfully powered and actively participating in the network, while a red or flashing LED usually points to a bus communication timeout or an internal module configuration error.
- Q: Is the 58063282A fully interchangeable with older SCYC series revisions? A: While the form factor is the same, compatibility depends heavily on the firmware version and the specific drive type. Always verify the revision index with your drive’s serial number and technical documentation before commissioning the new module.
- Q: Can I replace this module while the drive is powered on? A: No. Replacing the SCYC55830 while the drive system is operational can cause a sudden loss of control, resulting in an emergency trip or unpredictable motor behavior. Always isolate and lock out power to the drive subrack before replacement.
- Q: How does this module contribute to “high-speed” control? A: By offloading the communication and synchronization tasks from the main drive processor, the SCYC55830 allows for faster, more predictable command execution cycles, which is essential for maintaining tight tolerances in processes where motor speeds must be perfectly synchronized.
