Description

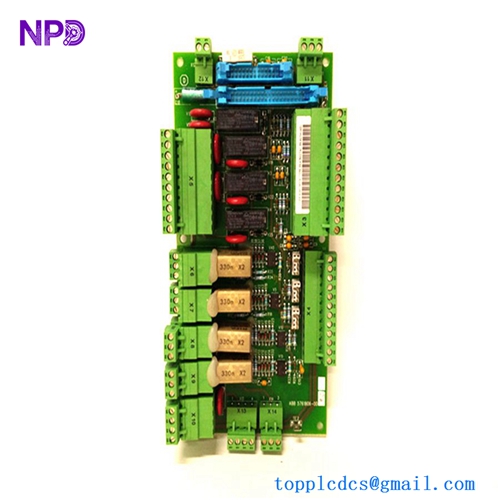

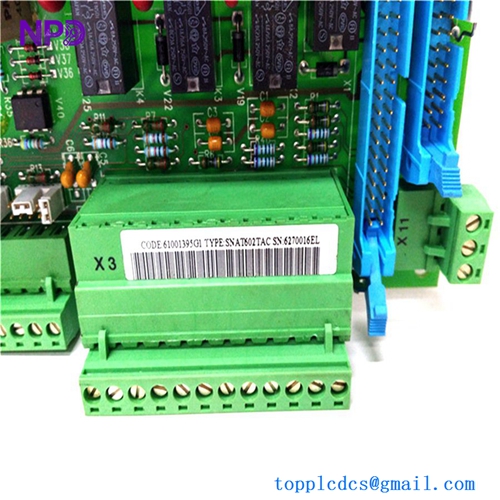

The ABB SNAT602TAC (61001395G1) is a terminal block board serving as an APC connection interface in ABB DCS800 and DDC drive systems. It facilitates wiring connections between the APC control board and modules like SNAT609 TAI for industrial motor control applications.
Product Parameters
- Voltage: 220 VAC operating.
- Output Frequency: 50 kHz.
- Connections: 26-pin ribbon cable to APC X3 (max 2m unshielded); 40-pin to SNAT609 TAI.
- Mounting: Panel mount.
- Certifications: ISO 9001, CE.
- Type: APC terminal block PCB.
Datasheet Summary
Provides reliable signal interfacing for DCS drives with robust terminals for power/control wiring. Supports harsh industrial environments with high stability. Compact design for easy integration in drive cabinets.
Origin
Switzerland (ABB primary manufacturing site).
Technical Details
Acts as the wiring hub linking APC processor to I/O modules in ABB DDC systems; enables analog/digital signals for speed/torque control. Uses ribbon cables for low-noise data transfer; compatible with DCS800 series hardware. Field-replaceable with no special tools needed.
Common Q&A
- What is its main function? Terminal block for APC to drive I/O connections.
- Cable specs? 26-pin to APC, up to 2m; 40-pin to TAI module.
- Voltage rating? 220 VAC.
- Compatible drives? ABB DCS800, DDC series.
- Mounting type? Panel or DIN rail in cabinet.
Similar Models
| Model | Features |
|---|---|
| SNAT602 | Base relay module |
| SNAT602TAC 5761806-0D | Earlier revision |
| SNAT609TAI | Analog input companion |
| SDCS-FEX-1 | Expansion interface |
| DCS502 series | Drive control boards |
| SDCS-AMC-DC2 | Motor control companion |
| TU890 | Similar terminal unit |
| SAFT189-TSI | Safety interface alt. |
