Description

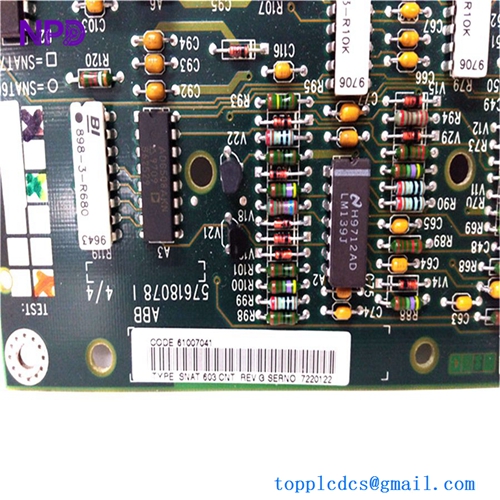

The ABB SNAT603CNT (Part Number: 61007041) is a specialized pulse encoder interface board designed for use within ABB’s high-power industrial drive systems, particularly the Sami Star and earlier ACS series frequency converters. It serves as the critical link between the motor’s rotary encoder and the drive’s control unit, providing precise speed and position feedback.
Product Technical Description
The SNAT603CNT board is responsible for processing high-speed pulse signals from incremental encoders. It converts these physical pulses into digital data that the drive’s control processor uses to calculate motor RPM, angular position, and torque requirements.
- Signal Conditioning: The board features integrated circuitry to filter out electrical noise and “square up” incoming pulses, ensuring signal integrity over long cable runs.
- Power Supply: It typically provides the necessary supply voltage (e.g., +5V or +15V/24V) to power the connected pulse encoder.
- Compatibility: It is designed to mount directly onto the drive’s control stack or a dedicated interface slot, communicating via a multi-pin ribbon cable or backplane.
Product Datasheet (Parameters)
| Parameter | Specification |
| Product ID | 61007041 |
| Model Type | SNAT 603 CNT |
| Function | Pulse Encoder Interface / Feedback Module |
| Input Channels | A, B, and Z (Index) channels |
| Encoder Signal Types | TTL, Differential (RS422), or HTL (24V) |
| Max. Pulse Frequency | Up to 200 kHz |
| Supply Output to Encoder | +5V / +15V DC (Selectable via jumpers) |
| Isolation | Galvanic isolation between encoder and control logic |
| Dimensions | Approx. 140mm x 110mm |
| Country of Origin | Finland |
Technical Characteristics
- Ruggedized Design: Built with industrial-grade components to withstand the electromagnetic interference (EMI) typical of high-power inverter cabinets.
- Zero-Pulse Support: Includes a dedicated input for the “Z” or index pulse, allowing the drive to perform homing routines or absolute position resets.
- Monitoring: Integrated LEDs often indicate the status of the power supply and the presence of incoming pulses for rapid field diagnostics.
Common Questions & Answers (Q&A)
Q: Can I use this board with a third-party encoder?
A: Yes, provided the encoder’s electrical specifications (TTL or HTL) and voltage requirements match the jumper settings on the SNAT603CNT.
Q: What is the most common cause of failure for this module?
A: Failures are often caused by external factors such as short circuits in the encoder cable or excessive voltage spikes (surges) on the feedback lines.
Q: Does the board require software configuration?
A: While the board itself is hardware-based, the drive parameters must be set to recognize the encoder’s “pulses per revolution” (PPR) and the interface type to ensure correct speed calculation.
Q: How do I verify if the board is functioning?
A: Check the diagnostic LEDs. If the drive reports an “ENCODER ERROR” or “7301” fault code, use an oscilloscope to check for clean square waves at the SNAT input terminals.
Similar Model Recommendations (8 Units)
- SNAT601TAI: A similar interface board used for different feedback protocols in Sami Star drives.
- NTAC-02: Pulse encoder interface module for newer ACS800 series drives.
- FEN-01: High-speed TTL encoder interface for modern ACS880/DCS880 systems.
- FEN-31: HTL encoder interface used in ACS850 and ACS880 series.
- SNAT608PWR: The power supply board often found in the same control stack as the SNAT603.
- SNAT612: An alternative control or interface variant within the legacy Sami series.
- RTAC-01: A standard pulse encoder interface for ACS600/ACS800 legacy units.
- DENT-11: Pulse encoder adapter used in specific DCS (DC Drive) architectures.
