Description
| Specification |
Details |
| Product Model |
SNAT604 (5761861-2B) |
| Manufacturer |
ABB |
| Product Series |
ACS600 / SAMI STAR Drive Systems |
| Module Type |
Pulse Amplifier / IGBT Gate Driver |
| Function |
Signal conditioning and pulse amplification |
| Substrate Type |
High-performance |
| Input Signal |
Control logic low-level pulses |
| Output Signal |
High-current gate drive pulses |
| Isolation |
Integrated galvanic isolation |
| Compatibility |
Large-scale frequency converters and rectifiers |
ABB SNAT604 5761861-2B
ABB SNAT604 5761861-2B
ABB SNAT604 5761861-2B

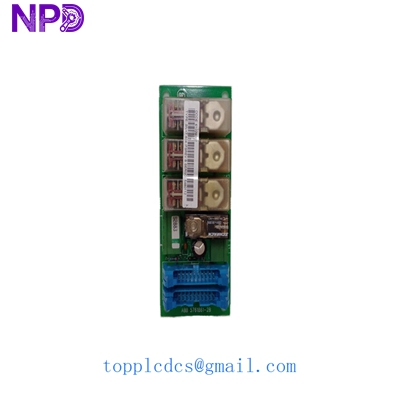

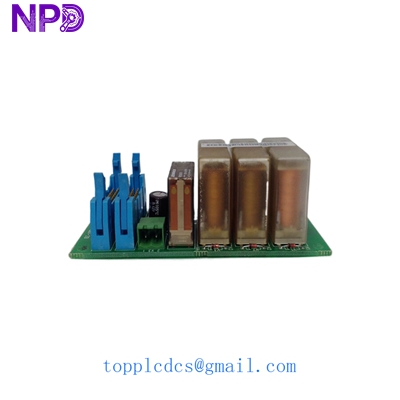

The ABB SNAT604 5761861-2B is a specialized pulse amplifier board primarily used within high-power ACS600 drive units and older SAMI STAR frequency converters. This module acts as the critical bridge between the control electronics and the power semiconductors, amplifying low-level logic signals into robust pulses capable of driving high-power IGBT or GTO thyristor modules while maintaining necessary electrical isolation.
Product Q&A
Q: In which specific ABB equipment is the SNAT604 most commonly found? A: It is a core component in the larger frame sizes of the ACS600 drive series and vintage SAMI STAR systems, often located within the inverter or rectifier sections.
Q: What is the primary cause of failure for this specific driver board? A: Due to its role in high-power switching, failure is often linked to thermal stress or aging of the electrolytic capacitors. If a power semiconductor fails, the SNAT604 should always be inspected for secondary damage.
Q: Are there different versions of the 5761861 part number? A: Yes, the suffix (e.g., -2B) indicates the revision level. While many revisions are interchangeable, it is vital to ensure the hardware version matches the control software parameters of your specific drive system.
