Description
ABB SPBRC410 is a bridge controller module in the Symphony Plus / Harmony Rack family, used to interface modern Symphony Plus systems with legacy INFI 90 / BRC410‑based installations over Ethernet (Modbus TCP). It acts as a high‑performance communication and processing node, allowing existing Bailey / Harmony plants to be integrated into newer ABB DCS architectures without replacing all legacy controllers.

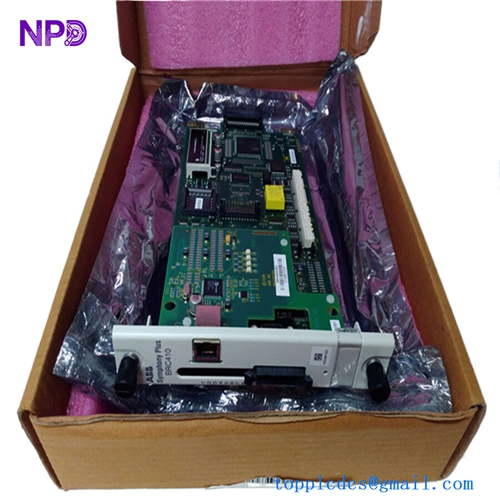

ABB SPBRC410
Product description and key parameters
SPBRC410 is a rack‑mounted controller module designed for Harmony Rack / Symphony Plus systems:
- Product type
- Symphony Plus bridge controller for Harmony Rack / INFI 90 systems.
- Provides Modbus TCP and other field / plant‑network interfaces depending on configuration.
- Processing and memory
- 32‑bit RISC‑class processor.
- Typical main frequency around 100 MHz.
- RAM on the order of 128 MB for runtime data and control logic.
- Flash memory on the order of 256 MB for firmware, configuration, and application storage.
- Power and electrical
- Powered from the rack’s low‑voltage DC supply (nominal 24 V DC).
- Internal power‑conditioning to supply CPU, communication, and I/O circuits.
- Communications
- Native Modbus TCP interface for integration with PLCs, third‑party DCS, and HMI/SCADA.
- Additional industrial interfaces (such as PROFIBUS or plant Ethernet variants) depending on system design.
- Harmony Rack / INFI 90 bus connection to communicate with legacy Bailey/Harmony modules and controllers.
- Capacity and performance
- Designed to handle large point counts and control strategies typical of a plant‑wide bridge, including thousands of tags.
- Supports real‑time data exchange, alarms, and historical data transfer between Symphony Plus and legacy subsystems.
- Mechanical
- Plug‑in module for the Harmony Rack chassis.
- Front panel with status LEDs and Ethernet ports.
- Approximate size consistent with other Harmony rack controllers (Eurocard‑style height with extended depth).
- Typical module weight on the order of a few hundred grams.
- Environmental
- Suitable for control‑room / marshalling‑cabinet environments.
- Operating temperature typically around −20 °C to +55 °C.
- Enclosure class around IP20 when installed in a suitable cabinet.

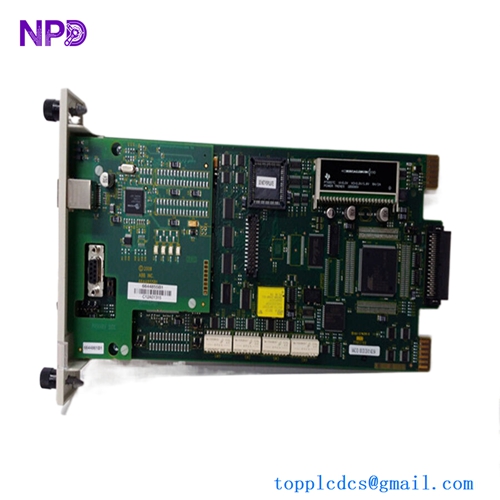

ABB SPBRC410
Datasheet‑style overview
In datasheet terms, SPBRC410 is specified as:
- “Controller with Modbus TCP interface” for Symphony Plus.
- Bridge between Symphony Plus and legacy Harmony Rack / INFI 90 controllers.
- Compatible with the Harmony Rack form factor (SPBRC41000000 type designation).
Typical datasheet items include:
- Product ID and type designation (SPBRC410).
- Supported protocols (e.g., Modbus TCP plus system‑internal protocols).
- Power consumption from the rack backplane.
- Electrical isolation and EMC compliance.
- Approvals and markings (CE, industrial EMC, etc.).
Its primary task is to allow modern Symphony Plus operator stations, engineering tools, and historian systems to supervise and control installed INFI 90/Harmony controllers via an Ethernet‑based bridge.
Origin
SPBRC410 is an ABB Symphony Plus / Harmony product. ABB’s Symphony/Harmony/INFI 90 family has strong heritage in Europe and North America, with hardware and development driven from ABB’s process automation centers of excellence. The module is supplied under ABB’s global industrial quality system as part of its DCS product line.
Recommended related ABB modules (same brand)
If you are working with SPBRC410, the following ABB Symphony Plus / Harmony / INFI 90 modules are commonly used together or as alternatives:
- BRC410 / BRC‑type Harmony Rack controllers
Legacy INFI 90/Harmony process controllers that SPBRC410 is designed to interface with. They execute control strategies at the unit and plant level. - Other Symphony Plus bridge or communication controllers
Variants dedicated to different fieldbuses or system‑to‑system links (for example, PROFIBUS‑focused or Ethernet‑focused communication modules) when bridging to non‑Modbus equipment. - I/O modules for Harmony Rack / Symphony Plus
Analog and digital input/output modules that connect field signals to the Harmony Rack and are supervised indirectly through SPBRC410 when accessed from Symphony Plus. - Symphony Plus AC 800M / controller modules
Modern Symphony Plus controllers that, together with SPBRC410, form a mixed system where new AC 800M‑based control and legacy INFI 90/Harmony control coexist on the same plant‑wide architecture.
Using SPBRC410 together with these modules lets plants gradually migrate from legacy ABB/Bailey INFI 90 systems to a current Symphony Plus architecture, keeping existing field wiring and controllers in service while adding modern control, visualization, and asset‑management capabilities.
