Description

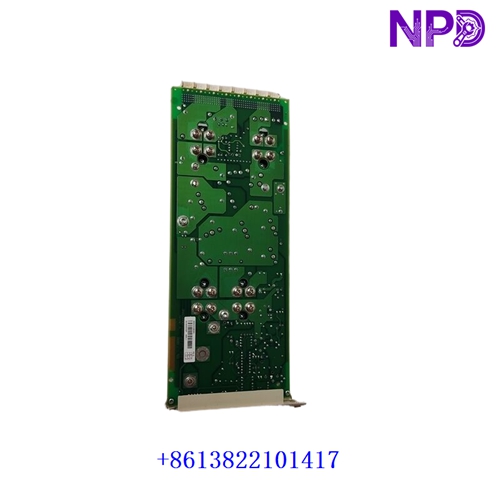

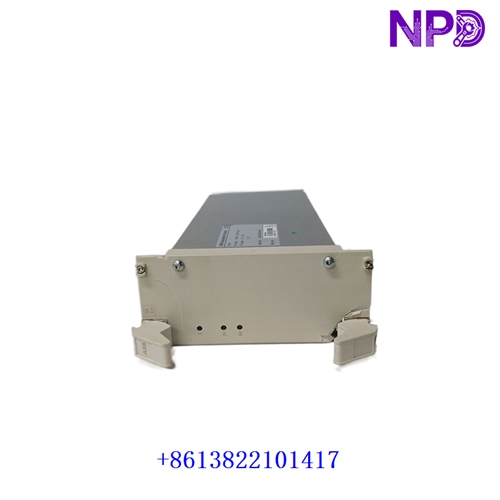

The following parameters outline the core technical specifications and physical characteristics of the high-performance ABB power regulator module, designed for Advant Controller installations.
- 1. Brand: ABB
- 2. Model: SR511 (Part Numbers: 3BSE000863R0001 / 3BSE000863R1)
- 3. Series: Advant OCS / Advant Controller (AC450 / AC460)
- 4. Product Name: Power Supply / DC-DC Voltage Regulator Module
- 5. Place of Origin: Sweden
- 6. Physical Status: Factory New / Industrial Spare Part
- 7. Dimensions: Approx. 22 cm × 12 cm × 6.5 cm (or variant rack-mount profile formats)
- 8. Weight: Approx. 0.44 kg to 1.58 kg depending on housing configuration
- 9. Original Region: European Industrial Manufacturing Hub
- 10. Power Rating: 310 W DC/DC voltage regulator converting a 24 V DC input supply down to 5 V DC for controller electronics
Initial Operation Checklist
- 🔹 Inspect transit packaging and the module casing for physical damage or environmental exposure prior to unboxing.
- 🔹 Verify that part numbers
SR511and3BSE000863R0001match system engineering requirements and rack slot layouts exactly. - 🔹 Ensure system power feeds and cabinet distribution blocks are completely de-energized and locked out/tagged out before handling hardware.
- 🔹 Check backplane interface pins and slot guide rails for cleanliness, proper alignment, and absence of oxidation.
- 🔹 Confirm proper grounding continuity between the controller subrack chassis and the main cabinet ground bus.
Daily Maintenance & Servicing
- 🔸 Monitor operating ambient temperatures continuously, ensuring environment conditions remain within standard thresholds.
- 🔸 Inspect front-panel status indicators regularly to verify normal input voltage status and output regulation health.
- 🔸 Keep cabinet ventilation pathways and cooling fans unobstructed to maintain required airflow across power modules.
- 🔸 Perform periodic visual checks on terminal wiring and mounting screws to safeguard against loosening under continuous plant vibration.
Troubleshooting & Common Issues
- 🔻 Symptom: Module fails to deliver output voltage or controller electronics lack power.
Action: Check input 24 V DC supply rails using a calibrated multimeter, verify upstream protection fuses, and ensure the module is fully seated in its rack slot.
- 🔻 Symptom: Output voltage instability or thermal shut-down behavior under load.
Action: Verify that total load power does not exceed the 310 W rating limit and inspect cabinet climate control and ventilation paths.
- 🔻 Symptom: Dual-redundant configuration mismatch or fault warning in an AC450 setup.
Action: Inspect redundant module pairing configuration, check individual module health indicators, and review controller diagnostic logs.
Safety Precautions
- ⚠️ Only certified automation and electrical technicians familiar with ABB Advant control systems should perform installation and servicing tasks.
- ⚠️ Observe strict electrostatic discharge (ESD) prevention protocols, including the mandatory use of grounded wrist straps when handling module internal circuitry.
- ⚠️ Never insert or remove power regulator modules from an energized rack unless proper hot-swap or system maintenance procedures are explicitly authorized.
Frequently Asked Questions (Q&A)
- Q1: What is the primary function of the ABB SR511 module?
A1: It serves as a 310 W DC/DC voltage regulator that converts an incoming 24 V DC supply into a regulated 5 V DC output for controller electronics.
- Q2: Which control systems are compatible with this power regulator?
A2: It is engineered specifically for ABB Advant Controller installations, such as the AC450 and AC460 platforms.
- Q3: Can these modules be configured in a redundant setup?
A3: Yes, ABB system data permits dual-redundant power arrangements utilizing two SR511 regulators combined within compatible controller racks.
