1. Product Description

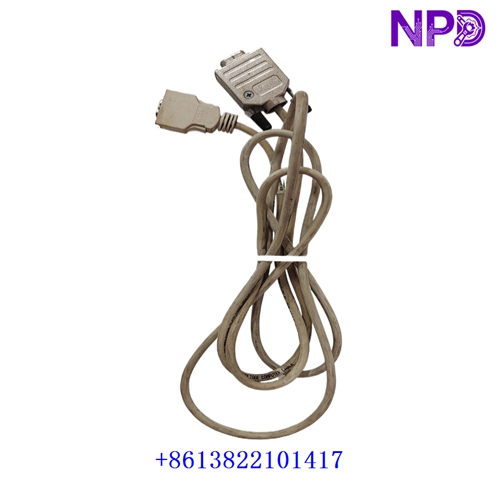

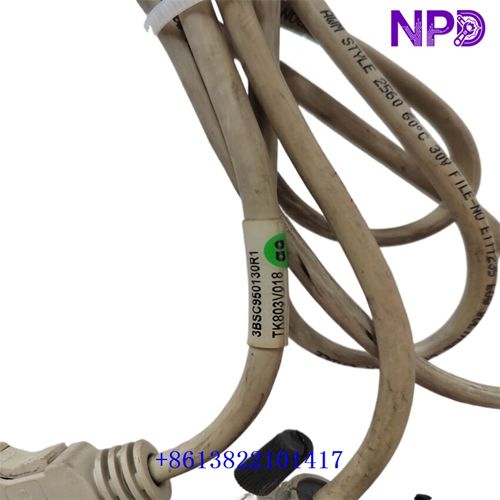

The ABB TK803V018 (3BSC950130R1) is a prefabricated cable assembly designed for ABB Advant OCS and compatible legacy process-control system applications. It features a 1.8-meter cable with a 14-position HD connector and a 9-position female D-Sub connector. The assembly provides a pre-terminated connection between compatible system components, helping simplify installation and maintenance. Confirm connector pin assignments and the intended interface at both ends before replacing an existing cable.
TK803V018
2. Product Parameters and Datasheet
– Brand: ABB
– Model: TK803V018
– Order Number: 3BSC950130R1
– Series: Advant OCS / Advant Master
– Product Name: Prefabricated Cable Assembly
– Product Type: Industrial Automation Connection Cable
– Cable Length: 1.8 m
– Connector A: 14-position HD connector
– Connector B: 9-position female D-Sub connector
– Function: Signal and communication connection between compatible system components
– Compatibility: Applicable ABB Advant OCS configurations; verify exact equipment and pinout
– Power Requirements: Passive cable assembly; no independent power supply
– Dimensions: Cable length 1.8 m; overall dimensions depend on connectors and cable routing
– Weight: Not confirmed; depends on the cable assembly configuration
– Place of Manufacture / Country of Origin: Verify from the product label and shipping documents
– Product Status: Legacy spare part; confirm availability with supplier
– Discontinued: Current lifecycle status not confirmed
– Compliance Note: ABB product documentation identifies a specific RoHS exemption for this part; check current applicable documentation for compliance requirements
3. Recommended ABB Models
– TK803V018 — Exact cable assembly model.
– TK801V012 — ABB Advant OCS cable assembly; verify connector configuration.
– TK801V016 — Related ABB cable assembly; confirm length and pinout.
– TK802V012 — Related Advant OCS cable assembly; verify application.
– TK802V018 — Related cable assembly; confirm connector details.
– TK803V036 — Related ABB cable assembly variant; verify specification.
– TK850V007 — ABB Advant system cable; check connector compatibility.
– TK850V010 — Related cable assembly; verify pin assignments.
– TK851V010 — ABB system cable variant; confirm intended interface.
– TK852V020 — Related automation cable; verify exact system compatibility.
– CI520V1 — ABB Advant communication interface; application-dependent.
– CI522A — ABB Advant communication interface; verify system revision.
– CI530 — ABB Advant communication interface; check installed system requirements.
– CI531 — ABB Advant communication interface; confirm compatibility.
– Advant OCS controller and communication accessories — Select according to the installed system configuration.
Before ordering, compare the part number 3BSC950130R1, 1.8 m length, 14-position HD connector, 9-position female D-Sub connector, and pinout with the original cable.
