Description
Product Description

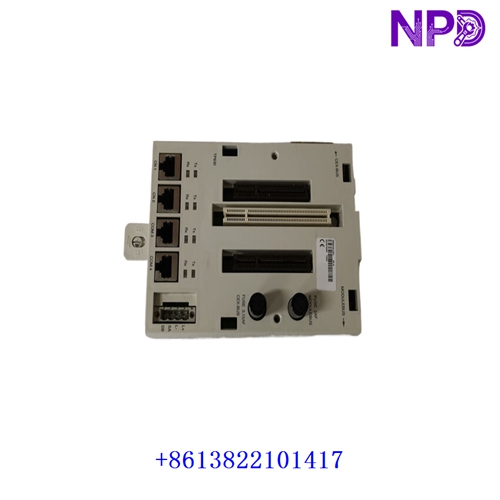

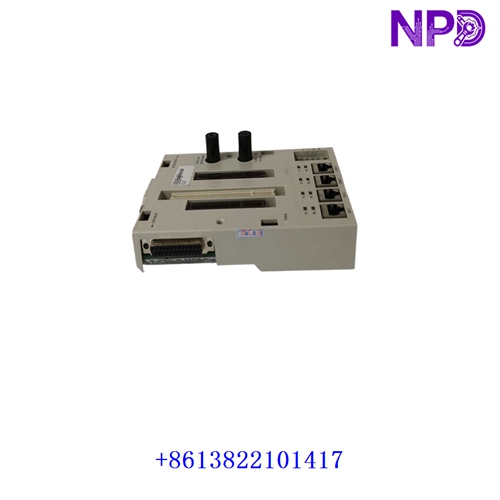

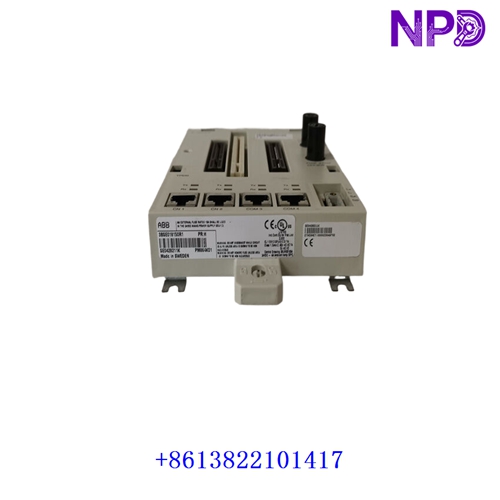

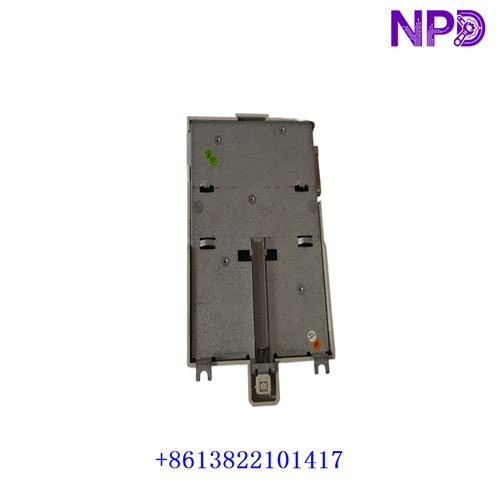

The ABB TP830 (3BSE018114R1) is a processor baseplate designed for ABB AC 800M controllers used in System 800xA and related industrial automation applications. With a nominal width of 115 mm, it provides the physical mounting base and electrical connections for compatible PM8xx processor modules. It also supports the controller’s power connections and interfaces for communication and expansion buses.
The TP830 includes Ethernet and serial interface connections, along with CEX-Bus and ModuleBus connections for compatible system components. It is used with supported controller configurations, including selected PM851, PM856, PM860, PM861, PM864, and PM865 processor units. Before replacing the baseplate, verify the installed CPU model, terminal connections, power arrangement, and hardware revision to ensure system compatibility.
TP830 3BSE018114R1
Product Parameters
- Brand: ABB
- Model: TP830
- Order Number: 3BSE018114R1
- Series: AC 800M / System 800xA
- Product Name: Processor Baseplate
- Product Type: Baseplate and module termination unit
- Compatible Controllers: Selected PM8xx processor modules; confirm the specific CPU and hardware revision
- Nominal Baseplate Width: 115 mm
- Communication Interfaces: 2 Ethernet ports and 2 serial interfaces, subject to the applicable hardware documentation
- Expansion Interfaces: CEX-Bus and ModuleBus
- Power Arrangement: 24 V DC system power connections; verify the installation requirements
- Mounting: DIN rail or compatible cabinet mounting
- Dimensions: Approximately 119 × 189 × 48 mm (W × H × D)
- Weight: Approximately 0.234 kg net; shipping weight may vary
- Place of Manufacture: Sweden
- Country of Origin: Sweden, subject to confirmation from the individual unit’s label
- Product Status: Legacy product; confirm availability by order code
- Discontinued: Reported discontinued by the manufacturer; verify current lifecycle information
Recommended Models
- ABB PM851 — AC 800M processor unit for compatible controller configurations.
- ABB PM856 — AC 800M processor unit supported in applicable TP830 configurations.
- ABB PM857 — Related AC 800M processor; verify compatibility by revision.
- ABB PM860 — AC 800M processor unit for supported baseplate configurations.
- ABB PM861A — AC 800M controller for industrial process automation.
- ABB PM864A — AC 800M processor for compatible control systems.
- ABB PM865 — AC 800M processor unit for supported configurations.
- ABB PM866K01 — AC 800M controller kit; check the included baseplate and hardware revision.
- ABB PM862K01 — AC 800M controller kit for compatible applications.
- ABB PM863K01 — AC 800M processor kit; verify system compatibility.
- ABB TB850 — CEX-Bus terminator used in compatible controller assemblies.
- ABB TB807 — ModuleBus terminator for supported configurations.
- ABB CI854A — PROFIBUS-DP communication interface for compatible AC 800M systems.
- ABB CI867 — Communication interface for supported industrial Ethernet applications.
- ABB TU830V1 — S800 I/O extended module termination unit; a related ABB base/termination product, but not a direct substitute for TP830.
Always verify the exact controller model, baseplate order code, and wiring arrangement before ordering replacement hardware.
