Description
The ABB TP867 is a baseplate module essential for AC 800M controllers in ABB System 800xA, providing mounting and connectivity support for communication interfaces like CI867 Modbus TCP. It enables reliable Ethernet integration in industrial automation setups.
Product Parameters

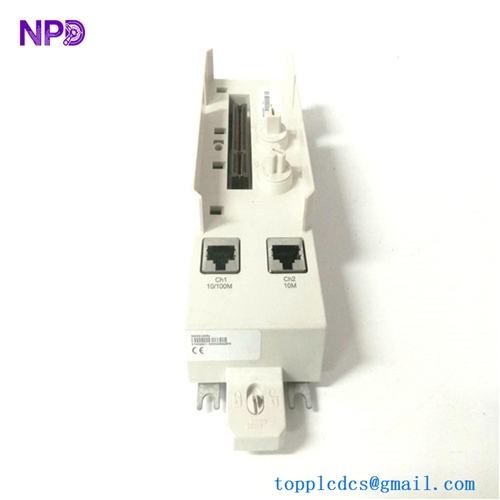

This baseplate features two RJ45 Ethernet connectors (Ch1: 10/100 Mbit/s, Ch2: 10 Mbit/s), 24 VDC typical consumption of 160 mA, and dimensions of 59 mm width x 185 mm height x 127.5 mm depth at 700 g weight. It supports hot swap, module redundancy, and up to 12 units on CEX bus with IP20 protection.
ABB TP867
Datasheet Overview
The datasheet specifies compatibility with HI controllers, CE marking, marine certifications (ABS, BV, DNV-GL, LR), and operation from 0 to +55°C with 5-95% humidity tolerance. It includes galvanic isolation and RoHS/WEEE compliance for rugged industrial networking.
Country of Origin
Manufactured in Switzerland by ABB for global automation standards.
Usage Instructions
Secure the TP867 baseplate to CEX bus segment in AC 800M controller rack, snap on compatible CI module (e.g., CI867), and connect Ethernet cables to RJ45 ports via external switch. Power via 24 VDC bus, verify link LEDs, and configure through System 800xA engineering tools for Modbus or protocol communication.
Common Q&A
- Q: Ethernet speed support?
A: Ch1 up to 100 Mbit/s full duplex; Ch2 10 Mbit/s.
- Q: Redundancy features?
A: Module redundancy and hot swap capable.
- Q: Bus limitations?
A: Max 12 units per CEX segment.
Similar Models
- TP866 (single-channel variant).
- TP868 (fiber optic base).
- CI867 baseplate companion.
- S800 I/O baseplate.
- AC 800M expansion tray.
