Description
The ABB TPPB-02 (3HNA023200-00101) is a modular process control module optimized for ABB industrial automation systems, providing reliable I/O handling and communication for applications in manufacturing, energy, and chemical processing. It ensures precise monitoring and control through advanced interfaces and robust construction.
Product Parameters
-
Module Type: Process control with 16 inputs / 8 outputs.
-
Power Supply: 24 V DC (10-30 V range).
-
Communication: Ethernet, RS485, Modbus RTU, Profibus DP.
-
Operating Temperature: -20°C to +60°C.
-
Dimensions: 150 x 90 x 60 mm; Weight: 0.5 kg.
-
Protection: IP20; Certifications: CE, UL, CSA.
Datasheet Summary
Compact rail-mount design with PID control algorithms for pressure/temperature tasks. Features multi-protocol support and modular expansion for seamless integration into ABB 800xA platforms. High EMC immunity for noisy industrial sites.

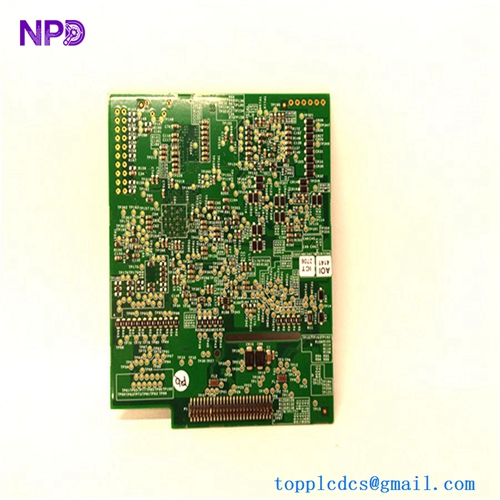

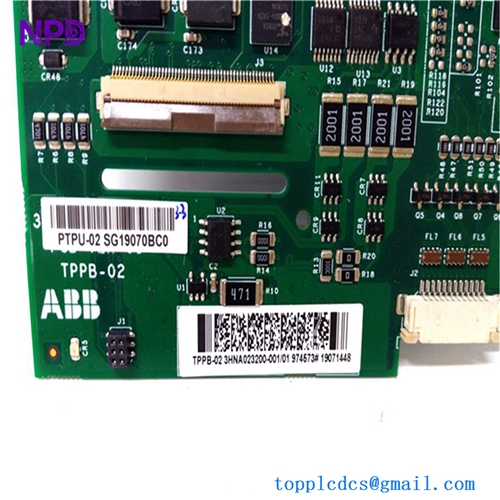

ABB TPPB-02 3HNA023200-00101
Origin
Switzerland (ABB core manufacturing).
Technical Details
Processes analog/digital signals for PID loops and fieldbus networking; snap-in installation with diagnostic indicators. Supports HVAC, pipeline regulation, and reactor control via configurable channels and real-time data exchange.
Common Q&A
-
I/O capacity? 16 inputs, 8 outputs standard.
-
Power input? 24 V DC nominal.
-
Protocols supported? Modbus, Profibus, Ethernet.
-
Temp range? -20°C to +60°C.
-
Mounting? DIN rail or panel.
Similar Models
| Model | Key Features |
|---|---|
| TPPB-01 | Base I/O variant |
| TPS-02 | Enhanced PID module |
| DO880 | Digital output companion |
| AI890 | Analog input alternative |
| CI867 | Communication upgrade |
| SM810 | Safety module match |
| PM866 | Controller pair |
| TB850 | Bus terminator companion |
