Description
- Model: ABB UAC326AE01 (HIEE401481R1)
- Brand: ABB (Switzerland/Germany)
- Series: Unitrol 1000 / 6000 Series (Power Electronics)
- Core Function: High-performance control unit for excitation and voltage regulation systems
- Product Type: Control & Processor Module
- Key Specs: 24 V DC Powered High-speed Signal Processing CAN/RS485/Ethernet Comms
Key Technical Specifications
| Attribute | Specifications |
| Part Number | HIEE401481R1 |
| Device Model | UAC326AE01 |
| Application | Unitrol Excitation Systems / Automatic Voltage Regulators (AVR) |
| Operating Voltage | 24 V DC (+/- 20%) |
| Power Consumption | Approx. 15-20 W |
| Communication Ports | CAN bus, RS485 (Modbus RTU), and Ethernet (Modbus TCP) |
| Analog Inputs | High-resolution PT100/Voltage/Current inputs |
| Mounting | Sub-rack or DIN-rail (system dependent) |
| Operating Temp | -25°C to +55°C |
| Processor Type | High-speed DSP for real-time regulation loops |

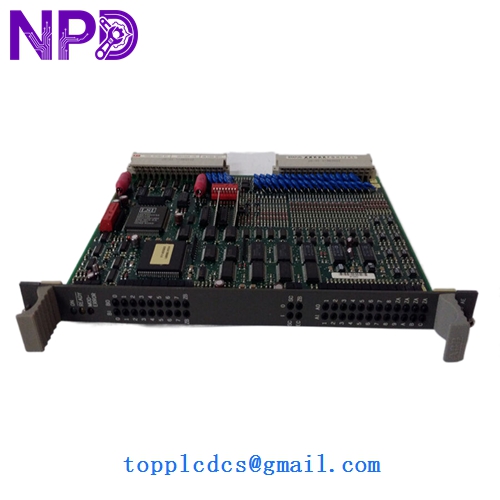

ABB UAC326AE01 HIEE401481R1
ABB UAC326AE01 HIEE401481R1
Application Scenarios & Pain Points
The UAC326AE01 is a critical component in ABB’s Unitrol excitation family. It manages the delicate balance of magnetic flux in synchronous generators. In power plants or marine propulsion systems, the biggest pain point is Voltage Instability. If this control module degrades or suffers from firmware corruption, the generator cannot maintain its setpoint voltage under load changes. This can lead to “Load Shedding” or, in worst-case scenarios, a complete generator trip that blackouts the entire facility.
Typical Application Scenarios:
- Hydroelectric & Thermal Power Plants
Acts as the central “brain” for the Automatic Voltage Regulator (AVR), ensuring stable grid synchronization.
- Marine Propulsion
Controlling the excitation of large main-drive motors on cruise ships or LNG carriers where precision is vital for maneuverability.
- Industrial Co-generation
Managing power quality in paper mills or steel plants where massive motor starts cause significant voltage dips.
Case Study: The “Unstable Grid” Rescue
Background: A remote hydroelectric dam in Southeast Asia utilized Unitrol systems for its 50 MW turbines.
Problem: One unit began showing erratic reactive power (VAR) hunting. The existing UAC326AE01 module was flagging “Internal Calculation Errors,” causing the excitation to oscillate and threatening the local grid stability.
Solution: We supplied a verified UAC326AE01 HIEE401481R1 from our strategic stock.
Result: Once the new module was installed and the parameters were flashed via the CMT (Control Management Tool), the voltage regulation smoothed out immediately. The hunting ceased, and the turbine returned to full-load operation within 24 hours of the part’s arrival.
Compatible Replacement Models
| Original Model | Replacement Model | Compatibility | Main Difference | Change Required | Cost Impact |
| UAC326AE01 | UAC326AE01 | ✅ Direct | N/A | 1:1 Replacement | Base |
| UAC326AE01 | UAC326AE02 | ⚠️ Software | Newer Revision | Firmware check required | +10% |
| UAC326AE01 | UNS0121 | ❌ Incompatible | Different Architecture | Complete system upgrade | +500% |
Engineer’s Note: These modules are highly revision-specific. The HIEE401481R1 part number is the definitive identifier. If your existing module has a different suffix (e.g., R2), please contact us—the hardware might be similar, but the on-board FPGA logic or terminal assignments could vary.
Troubleshooting Quick Reference
| Symptom | Possible Cause | Spare Relevance | Quick Check | Action |
| ERR LED Red | Internal Self-test Fail | ✅ High | Check diagnostic logs via CMT software | Replace module |
| Voltage Fluctuations | PID Tuning / Analog Input | ⚠️ Medium | Verify PT/CT input signals with a multimeter | Recalibrate or replace module |
| COMM LED Off | CAN/Modbus Failure | ⚠️ Medium | Check 120Ω termination resistors on bus | Check wiring before module |
| Module “Dark” (No LEDs) | Power Supply Failure | ❌ Low | Measure 24V DC at the supply terminals | Fix external power source |
❗ Critical Warning: Parameter Backup
Never pull a UAC326AE01 without first attempting to back up the .pst or .config files using the ABB CMT software. These units are shipped with factory-default logic; they will not control your generator out of the box without the specific excitation curves and PID parameters for your turbine.
SOP Quality & Testing Protocol:
We test the UAC326AE01 using a specialized ABB Unitrol Test Bench. We verify the analog-to-digital (A/D) conversion accuracy for voltage sensing and perform a loopback test on all communication ports (CAN and RS485). Each unit is subjected to a 12-hour thermal cycle to ensure no components fail under operating heat. A full Test Certificate including the hardware revision and MAC address is provided.
