Description

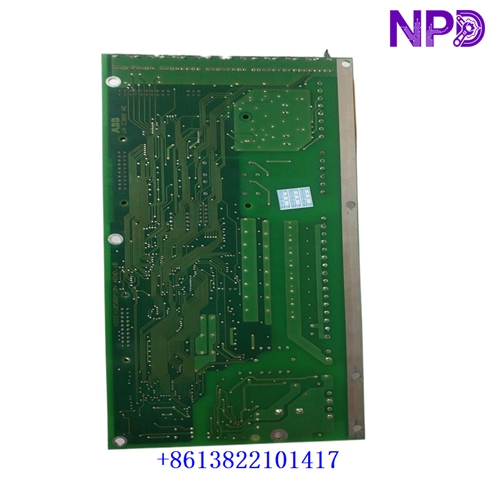

The ABB UAC389AE02 (HIEE300888R0002) is a specialized electronic control and interface module engineered for high-performance industrial automation, distributed control systems, and drive architectures. Serving as a critical analog input or pulse amplifier interface module, this unit is designed to gather, condition, and transmit precise signal data across complex industrial control networks.
Built to rigorous industrial standards, the module ensures robust electrical isolation, high signal integrity, and stable communication in demanding manufacturing and power generation environments. Its standardized form factor enables seamless integration into ABB control racks, supporting continuous and reliable process regulation.
📊 Product Datasheet & Technical Parameters
- Brand: ABB
- Model: UAC389AE02
- Part Number / Catalog Number: HIEE300888R0002
- Series: Industrial Automation and Distributed Control Series
- Product Name: Analog Input / Interface Module
- Place of Manufacture: Sweden / Switzerland (Global ABB Manufacturing Facilities)
- Physical State: Solid-State Printed Circuit Board Assembly
- Dimensions: Standard industrial card layout (~150 mm x 100 mm x 35 mm variant dependent)
- Weight: ~0.60 kg
- Origin of Materials: Europe / Global Sourced Electronic Components
- Power Rating: 24 VDC internal control logic rail supply
🛠️ Operational Specifications & Usage Methods
Installation of the ABB UAC389AE02 module must be conducted by certified technicians in a de-energized, ESD-safe environment utilizing proper electrostatic discharge protection. Carefully align the module along the backplane card guides and insert it securely to prevent damage to edge connectors or interface pins.
Maintain operating cabinet temperatures between 0°C and 55°C, ensuring that relative humidity remains below 95% non-condensing. Keep cooling airflow paths around the module free from external cabling or physical obstruction to maintain proper thermal dissipation.
🛑 Emergency Shutdown Procedure
In the event of an electrical emergency, severe system fault, or critical process alarm, execute the primary facility emergency shutdown to remove power from the control rack assembly.
Isolate all auxiliary 24 VDC control power supplies feeding the backplane. Allow sufficient time for internal circuitry and capacitors to discharge entirely before attempting physical handling or module extraction.
🔍 Troubleshooting & Common Issues
Common operational anomalies typically involve signal errors, communication timeouts, loose slot connections, or environmental dust buildup on terminal pins. If diagnostic indicators show a fault or input error, verify that the module is firmly seated in its backplane slot and that connector pins are free of oxidation.
Use static-safe compressed air to clear any accumulated dust from the circuit board assembly. If operational faults continue after a system reset, verify controller configuration settings and signal wiring integrity.
🧰 Routine Maintenance & Servicing
Establish a semi-annual preventive maintenance routine to verify long-term reliability. Inspect all mounting hardware, terminal blocks, and grounding straps for mechanical loosening caused by vibration or signs of thermal wear.
Clean external module surfaces using a dry, anti-static cloth or brush. Avoid applying liquid solvents, moisture, or cleaning sprays directly onto electronic circuitry.
❓ Frequently Asked Questions (Q&A)
- Q1: What is the primary function of the ABB UAC389AE02 module?
- A1: It serves as an analog input or interface module designed to condition and process critical process signals within ABB distributed control systems.
- Q2: Can this module be hot-swapped during active system operation?
- A2: Maintenance protocols require powering down the rack prior to module insertion or removal to prevent electrical arcing and data corruption.
- Q3: What power supply voltage does this unit require?
- A3: It typically operates on a standard 24 VDC industrial control power supply rail.
