Description
The ABB UCD208A101 3BHE020018R0101 is a specialized electronic interface module used primarily within ABB’s high-power excitation systems, such as the UNITROL series. This module acts as a critical communication and control bridge, facilitating the precise regulation of generator excitation currents. Engineered for the demanding environments of power plants, it ensures stable voltage regulation and synchronized performance of large synchronous machines.
Access comprehensive technical support for ABB UCD208A101 and related excitation components.

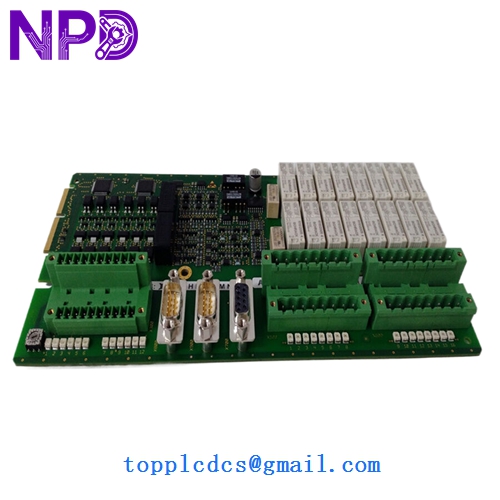

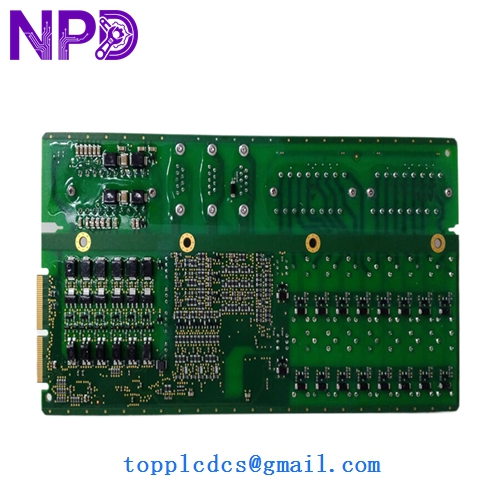

ABB UCD208A101 3BHE020018R0101
ABB UCD208A101 3BHE020018R0101
ABB UCD208A101 3BHE020018R0101
Product Datasheet
Basic Specifications
- Brand: ABB
- Model Number: UCD208A101
- Global ID: 3BHE020018R0101
- Product Series: UNITROL / DCS Excitation
- Function: Control Interface / Signal Processing
- Communication: High-speed internal bus interface
Physical Characteristics
- Dimensions: 233mm x 20mm x 160mm (Standard Eurocard format)
- Weight: 0.45 kg
- Mounting: Rack-mounted / Plug-in module
- Front Panel: Integrated status indicators and diagnostic ports
Manufacturing & Logistics
- Country of Origin: Switzerland
- Enclosure Rating: IP00 (Designed for cabinet installation)
- Storage Temperature: -40°C to +85°C
- Operating Temperature: -5°C to +70°C
Application Fields
The UCD208A101 is predominantly found in Power Generation facilities, specifically within UNITROL 6000 or legacy excitation systems. It is used to manage the excitation of Hydroelectric Generators, Turbo-generators in thermal plants, and Synchronous Condensers. Its role is vital for maintaining grid stability, managing reactive power, and protecting the generator from over-excitation or loss-of-field conditions.
Product Instructions
Installation of the UCD208A101 should only be performed while the excitation system is in a safe, de-energized state unless the specific sub-rack supports live insertion. Carefully align the module with the card guides in the UNITROL rack and push until the DIN connectors are fully engaged. Secure the module using the front panel screws to ensure proper grounding and vibration resistance. Configuration is typically handled via ABB’s CMT (Control Management Tool) software. It is essential to verify that the jumper settings on the board match the previous unit if being used as a direct replacement.
Comparison of Similar Models
The UCD208A101 (3BHE020018R0101) is often compared to the UCD208A102, which may feature different firmware or hardware revisions for specific generator types. While the UCD240 series offers more advanced digital signal processing for modern upgrades, the UCD208 remains the standard for many existing UNITROL installations due to its proven reliability. Unlike the COB series communication boards, the UCD208 focuses more on the direct interface between the control logic and the power electronics firing circuits.
Frequently Asked Questions (Q&A)
Q: Can the UCD208A101 be used as a universal replacement for all UNITROL systems? A: No, it is specific to the hardware architecture of the UNITROL 5000/6000 series. Always check the 3BHE part number to ensure compatibility with your specific system revision.
Q: What is the primary cause of failure for these modules? A: Common issues include thermal stress from long-term operation in high-temperature cabinets and degradation of electrolytic capacitors. Regular cleaning of cabinet filters helps extend the module’s lifespan.
Q: Does this module require manual calibration after installation? A: The module itself is factory-calibrated; however, once installed, the excitation system as a whole may require a “null-balance” check or software synchronization to ensure it aligns with the redundant controller’s parameters.
