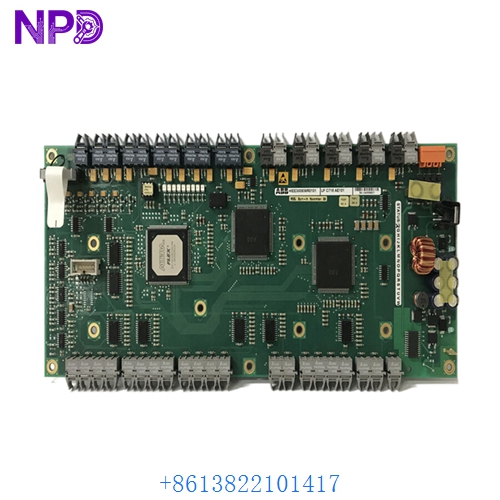

Description
- Model: ABB UFC718AE101
- Primary Part Number: HIEE300936R0101
- Secondary Assembly: HIEE410516P201 (PCBA / Sub-assembly)
- Brand: ABB
- Series: UNITROL 6000 / MEGADRIVE-LCI / AC800PEC
- Core Function: Universal Signal Conditioning and Pulse Generation Interface
- Product Type: Control & Filtering PCB Module
- Key Specs: High-speed Opto-coupling Noise Filtering Redundant Channel Support
- Logic Interface: Connects directly to the AC800PEC high-speed control bus.
- Signal Processing: Advanced analog and digital filtering for encoder and pulse feedback.
- Pulse Outputs: High-current drive capability for triggering pulse transformers or gate drivers.
- Isolation: Superior galvanic isolation to protect logic circuits from power-stage transients.
- Frequency Response: Optimized for high-speed switching frequencies (up to several kHz).
- Diagnostics: On-board status LEDs for ‘Power’, ‘Signal Activity’, and ‘Fault’ detection.
- Form Factor: Specialized plug-in module for ABB high-power control frames.
- I/O Types: Supports differential and single-ended pulse signals (MPU/Encoder).
- Voltage: 24V DC internal rail monitoring.
ABB UFC718AE101 HIEE300936R0101 HIEE410516P201
ABB UFC718AE101 HIEE300936R0101 HIEE410516P201
ABB UFC718AE101 HIEE300936R0101
Application Scenarios & Pain Points
In a large synchronous motor starter or a generator excitation system, the UFC718AE101 is responsible for the “Cleanliness” of the timing signals. The primary pain point I see is “Pulse Jitter” or “Signal Degradation.” Because this board handles low-voltage signals in the presence of massive magnetic fields, the filtering components (capacitors/op-amps) can age. When they drift, the firing pulses become unstable, leading to “Harmonic Trips” or “Thyristor Misfires” that can literally rattle the entire turbine floor.
Typical Application Scenarios:
- UNITROL 6000 Static Excitation Interfacing the speed/position feedback from the shaft encoder to the AVR (Automatic Voltage Regulator) logic.
- MEGADRIVE-LCI (Load Commutated Inverters) Conditioning the synchronization signals from the grid and the motor terminals to ensure perfect thyristor commutation.
- High-Power Rectifiers Filtering noise out of the current-sensing loops in aluminum smelting or chemical electrolysis plants.
Case Study: The “Phantom Phase Trip” in a Pump Station
Background: A massive water pumping station was experiencing random “Phase Unbalance” trips on their LCI drive. The site electricians replaced the thyristors twice, but the problem kept returning.
The Problem: We used a high-speed analyzer on the HIEE300936R0101 outputs. We found that the UFC718 was failing to filter out a specific high-frequency noise spike from a nearby transformer. This noise was being interpreted as a “Ghost Pulse,” causing the thyristors to fire out of sequence.
The Solution: We provided a “New Surplus” UFC718AE101. Before shipping, we verified the filter’s “Cut-off Frequency” on our test bench to ensure it was within the strict HIEE specifications.
The Result:
- Resolution: The module was swapped during a 2-hour maintenance window.
- Outcome: The “Phase Unbalance” alarms vanished, and the pump has been running 24/7 for 14 months since.
- Client Feedback: “The HIEE410516P201 sub-number matched our original perfectly—zero compatibility issues.”
Compatible Replacement Models
| Original Model | Replacement Model | Compatibility | Main Difference | Integration Effort |
|---|---|---|---|---|
| UFC718AE101 | UFC718AE01 | ⚠️ Limited | Older revision; less noise immunity | Check your EMI environment |
| UFC718AE101 | UFC719 | ❌ Incompatible | Next-generation interface | Totally different pinout |
| UFC718AE101 | HIEE300936R0001 | ✅ Direct Replace | Same base hardware R-series | Drop-in; zero config |
Troubleshooting Quick Reference
| Symptom | Likely Cause | Board Related? | Quick Check | Action |
|---|---|---|---|---|
| ‘PULSE’ LED Dark | Lost Feedback Signal | ❌ Low | Check the field encoder or MPU wiring. | Repair cable or replace sensor. |
| ‘FAULT’ LED Red | Internal Logic Failure | ✅ High | Observe if the LED stays red after a reboot. | Replace the UFC module. |
| ‘PWR’ LED Blinking | Under-voltage Rail | ⚠️ Medium | Measure 24V DC at the module input. | Check the rack power module (PDD). |
| High THD Alarms | Failed Filter Stage | ✅ High | Check signal “cleanliness” with a scope. | Replace board to restore filtering. |
Integrator’s “Field Tips”:
- The “HIEE” Cross-Reference: ABB often labels these with three different numbers (UFC, HIEE-R, and HIEE-P). When you order a spare, always verify the R-number (HIEE300936R0101) as it defines the specific hardware configuration and revision level.
- Cleaning the “Backplane”: These modules use high-density connectors. In “dirty” industrial environments (like cement or steel mills), conductive dust can settle between the pins. Always give the rack a quick blast of clean, dry air before sliding in a new UFC718.
- Grounding is Life: The “Filtering” part of the UFC718 relies on a solid chassis ground. Ensure the module’s front-panel screws are tightened to the rack frame; a loose screw can negate the noise filtering you’re paying for!
