Description
- Model: ABB UFC760BE1142 (Material No: 3BHE0Q4573R1142)
- Brand: ABB (Switzerland)
- Series: AC 800PEC / PEC800 Control System
- Core Function: High-performance processing for power electronics and excitation systems
- Type: Power Electronics Controller (PEC) Main Processor
- Key Specs: Combines the power of a PLC with the speed of an FPGA; optimized for MV drives and traction
- Processing Architecture: Dual-core processing with integrated FPGA for sub-microsecond control loops
- Control Cycle: Down to 25 μs for high-speed power electronics switching
- Communication Interfaces:
- Multiple Optical ModuleBus ports for I/O expansion
- Ethernet (TCP/IP) for engineering and HMI
- Fast serial links for peer-to-peer communication
- Application Areas: ACS6000, UNITROL 6000, and specialized DC traction converters
- Programming: Fully compatible with ABB Control Builder M and MATLAB/Simulink (via Coder)
- Input Power: 24 V DC nominal (from stabilized system supply)
- Operating Temp: 0°C to +60°C (Extended industrial range)
- Diagnostics: Integrated high-resolution transient recorder for fault analysis

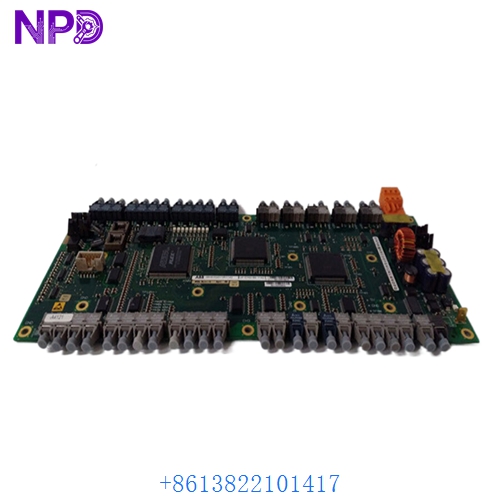

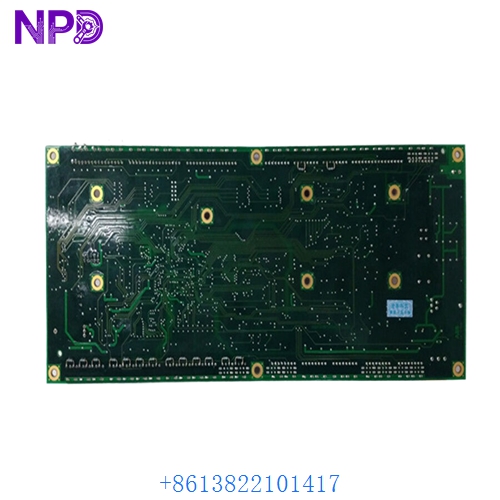

ABB UFC760BE1142 3BHE0Q4573R1142
ABB UFC760BE1142 3BHE0Q4573R1142
ABB UFC760BE1142 3BHE0Q4573R1142
Installation & Configuration Guide
Phase 1: Preparation (20 minutes)
⚠️ Critical Warning: The UFC760BE1142 is the central “brain” for high-power conversion systems. A firmware or parameter mismatch can cause incorrect IGBT switching, leading to catastrophic equipment failure. Always verify that the application software version on your engineering PC matches the existing site backup before attempting a download.
Required Items:
- Grounded anti-static wrist strap (Essential for FPGA-based hardware).
- Fiber optic cleaning kit for ModuleBus connections.
- Engineering PC with ABB PEC800 Toolset.
Phase 2: Hardware Installation (15 minutes)
Steps:
- De-energize: Ensure the 24 V DC control power is isolated.
- Fiber Optic Care: Carefully disconnect the optical fibers. Do not bend them beyond a 30 mm radius. Use dust caps on disconnected strands.
- Removal: Loosen the mounting screws and slide the ABB UFC760BE1142 3BHE0Q4573R1142 out of the subrack.
- Seating: Slide the new module in firmly. Ensure the rear DIN connectors are perfectly aligned to avoid bent pins. Reconnect the optical fibers to the correct ports (TX/RX orientation).
Phase 3: Commissioning & Loading (40 minutes)
The Activation Process:
- Boot Test: Restore power. The “Run” LED should eventually flash, indicating the module is waiting for an application.
- Firmware Verification: Connect via Ethernet. Use the PEC Toolset to check the base firmware version. If it differs from the original, perform a “Firmware Download” first.
- Application Load: Download the MATLAB/Simulink or Control Builder application.
- Health Check: Monitor the “Task Execution Time.” If the CPU load is unusually high, verify that the ModuleBus fiber links are not reporting CRC errors.
Customer Cases & Industry Applications
Case 1: Aluminium Smelter Excitation Recovery
Situation: An aluminium smelter in the Middle East used a UNITROL 6000 excitation system. The UFC760BE1142 controller failed during a grid disturbance, leaving the plant without voltage regulation. Task: Replace the high-speed controller to restore stable power to the rectifiers. Action: We shipped a New Surplus unit via Priority Express. Result: The controller was replaced and commissioned within 48 hours. The plant avoided a long-term production bottleneck that would have cost millions in lost output.
Case 2: Marine Propulsion (Cruise Ship)
Situation: A cruise ship utilizing ACS6000 drives for propulsion reported intermittent processor resets on one of the PEC800 modules. Task: Secure a factory-new condition replacement to ensure vessel safety during international voyages. Action: The customer purchased a New Surplus unit to ensure the highest possible reliability and zero-hour component life. Result: The “New Surplus” status met the ship’s stringent maritime safety standards, providing the chief engineer with a reliable, long-term solution for the propulsion control rack.
Frequently Asked Questions (FAQ)
Q: What is the difference between UFC760 and UFC762? A: The UFC760 series is the standard high-performance processor, while the UFC762 often features higher memory density or specialized communication configurations. The UFC760BE1142 is a widely used revision in the ACS6000 and UNITROL 6000 platforms.
Q: Why buy “New Surplus” for a PEC800 module? A: These modules handle high-speed switching logic. A “Used” module from a 24/7 industrial environment has been exposed to significant electrical and thermal stress. A New Surplus UFC760BE1142 offers the original dielectric integrity and component life of a new part.
Q: Does the module come with the application software pre-loaded? A: No. These modules ship with factory-default firmware. You must use your site-specific application backup (typically a .pcp or .hex file) to load the logic.
Q: My “Fault” LED is on. Is the module defective? A: Not necessarily. In my experience, a Red Fault LED on a new PEC800 usually means “No Application Loaded” or “Fiber Optic Link Failure.” Check your communication cables before assuming a hardware fault.
Q: Is this part compatible with the latest ABB 800xA systems? A: Yes, the PEC800 (UFC760) family can be integrated into 800xA systems via the AC 800M controller or via direct Ethernet communication, depending on your system architecture.
