Description

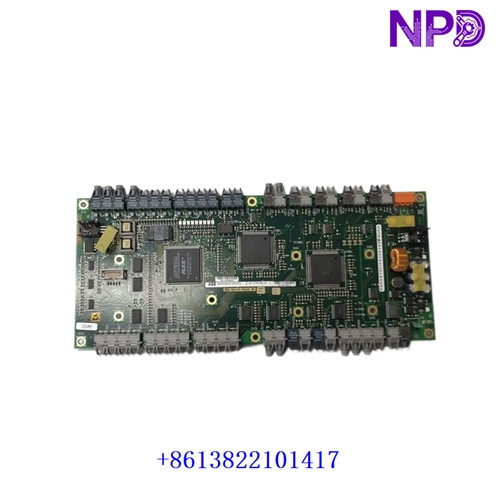

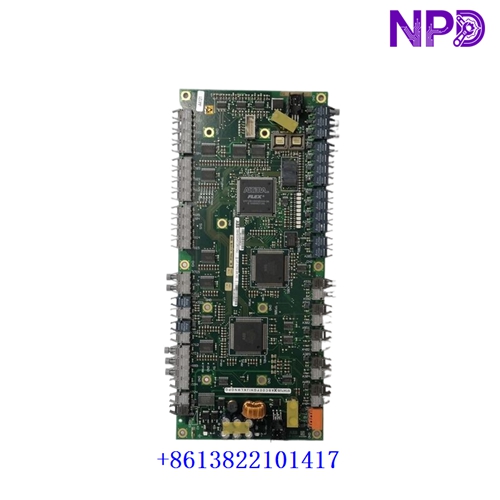

The ABB UFC760BE42 (Part Number: 3BHE004573R1042) is a specialized microprocessor-based control and interface module designed primarily for ABB UNITROL excitation systems and high-power industrial drive architectures. It serves as a core processing and communication node, handling fast data acquisition, regulation algorithms, and precise firing control for synchronous generators and large industrial motors. Engineered for high reliability and rapid response times, it ensures stable excitation control, voltage regulation, and robust system synchronization in critical power generation and heavy industrial environments.
📊 Product Datasheet
| Parameter | Value |
| Brand | ABB |
| Model | UFC760BE42 / 3BHE004573R1042 |
| Series | UNITROL / Industrial Drive Control Series |
| Product Name | Excitation Control and Interface Board |
| Origin | Switzerland / Germany |
| Product Status | Active / Industrial Automation Spare Part |
| Dimensions | Standard Rack-Mount PCB Format |
| Weight | 0.8 kg |
| Country of Origin | Switzerland (CH) / Germany (DE) |
| Power Rating | Low Voltage DC Backplane Powered |
🛠️ Operation Standards and Usage Methods
🔸 Preparation and Handling: Always ensure the control rack or cubicle is completely de-energized before handling the module. Wear an anti-static wrist strap at all times to prevent electrostatic discharge damage to sensitive onboard integrated circuits.
🔸 Installation Procedure: Carefully align the UFC760BE42 board with the designated slot guides in the chassis. Push it evenly and firmly until the edge connectors engage completely with the backplane, then secure any mechanical locking levers.
🔸 Power-Up and Initialization: Energize the system power supply and monitor the onboard diagnostic LEDs. Verify that the module initializes successfully, establishes communication with neighboring controllers, and shows no active hardware fault indicators.
🚨 Emergency Shutdown Procedures
🔺 Trip Execution: In the event of a severe excitation fault, overexcitation warning, or critical controller failure, immediately issue an emergency trip command via the main supervisory control system or emergency pushbuttons.
🔺 Field De-Energization: Trigger the hardware fast-discharge circuit to rapidly collapse the magnetic field of the synchronous machine and safely isolate the excitation power electronics.
🔺 Post-Shutdown Inspection: Allow the system to cool completely and inspect the control board and associated fiber-optic or ribbon cables for any physical anomalies before attempting any restart or troubleshooting sequence.
🔍 Troubleshooting and Common Issues
⚠️ Issue 1: Module Communication Loss or Fault LED Active
Troubleshooting Method: Check that the board is securely seated in its backplane slot. Inspect all fiber-optic links and internal communication cables for proper connection, secure latching, and absence of physical damage.
⚠️ Issue 2: Unstable Excitation Output or Regulation Errors
Troubleshooting Method: Verify that the auxiliary power supply voltages feeding the rack are stable and within tolerance. Review diagnostic logs through the engineering software to identify specific internal error codes or sensor feedback discrepancies.
⚙️ Routine Maintenance and Care
🔹 Periodic Visual Inspection: Conduct a monthly inspection of the control cabinet to check for dust accumulation, secure terminal connections, and any signs of component stress or thermal discoloration.
🔹 Environmental Management: Ensure that the control room or cabinet air conditioning maintains stable ambient temperatures and relative humidity levels to prevent premature electronic aging.
🔹 Diagnostic Log Reviews: Regularly check system diagnostic files and event logs via the engineering tool interface to monitor performance trends and preemptively address minor warnings.
💡 Frequently Asked Questions Q&A
❓ Q1: Can the UFC760BE42 board be hot-swapped while the system is live?
💬 A1: No. Hot-swapping is strictly prohibited. The system and rack must be fully powered down before inserting or removing this control board to prevent electrical damage.
❓ Q2: What is the primary application of this module?
💬 A2: It is primarily used in ABB UNITROL excitation systems and heavy-duty industrial drives to manage precise control loops, firing pulses, and system communication.
❓ Q3: How should a spare UFC760BE42 board be stored?
💬 A3: Spare units must be kept in their original anti-static packaging inside a dry, temperature-controlled environment free from dust, vibrations, and corrosive gases.
