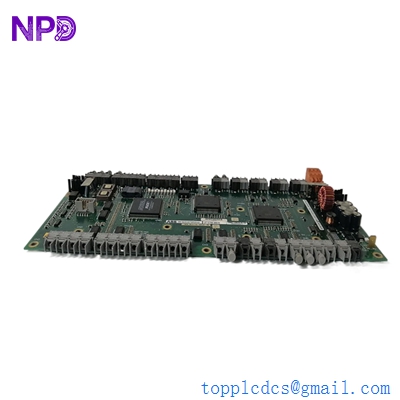

Description
- Model: UFC760BE43
- Ordering Code: 3BHE004573R0043
- Brand: ABB (Switzerland)
- Series: UNITROL 6000 / ACS6000 / MEGADRIVE-LCI
- Core Function: Central processing and signal conditioning for high-power excitation and converter systems
- Product Type: Control & Communication Board (New Surplus)
- Key Specs: Integrated FPGA logic | Fiber optic communication ports | High-speed I/O processing
- Hardware Revision: BE43 (Optimized for improved thermal stability and signal processing)
- Communication Interface:
- Multiple high-speed fiber optic channels (HFBR) for gate unit control
- RS-485 / Ethernet options for local control panel (LCP) interface
- Logic Engine: High-density FPGA for real-time firing angle calculation and protection logic
- Protection Features: Overcurrent, overvoltage, and pulse monitoring integrated at the hardware level
- Power Supply: 24 VDC nominal (Internal voltage regulation for logic components)
- Isolation: Reinforced galvanic isolation between control signals and power electronics interfaces
- Application: Used in large-scale generator excitation (UNITROL) and medium voltage drives (ACS)
ABB UFC760BE43 3BHE004573R0043
Installation & Configuration Guide
Phase 1: Preparation (Pre-Installation)
⚠️ Safety First:
- Ensure the system is completely de-energized. For excitation systems, verify the generator is at a standstill and the field breaker is open.
- Firmware Compatibility: The UFC760BE43 is a programmable platform. Verify if your application requires a specific firmware load or if the board retrieves it from the AC 800PEC master controller.
- ESD Protocol: Use a grounded wrist strap. The fiber optic transceivers and FPGA on this board are highly sensitive to static.
Phase 2: Removal of Faulty Module
- Fiber Optic Handling: Carefully remove fiber optic cables. Do not bend them sharply (keep radius > 50mm). Use dust caps on both the cables and the module ports immediately.
- Mounting: Unscrew the retaining fasteners from the rack or sub-plate.
- Extraction: Slide the board out of the DIN rail or rack guides. Avoid touching the exposed circuitry or the rear multi-pin connectors.
Phase 3: New Module Installation
- Visual Check: Inspect the rear pins for any alignment issues.
- Insertion: Align the UFC760BE43 and push firmly until seated. Tighten the retaining screws to ensure a solid ground path through the chassis.
- Connectivity: Reconnect the fiber optics. Ensure the “Transmitter” and “Receiver” labels match the original configuration.
Phase 4: Commissioning & Testing
- Control Power Up: Apply 24V control power. The “OK” or “Power” LED should be solid green.
- Communication Sync: Monitor the “Link” LEDs on the fiber optic ports. A flickering LED typically indicates active data exchange with the gate units.
- Software Verification: Use the ABB Excitation Tool or Control Builder to confirm the board is recognized and that the hardware revision (BE43) matches the system project.
ABB UFC760BE43 3BHE004573R0043
Customer Cases & Industry Applications
Case 1: Restoring Grid Stability at a Hydroelectric Dam
Situation: A major hydroelectric facility experienced an excitation failure on a 200MW generator. The diagnostics pointed to a processing error on the UFC760 board, causing unstable reactive power control and eventually a protective trip.
Task: The plant was under pressure to return to the grid during peak demand. ABB’s standard lead time for this specific revision was several weeks.
Action: We provided a New Surplus UFC760BE43 (3BHE004573R0043) from our Xiamen warehouse. It was shipped via international priority and arrived on-site within 72 hours.
Result: The new board was installed and synchronized with the AC 800PEC controller. The generator successfully passed its AVR (Automatic Voltage Regulator) step-response test and was back online within 4 days of the initial failure.
Case 2: Maintenance Refresh for a Mining Drive System
Situation: A copper mine used ACS6000 medium voltage drives for their conveyor systems. As part of a 10-year lifecycle maintenance plan, they identified the control boards as a high-risk failure point due to the dusty and vibrating environment.
Task: They needed “New Surplus” parts to ensure the highest possible reliability, as used or refurbished parts might have internal micro-cracks or aged capacitors.
Action: We supplied a pair of UFC760BE43 units. These units were verified to be in original factory condition with zero operational hours.
Result: The mine successfully refreshed their control racks during a scheduled shutdown, extending the drive’s service life by another decade without the need for a full system replacement.
ABB UFC760BE43 3BHE004573R0043
Frequently Asked Questions (FAQ)
Q: Can a UFC760BE43 replace a UFC760BE41? A: Usually, yes. The “BE43” is a later revision of the “BE” series. However, you should verify with your system documentation if any specific firmware parameters need to be adjusted to account for minor hardware updates.
Q: Does this board include the firmware? A: The board contains the bootloader and basic logic, but the site-specific application firmware is typically downloaded from the system’s central controller (like a PM866 or AC 800PEC) upon startup.
Q: Why is “New Surplus” better for these control boards? A: Control boards in power electronics environments are subject to high-frequency noise and thermal stress. Refurbished boards may have degraded optocouplers or logic chips. New Surplus parts offer the reliability of a brand-new factory part at a lower cost.
Q: What is the significance of the 3BHE004573R0043 number? A: This is the specific ABB ordering code. The “R0043” suffix specifically correlates to the “BE43” hardware revision. It is critical to match these numbers to ensure the board fits your physical rack and software environment.
Q: How do I troubleshoot a “Link Fail” LED on the fiber optic port? A: First, check the fiber optic cable for breaks or sharp bends. If the cable is good, ensure the port on the UFC760 is clean. If the LED remains off, it may indicate a failure in the transceiver on the board or the corresponding gate unit.
