Description
The ABB UFC762AE101 (Part Number: 3BHE006412R0101) is a high-performance Control Unit within the AC800PEC (Power Electronics Controller) family. It serves as a central processing component designed specifically for the rigorous demands of high-power electronics, such as excitation systems, wind turbine converters, and large-scale industrial drives.
Product Parameters (Datasheet)
- Model Number: UFC762AE101
- Part Number: 3BHE006412R0101
- Processor Type: High-speed processing core for real-time control
- Communication Ports: * 4 x Fiber Optic ports (SFP/Link) for high-speed I/O communication
- 1 x Ethernet Service port (RJ45)
- Backplane connector for rack integration
- Scan Time: Capable of sub-millisecond control cycles (Fast Loop)
- Power Supply: 24 V DC nominal (via backplane)
- Operating Temperature: 0°C to +60°C
- Status Indicators: LED display for Run, Error, and Network Link status

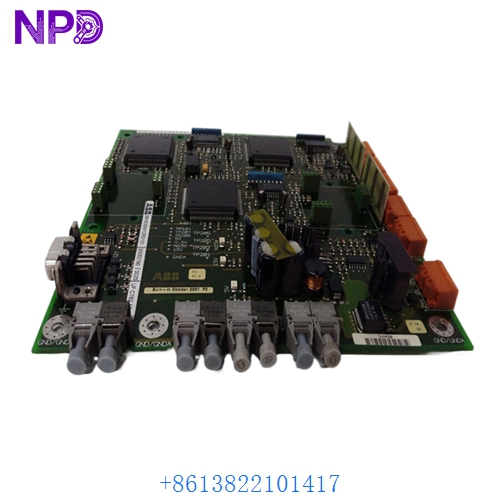

ABB UFC762AE101 3BHE006412R0101

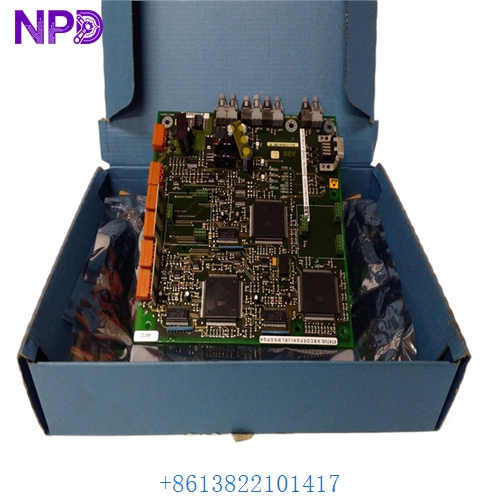

ABB UFC762AE101 3BHE006412R0101
Country of Origin
This sophisticated control module is engineered and manufactured by ABB in Switzerland, the global center for ABB’s high-power conversion and grid stability technologies.
Application Fields
The UFC762AE101 is a critical “brain” in heavy-duty power applications:
- Excitation Systems (UNITROL 6000): Controlling the field current of large generators in hydro and nuclear plants.
- Wind Power Converters: Managing the high-frequency switching and grid synchronization of offshore wind turbines.
- Static Frequency Converters (SFC): Controlling power flow between different grid frequencies for railway and maritime applications.
- MEGADRIVE-LCI: Operating high-power Load Commutated Inverters for massive industrial motors.
- HVDC Systems: Providing the rapid control logic required for High Voltage Direct Current transmission.
Product Usage Instructions
- Rack Installation: Mount the module into the designated slot of an AC800PEC subrack. Ensure the mechanical guides are aligned and the module is locked to secure the backplane connection.
- Fiber Optic Cabling: Use high-quality fiber optic links for the SFP ports to connect to remote I/O packs (such as the P800 series). This ensures the necessary galvanic isolation between the control unit and high-power stages.
- Software Configuration: Program the unit using the ABB PEC Tool environment. This specialized software allows for both high-level process logic and low-level firing pattern generation.
- Cooling: Ensure the cabinet’s fan units are operational. The high-speed processor in the UFC762 requires steady airflow for thermal stability.
- Grounding: Verify that the subrack and the module’s front panel are properly bonded to the system ground to minimize electromagnetic interference (EMI).
Product Technical Description
The UFC762AE101 is designed to bridge the gap between digital automation and power electronics. Technically, it handles the “Fast Loop” control—tasks that must occur every few microseconds, such as pulse width modulation (PWM) and over-current protection. By utilizing fiber optic communication, the UFC762 provides inherent immunity to the extreme electrical noise found in power conversion environments. The “AE101” revision indicates a specific hardware baseline with optimized memory handling and enhanced communication throughput compared to earlier UFC models. This allows for more complex control algorithms, such as model predictive control, to be executed in real-time.
Q&A (Common Questions)
- Q: Is the UFC762AE101 interchangeable with the UFC762AE01?
- A: While they share the same base architecture, the “101” variant often includes hardware improvements or component updates for longevity. Always verify firmware compatibility in the PEC Tool before swapping.
- Q: What is the purpose of the fiber optic ports?
- A: They are used for high-speed, noise-immune communication with remote I/O and other controllers, ensuring the safety of the control circuit in high-voltage applications.
- Q: Can this module be used in a standard AC800M system?
- A: No. The UFC series is exclusive to the AC800PEC line and uses different engineering tools and hardware backplanes than the AC800M (Process Automation) series.
- Q: How do I perform a factory reset?
- A: A reset is typically performed via the Ethernet service port using the PEC Tool or by specific sequences of the onboard DIP switches (refer to the technical manual for the exact procedure).
Similar Model Recommendations
- ABB UFC760AE: Earlier version or variant with fewer communication ports.
- ABB PPCC322BE: Another common AC800PEC processor module used in UNITROL systems.
- ABB PCD231B: Communication interface board often used alongside the UFC series.
- ABB PP D113: Processor module for specific PEC rack configurations.
- ABB UNITROL 6000: The complete excitation system platform that utilizes this module.
For technical manuals, firmware support, or to request a quote for the ABB UFC762AE101, please contact our high-power control specialists.
