Description
- Model: UFC762AE101
- Part Number: 3BHE006412R0101
- Brand: ABB (Switzerland)
- Series: AC 800PEC / UNITROL 6000
- Core Function: High-Performance Processing and Control Unit
- Product Type: Main Control Board / Power Electronics Controller
- Key Specs: 24 VDC Supply High-Speed Optical Link FPGA-based Control
- Processor Architecture: High-speed RISC processor paired with powerful FPGA for real-time control loops.
- System Platform: AC 800PEC (Power Electronics Controller) combining the best of PLC and DSP capabilities.
- Interfaces:
- Multiple Fiber Optic (SFP) ports for high-speed I/O communication.
- RS-485 / RS-232 for local diagnostics.
- Ethernet interface for DCS integration and PC tools.
- Memory: Robust Flash and RAM capacity for complex control algorithms and event logging.
- Power Supply: 24 VDC nominal.
- Cycle Time: Capable of sub-millisecond control loop execution (ideal for converter control).
- Environment: Industrial-grade vibration and EMC shielding for installation near power converters.

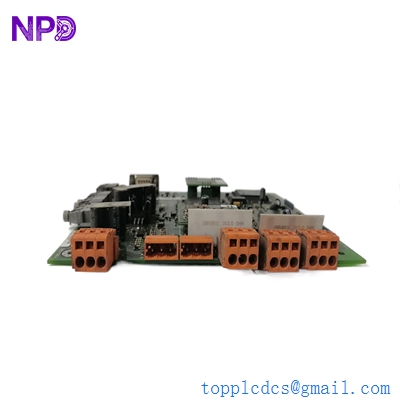

ABB UFC762AE101 3BHE006412R0101
Application Scenarios & Pain Points
The UFC762AE101 is the “command center” for ABB’s high-power electronics systems, specifically the UNITROL 6000 series used in large-scale generator excitation. It is an AC 800PEC variant designed to handle the extremely fast response times required to manage power grid stability and synchronous machine regulation. If this board fails, the generator loses its excitation control, leading to an immediate “Load Shed” or “Unit Trip”—costing utility companies millions in lost generation.
Typical Application Scenarios:
- UNITROL 6000 Excitation Systems Managing the field current of massive turbo-generators in nuclear, hydro, and thermal power plants.
- High-Power Converters (PCS) Controlling the firing pulses for thyristor or IGBT bridges in Static Var Compensators (SVC) or Battery Energy Storage Systems (BESS).
- Medium Voltage Drives (ACS6000) Acting as the high-level brain for controlling motor torque and flux in heavy industrial drives.
- Synchronous Motor Control Regulating the excitation of large motors used in mining crushers or gas compressors.
Case Study: The “Voltage Dip” Cascade
Background: A hydroelectric dam was suffering from unexplained voltage oscillations during peak load transitions. The existing control logic seemed too “slow” to catch the transient events.
The Problem: The facility was using a legacy control board that lacked the FPGA processing speed of the UFC762AE101. The controller couldn’t adjust the thyristor firing angles fast enough to compensate for the grid reactive power swings.
The Solution: The plant upgraded to the UFC762AE101 (3BHE006412R0101). Because this board features dedicated hardware logic in the FPGA for PWM (Pulse Width Modulation) generation, the response time dropped from 10ms to less than 1ms.
Result: The voltage oscillations were eliminated. The dam was able to operate at full capacity even during volatile grid conditions, significantly increasing revenue during peak demand.

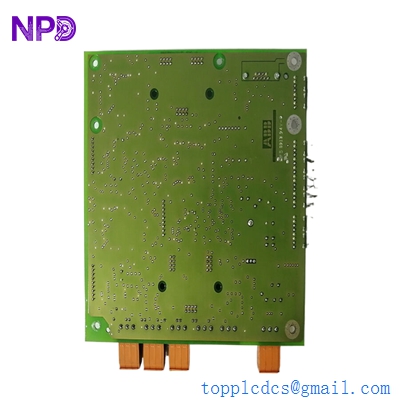

ABB UFC762AE101 3BHE006412R0101
Similar Product Recommendations
The UFC762 series has several sub-variants. The “AE101” designation identifies the specific memory and I/O configuration required for the UNITROL series.
| Model Number | Compatibility | Main Difference | Integration Note |
| UFC762AE101 | ✅ Direct | 3BHE006412R0101 | Standard for UNITROL 6000 systems. |
| UFC762AE102 | ❌ Incompatible | Different I/O Mapping | Used in specialized ACS drives. |
| UFC760 | ⚠️ Legacy | Older Generation | Requires a firmware and baseplate upgrade to move to UFC762. |
ABB UFC762AE101 3BHE006412R0101
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance | Action |
| “System Fail” LED | Firmware Corruption | ✅ High | Attempt a firmware reload via the Ethernet port using ABB PECTool. |
| Optical Link Down | Faulty SFP Module | ✅ High | Inspect the fiber optic cables and replace the SFP transceiver on the board. |
| Intermittent Trips | Overheating | ⚠️ Medium | Check the cooling fans in the UNITROL cubicle; these boards generate significant heat. |
| No Boot / Black LED | 24V Power Loss | ⚠️ Medium | Verify the internal DC/DC converter on the board is receiving 24V. |
Technical SOP & Quality Guarantee
Power electronics controllers require specialized testing due to their high-speed nature:
- Optical Loopback Test: We verify every fiber optic port at full bandwidth to ensure no data “jitter” or packet loss.
- FPGA Logic Verify: We load a test excitation algorithm to ensure the hardware logic gates (FPGA) are responding to inputs within microsecond tolerances.
- Ethernet / PECTool Sync: We verify that the board can successfully communicate with ABB’s engineering software for parameter tuning.
- High-Temp Burn-in: Given its role in high-power environments, we test the board at 60°C for 24 hours to ensure zero thermal drift in the analog-to-digital converters.
Engineer’s Pro-Tip: When replacing a UFC762AE101, do not forget to transfer the Flash Memory card (if used) from the old unit to the new one. The control parameters and machine-specific PID settings are often stored there. Without them, the board is just a blank slate and won’t be able to synchronize with your generator.
