Description
The ABB UFC911B106 3BHE037864R0106 is a high-performance control unit primarily utilized within ABB’s power electronics systems, such as the UNITROL excitation systems and various AC/DC converters. This module serves as a central processing component, handling complex regulation algorithms and high-speed signal processing. Built with industrial-grade reliability, it ensures precise control over electrical parameters, contributing to the stability and efficiency of large-scale power conversion and motor drive applications.
For professional automation and power control hardware, explore the ABB UFC911B106 and related modules.
Technical Datasheet
Product Identification
- Model Number: UFC911B106
- Part Number: 3BHE037864R0106
- Manufacturer: ABB
- System Family: UNITROL / Power Electronic Controller (PEC)
Physical Characteristics
- Dimensions: 233 mm x 160 mm x 30 mm
- Weight: 0.72 kg
- Mounting: Standard Subrack / Internal Rack Mounting
- Country of Origin: Switzerland
Operational Specifications
- Microprocessor: High-speed DSP / FPGA architecture
- Supply Voltage: 24V DC (Internal system supply)
- Communication: High-speed fiber optic link / ModuleBus
- Operating Temperature: 0°C to +70°C
- Isolation: Built-in galvanic isolation for sensitive control signals

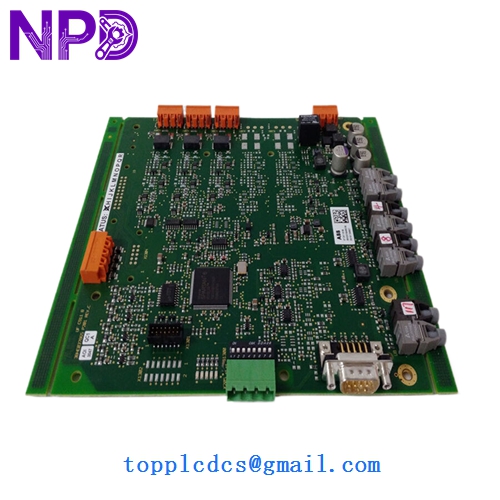

ABB UFC911B106 3BHE037864R0106

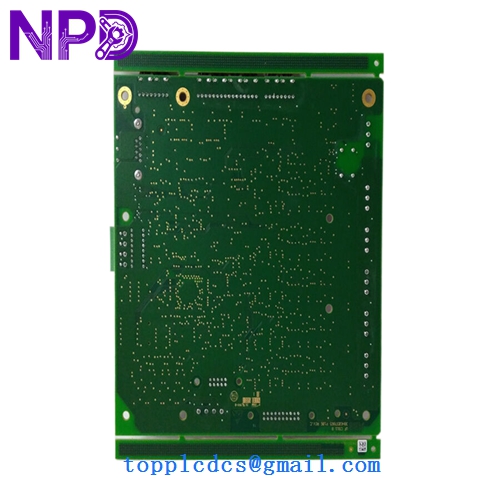

ABB UFC911B106 3BHE037864R0106
ABB UFC911B106 3BHE037864R0106 3BHE037865P201
ABB UFC911B106 3BHE037864R0106 3BHE037865P201
Application Fields
The UFC911B106 is critical in specialized power electronics sectors, including:
- Excitation Systems: Serving as the logic controller for UNITROL 6000 systems in power plants.
- Frequency Converters: Managing high-power AC/DC conversion in heavy-duty industrial drives.
- Mining & Metals: Controlling large synchronous motor drives for mills and heavy extraction equipment.
- Marine Propulsion: Integrated into the converter systems for electric ship propulsion and thrusters.
Product Usage Instructions
- Installation Environment: Ensure the control cabinet is clean and provides adequate cooling. This module should only be handled in an ESD-protected environment.
- Hardware Mounting: Slide the UFC911B106 into the correct slot of the system subrack. Verify that the backplane pins are straight and properly aligned before applying pressure.
- Connectivity: Connect the fiber optic cables to the designated ports for high-speed communication. Ensure the fiber ends are free of dust and correctly clicked into place to prevent signal dropouts.
- Software Configuration: After installation, use the ABB Control Builder or specific excitation configuration tool to download the application software and parameters to the module.
- Diagnostic Check: Monitor the status LEDs. A flashing “Run” LED usually indicates normal operation, while a steady “Fault” LED necessitates a check of the internal error log via the service interface.
Common Questions & Answers
Q: Is the UFC911B106 compatible with older UFC911 series modules? A: While the form factor may be similar, the “B106” suffix indicates a specific hardware revision and memory configuration. You must verify firmware compatibility before using it as a direct replacement for different R-versions.
Q: Can this module be repaired on-site? A: Due to the high density of surface-mount components and FPGAs, on-site repair is not recommended. Faulty modules should be sent to a certified ABB service center for testing and repair.
Q: Does this module require an external backup battery? A: Typically, system parameters are stored in non-volatile memory. However, the specific system chassis may utilize a central battery for time-keeping or data logs; check your system manual for chassis maintenance details.
Similar Model Recommendations
- ABB UFC911B101 3BHE014234R0101
- ABB UFC760BE142 3BHE004573R0142
- ABB UFC762AE101 3BHE006412R0101
- ABB UNS0863A-ZV
- ABB PCD231B 3BHE025541R0101
