Description

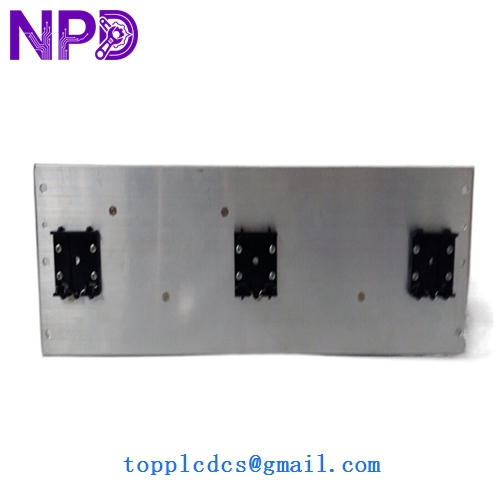

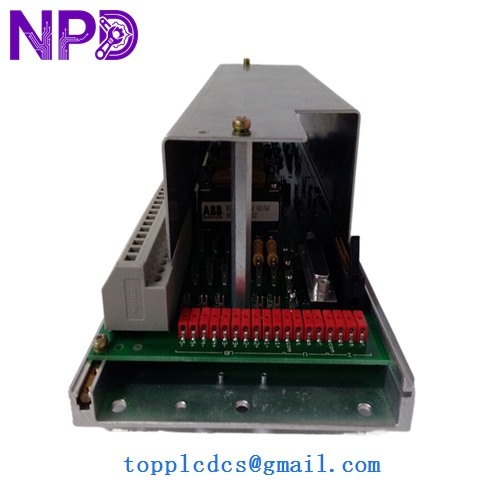

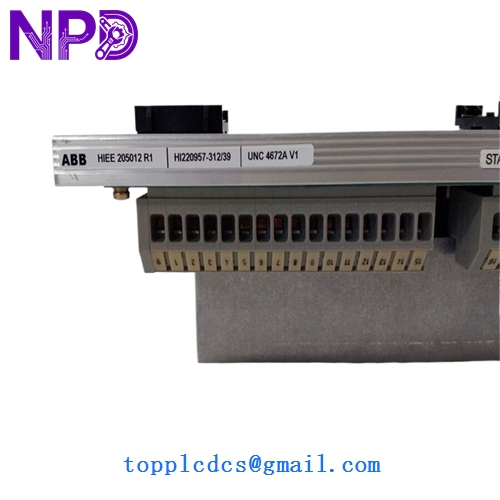

The ABB UNC4672A V1 HIEE205012R1 is a specialized electronic control board belonging to ABB’s high-power excitation and converter systems. Identified by the part number HIEE205012R1, this module is engineered to handle complex signal processing and control logic within the UNITROL or similar power electronic frameworks. The additional reference HI220957-31239 serves as a specific production or serial identifier. This board is designed for precision, long-term stability, and the ability to operate in electrically noisy environments typical of power generation and heavy industrial drive systems.
For more technical modules and automation spare parts, visit the ABB UNC4672A specialized hardware section.
Technical Datasheet
Product Identification
- Model Number: UNC4672A V1
- Part Number: HIEE205012R1
- Serial Ref: HI220957-31239
- Manufacturer: ABB
- Category: Control Interface Board / Power Electronics
Physical Characteristics
- Dimensions: 233 mm x 160 mm x 20 mm (Standard Eurocard format)
- Weight: 0.58 kg
- Mounting: Rack-mounted (Subrack integration)
- Country of Origin: Switzerland
Operational Specifications
- Input Voltage: 24V DC / ±15V DC (Internal bus power)
- Processing: Integrated logic circuits for real-time control
- I/O Interface: Multichannel analog and digital signal processing
- Operating Temperature: 0°C to +60°C
- Storage Temperature: -25°C to +85°C
ABB UNC4672A V1 HIEE205012R1 HI220957-31239
ABB UNC4672A V1 HIEE205012R1 HI220957-31239
ABB UNC4672A V1 HIEE205012R1 HI220957-31239
ABB UNC4672A V1 HIEE205012R1 HI220957-31239
Application Fields
The UNC4672A is primarily deployed in high-availability power systems, including:
- Excitation Systems: Part of the control loop for UNITROL 5000/6000 systems used in hydro and thermal power plants.
- Static Frequency Converters (SFC): Used in systems that start large gas turbines or pump-storage units.
- Large Drive Systems: Controlling high-power AC or DC drives in industrial mills and propulsion systems.
- Voltage Regulators: Managing reactive power and voltage stability in utility-scale electrical grids.
Product Usage Instructions
- Handling Protocol: This board is highly sensitive to Electrostatic Discharge (ESD). Ensure you are wearing a grounded wrist strap and handling the board only by the edges or the front panel.
- Installation: Power down the entire subrack before insertion. Align the board with the guide rails of the chassis and push firmly until the rear connectors seat properly into the backplane.
- Connection: Check that all ribbon cables or fiber optic connectors attached to the front or side of the board are securely fastened. A loose connection can result in intermittent “Signal Loss” alarms.
- Commissioning: Once powered, verify the LED status. Generally, a green LED indicates the power supply to the board is healthy. Use the system’s diagnostic tool (e.g., Control Builder or PEC tool) to confirm the board is communicating.
- Environment: Ensure that the cabinet cooling fans are operational. Overheating is the primary cause of premature failure in high-density control boards like the UNC4672A.
Common Questions & Answers
Q: Can the UNC4672A V1 be interchanged with a V2 version? A: Not without verifying the system software. While hardware revisions are often backward compatible, newer versions may have different timing or memory maps that require a firmware update for the central processor.
Q: What should I do if the “Fault” LED is illuminated? A: This usually indicates a checksum error or a failure in the self-test routine. Try reseating the board first; if the error persists, the board likely requires professional repair or replacement.
Q: Is this board used for AC or DC systems? A: The UNC4672A is a control-level component. It is used in the control logic of both AC converters and DC excitation systems, as it processes the logic signals rather than the high-power current.
