Description

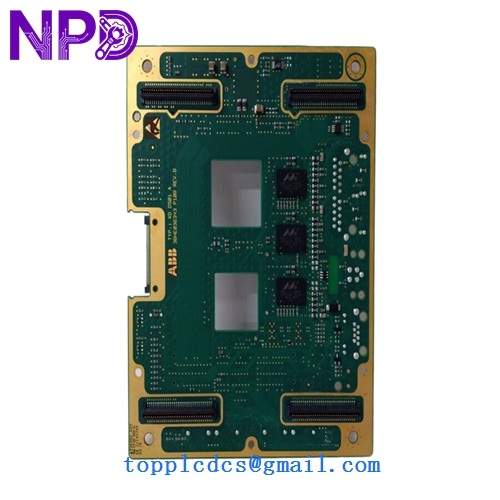

The ABB XDD501A101 3BHE036342R0101 is a high-reliability interface and control board designed for ABB’s specialized power electronics platforms, such as the UNITROL 6000 excitation systems and high-power frequency converters. This module serves as a critical junction for signal distribution, linking secondary control circuits with primary power hardware. It is engineered to maintain signal integrity and high-speed data throughput in harsh electromagnetic environments, ensuring the stable operation of large synchronous machines.
For a complete range of industrial control and excitation spare parts, visit our ABB XDD501A101 specialized hardware selection.
Technical Datasheet
Product Identification
- Model Number: XDD501A101

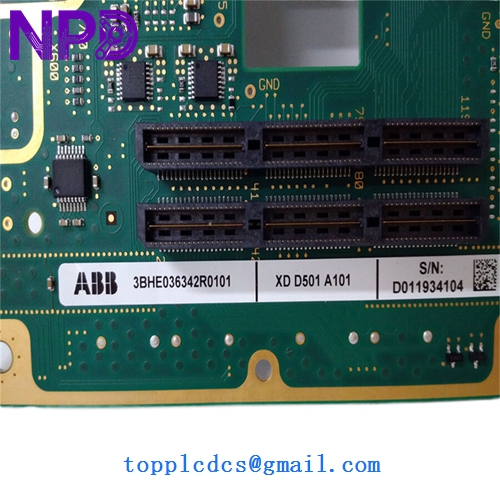

- Part Number: 3BHE036342R0101
- Manufacturer: ABB
- System Category: UNITROL 6000 / Power Electronics
Physical Characteristics
- Dimensions: 233 mm x 160 mm x 25 mm
- Weight: 0.68 kg
- Mounting: Standard Subrack (Eurocard)
- Country of Origin: Switzerland
Operational Specifications
- Logic Voltage: 24V DC (nominal)
- Signal Interfaces: Fiber optic and high-density pin connectors
- Power Dissipation: Low-wattage industrial design
- Operating Temperature: -5°C to +70°C
- Storage Temperature: -40°C to +85°C
ABB XDD501A101 3BHE036342R0101
ABB XDD501A101 3BHE036342R0101
ABB XDD501A101 3BHE036342R0101
ABB XDD501A101 3BHE036342R0101
Application Fields
The XDD501A101 is predominantly used in utility-scale power generation and heavy industrial drives:
- Hydroelectric & Thermal Power: Integrated into the excitation control loops of large-scale generators.
- Static Frequency Converters (SFC): Participating in the soft-start control logic for gas turbines.
- Mining & Heavy Industry: Managing synchronous motor drives for large mills and crushers.
- Marine Propulsion: Part of the converter control suite for high-power electric propulsion systems.
Product Usage Instructions
- ESD Safety: This board contains sensitive micro-electronics. Use an anti-static wrist strap and handle the board only by its front panel or edges.
- Mechanical Installation: Align the XDD501A101 with the guide rails in the 19-inch subrack. Push until the DIN connectors on the rear are fully seated. Secure the module using the integrated front panel screws.
- Communication Hookup: Connect the fiber optic links to the TX/RX ports on the front panel. Ensure the cables are not bent beyond their minimum radius to avoid signal attenuation.
- Commissioning: Once energized, observe the status LEDs. A steady green “Ready” or “Run” light indicates the module has passed its internal self-test and is communicating with the PEC (Power Electronic Controller).
- Environmental Care: Ensure the cabinet filters are cleaned regularly to prevent dust accumulation on the circuit paths, which could lead to short circuits in high-humidity environments.
Common Questions & Answers
Q: Is the XDD501A101 hot-swappable? A: While the hardware may support live insertion in some configurations, it is highly recommended to de-energize the control section before swapping boards in an excitation system to avoid an unintended process trip or generator shut-down.
Q: What is the purpose of the fiber optic ports on the front panel? A: These ports provide high-speed, noise-immune communication between the control board and the power modules or the central processor, isolating the control logic from high-voltage electrical noise.
Q: Can I use 3BHE036342R0101 to replace an R0102 version? A: Generally, “R” versions (Revisions) in ABB 3BHE series must match exactly unless the system manual explicitly states they are backward compatible. Different revision numbers often indicate different I/O logic or internal timing.
Similar Model Recommendations
- ABB XDD501A102 3BHE036342R0102
- ABB UFC911B106 3BHE037864R0106
- ABB UNS2880B-P 3BHE014967R0001
- ABB UAD154A 3BHE026866R0101
- ABB PPC322BE 3BHE014234R0101
