Description
- Model: ABB XV9738a
- Part Number: HEIE450617R1
- Brand: ABB (Switzerland)
- Series: Unitrol 5000 / 6000 / Megadrive-LCI
- Core Function: Pulse transformer and gate driver for high-power thyristor bridges
- Product Type: Thyristor Firing / Interface Module
- Key Specs: Galvanic Isolation High-current Gate Pulses Diagnostic Feedback
Key Technical Specifications
| Attribute | Specifications |
| Part Number | HEIE450617R1 |
| Device Model | XV9738a |
| Application | Unitrol Excitation Systems / LCI Static Starters |
| Function | Triggers Thyristors (SCRs) in Large Power Bridges |
| Isolation Voltage | High-level reinforced isolation (Typically >2.5 kV) |
| Pulse Shape | High-steepness current pulses for reliable firing |
| Monitoring | Integrated pulse feedback and thyristor status sensing |
| Connection | Pluggable terminals for gate/cathode leads |
| Operating Temp | -25°C to +70°C (Industrial Grade) |
| Mounting | Directly mounted near or on the thyristor stack |

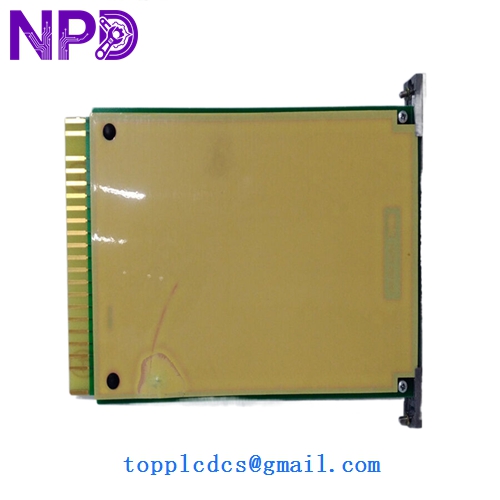

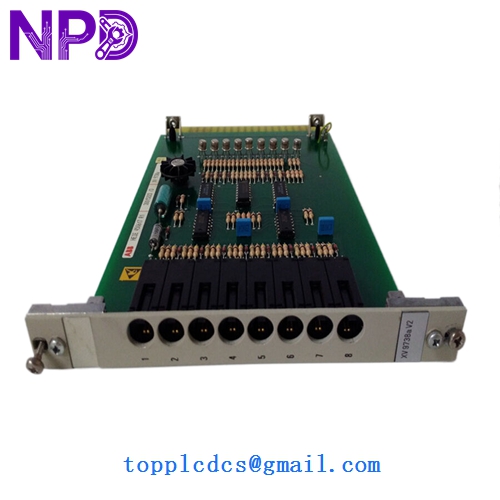

ABB XV9738a HEIE450617R1
ABB XV9738a HEIE450617R1
ABB XV9738a HEIE450617R1
Application Scenarios & Pain Points
The XV9738a is a critical interface between the low-voltage control electronics (like the UNS or UDC boards) and the high-voltage power semiconductors. Its primary job is to convert the control signal into a powerful electrical pulse that “fires” the thyristor. The biggest pain point with firing modules like the XV9738a is Insulation Degradation. Over years of operation in high-heat and high-vibration environments, the internal pulse transformers can develop micro-cracks in their insulation. This leads to intermittent firing or “misfires,” which cause massive current imbalances in the generator excitation bridge, eventually leading to a catastrophic “Overcurrent” or “Phase Loss” trip.
Typical Application Scenarios:
- Large Scale Static Excitation
Firing the large thyristor discs used to provide field current to 100MW+ synchronous generators.
- LCI Soft Starters
Managing the precise switching timing required to convert frequency and start large gas turbines or synchronous motors.
- Medium Voltage Converters
Serving as the gate-drive interface for high-power industrial drives (ACS series).
Case Study: The “Phase Imbalance” Shutdown
Background: A hydroelectric plant was experiencing recurring “Excitation Bridge Unbalance” alarms on its Unitrol 5000 system.
Problem: The onsite team checked the thyristors, and they all tested fine. However, under heavy load, one phase would “drift.” The issue was traced to an aging XV9738a module. The pulse it produced was slightly delayed and weakened due to a failing transformer core, causing the thyristor to fire late.
Solution: 我们提供了经过完全测试的 XV9738a HEIE450617R1 模块。
Result: After replacing the firing board, the pulse timing returned to perfect symmetry. The bridge unbalance alarm disappeared, and the generator returned to full VAR output capacity.
Compatible Replacement Models
| Original Model | Replacement Model | Compatibility | Main Difference | Action Required | Cost Impact |
| XV9738a | XV9738a | ✅ Direct | N/A | 1:1 Replacement | Base |
| XV9738a | XV9724 | ❌ Incompatible | Lower Voltage/Power | None | N/A |
| XV9738a | XV9738b | ⚠️ Limited | Newer Revision | Check terminal layout | +10% |
Engineer’s Note: The XV9738a (HEIE450617R1) is often used in a “set.” If one firing board fails due to age, it is highly recommended to replace all boards in that bridge (usually 6 units) to ensure uniform firing characteristics across all phases.
Troubleshooting Quick Reference
| Symptom | Possible Cause | Spare Necessity | Quick Check | Action |
| Thyristor Not Firing | Pulse Transformer Open | ✅ High | Measure resistance of pulse output | Replace module |
| “Misfire” Alarm | Signal Insulation Leak | ✅ High | Check for carbon tracking on board | Replace module immediately |
| Overheating Module | High Internal Impedance | ⚠️ Medium | Use IR camera to check for hot spots | Replace before failure |
| No Pulse Feedback | Feedback Circuit Fail | ⚠️ Medium | Check signal to the controller board | Replace if board logic is dead |
❗ Critical Warning: High Voltage Hazard
The XV9738a is connected directly to the thyristor gates which carry high potential. Never attempt to measure the output of this module with a standard multimeter while the system is energized. You will destroy your meter and risk a lethal electric shock. Use only high-voltage isolated probes and an oscilloscope for diagnostic tracing.
SOP Quality & Testing Protocol:
Every XV9738a HEIE450617R1 we ship undergoes a Pulse Integrity Test. We use a specialized pulse generator to trigger the board and an isolated oscilloscope to verify the rise-time, peak current, and pulse duration of the output. We also perform a Dielectric Withstand Test to ensure the galvanic isolation is intact. A full Test Certificate documenting the pulse characteristics is provided with every shipment. Video of the pulse waveform verification is available upon request.
