Description
The ABB XVC517AE10 (3BHB004744R0010) is a high-performance control interface board primarily utilized within ABB’s high-power electronics systems, including the AC 800PEC and UNITROL series. This module serves as a bridge between high-level control logic and power stage hardware, facilitating rapid data acquisition and pulse-width modulation (PWM) signal generation. Designed for the rigorous demands of power conversion and grid stabilization, the XVC517AE10 provides the timing precision and signal integrity required for controlling large-scale power converters and industrial drives.
Product Specifications
- Model Identification: ABB XVC517AE10 (Part Number: 3BHB004744R0010)
- System Platform: AC 800PEC / UNITROL 6000 Power Electronics
- Interface Type: Fiber optic and high-speed bus interfaces for low-latency communication
- Signal Processing: Dedicated logic for high-frequency PWM and fault protection
- Input Voltage: System-supplied via the control backplane
- Dimensions: 233 mm x 160 mm (Standard Eurocard 6U format)
- Weight: 0.78 kg
- Country of Origin: Switzerland / Estonia

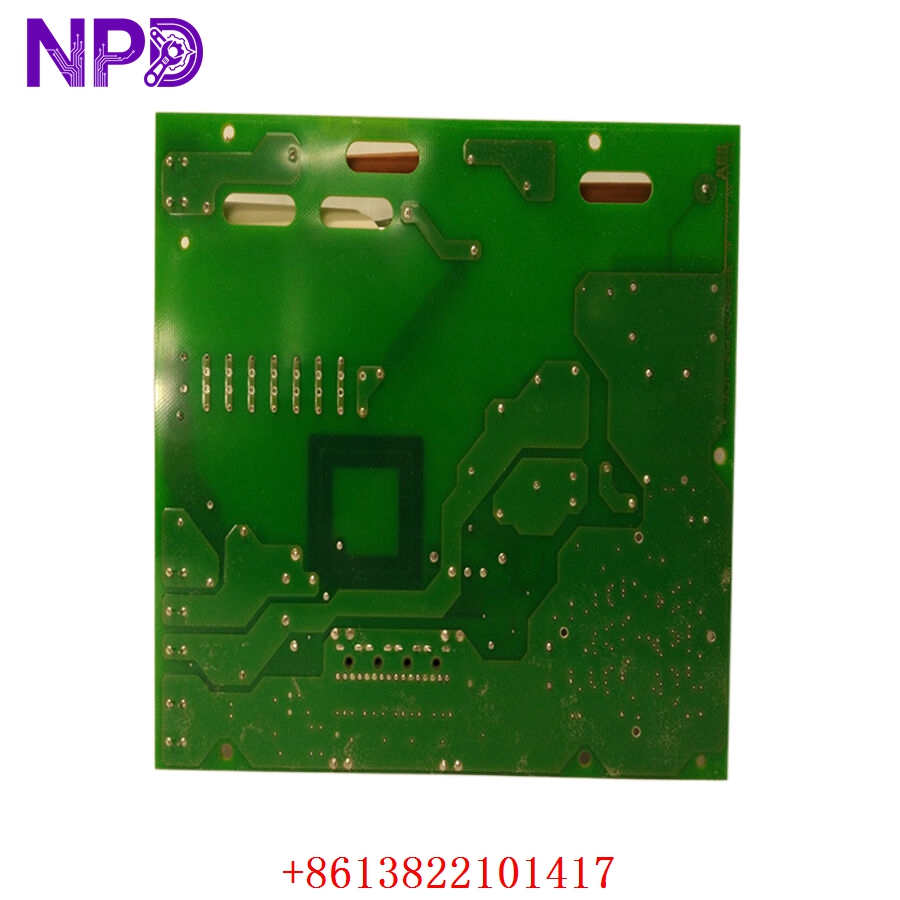

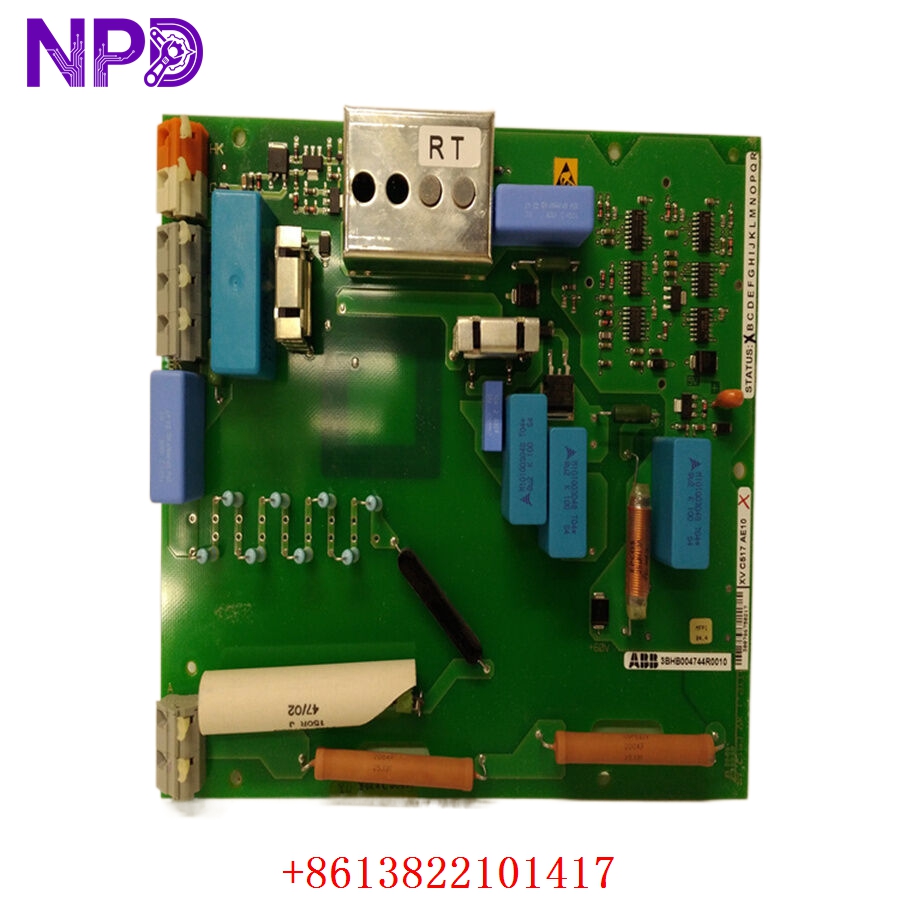

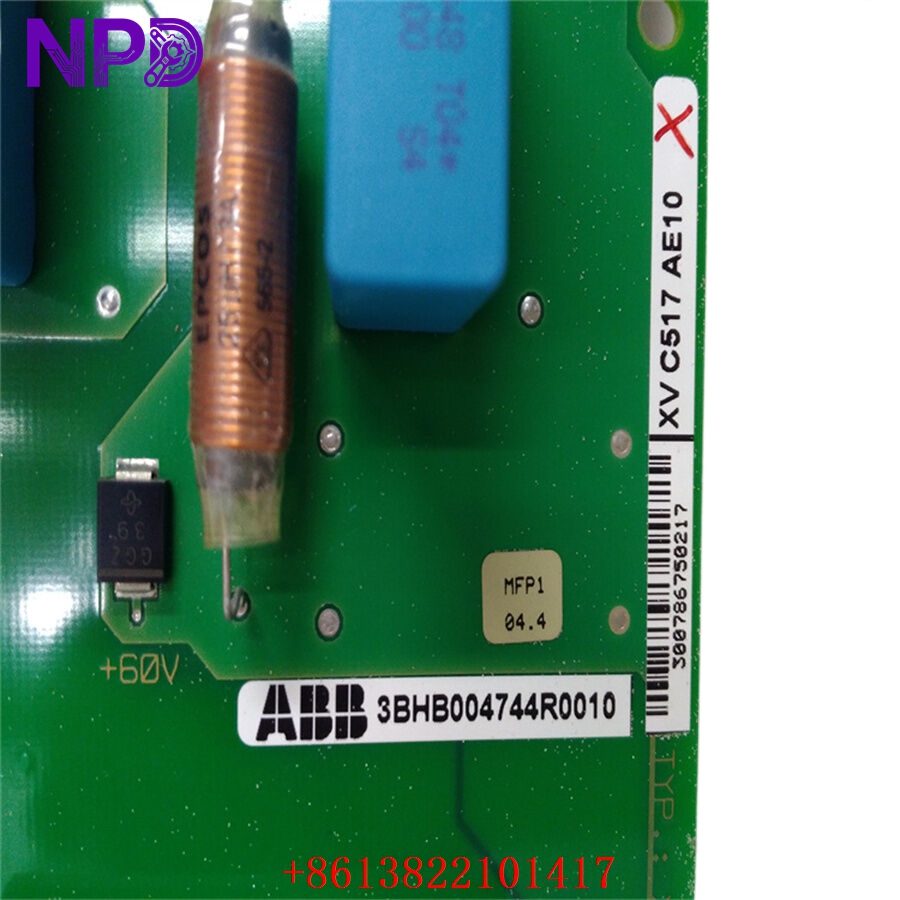

ABB XVC517AE10 3BHB004744R0010
ABB XVC517AE10 3BHB004744R0010
ABB XVC517AE10 3BHB004744R0010
ABB XVC517AE10 3BHB004744R0010
Application Fields
The ABB XVC517AE10 is an essential component for high-power technical installations:
- Excitation Systems: Managing the output of UNITROL 6000 systems for synchronous machines in utility-scale power plants.
- Static Frequency Converters: Coordinating the switching logic for frequency conversion in rail power supplies and pumped storage.
- Renewable Energy: Control and monitoring of large-scale wind turbine converters and solar PV central inverters.
- Industrial Drives: Precision control for high-power medium voltage (MV) drives used in mining and metallurgy.
- HVDC & FACTS: Integral to the control architecture of High Voltage Direct Current links and Flexible AC Transmission Systems.
Product Operation Instructions
- Installation: Slide the module into the designated slot of the control subrack. The module should be inserted with steady pressure to ensure all pins of the backplane connector are fully engaged. Tighten the front panel screws to ensure electrical grounding and mechanical stability.
- Fiber Optic Links: Connect the fiber optic cables to the transceiver ports. These links are critical for transmitting gate signals to the power modules while maintaining electrical isolation from high-voltage sections.
- Software Configuration: The module is typically configured via the ABB Control Builder M or the specialized AC 800PEC toolset. Ensure the software parameters for the converter topology match the XVC517AE10’s hardware capabilities.
- Diagnostic Monitoring: Utilize the onboard LED indicators to verify status. A “Status” LED usually indicates if the internal FPGA/Processor is running, while “Link” LEDs confirm active communication over the fiber optic ports.
- ESD Protection: When handling the board for maintenance or replacement, always use a grounded anti-static wrist strap. The high-speed logic circuits on the XVC517AE10 are highly sensitive to electrostatic discharge.
Q&A: Common Questions
Q: Is the XVC517AE10 a standalone controller? A: No, it is an interface module that operates under the supervision of a main processor (such as the AC 800PEC). It handles the high-speed I/O and PWM tasks that require faster-than-millisecond response times.
Q: What is the significance of the “AE10” revision? A: The revision code (AE10) denotes the specific hardware version and internal components. It is crucial to match this revision during replacement to ensure that existing system firmware and cable harnesses remain compatible.
Q: Can I repair a damaged fiber optic port on the board? A: Due to the high precision required for fiber optic alignment and the complexity of the PCB, field repair of the ports is generally not recommended. The entire module should be replaced to ensure system reliability.
