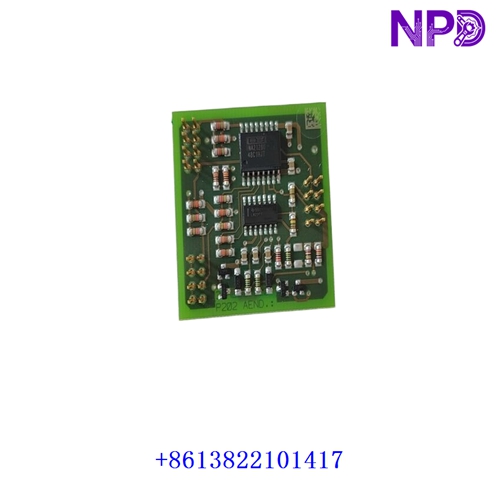

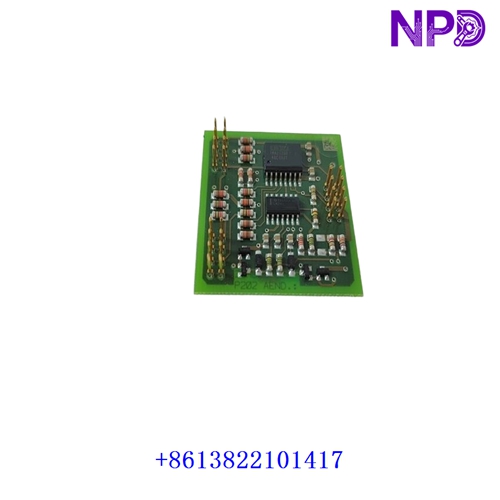

ABB XVC767AE102 | 3BHB007209R0102 | Control and Interface Module

Description

Product Specifications & Datasheet

• Brand: ABB
• Model: XVC767AE102 (3BHB007209R0102)
• Series: ACS / Industrial Drive and Control System Series
• Product Name: Control / Interface Board
• Place of Origin: Sweden / Switzerland
• Lifecycle Status: Active / Industrial Automation Spare Part
• Dimensions: Standard Modular Form Factor
• Weight: 0.60 kg
• Origin Country: Sweden
• Power Rating: Low-voltage DC internal bus powered

Operating Procedures & Usage Guidelines

• Pre-Installation Inspection: Ensure that the drive or control rack power is completely turned off and discharged before handling the board. Inspect pins for damage.
• Module Insertion: Align the board with the internal guide rails and push it steadily into the designated slot until fully seated and secured.
• Cable Connections: Fasten any associated fiber optic or internal signal cables tightly to their corresponding ports, ensuring proper alignment to avoid pin damage.
• System Initialization: Restore power to the equipment and check the local control panel or diagnostic software to confirm successful module recognition.

Emergency Shutdown Operation

• Main Power Interruption: Trigger the emergency off switch or main circuit breaker feeding the drive system to cut power immediately during critical faults.
• Drive Isolation: Ensure the system safely discharges stored DC-link energy and brings connected motors to a controlled or safe stop status.

Troubleshooting & Common Issues

• Communication Faults: Inspect fiber optic cables or internal ribbon connectors for secure attachment, dirt, or signal attenuation.
• Module Unresponsive: Verify that the board is pushed completely into its backplane slot and that internal power rails are supplying correct voltages.
• Error Code Generation: Check the main drive or controller fault log via the software interface to diagnose specific hardware or communication mismatches.

Routine Maintenance & Care

• Dust and Debris Removal: Use clean, dry compressed air during scheduled maintenance windows to clear dust accumulation from the board components.
• Connection Integrity: Periodically verify that all plug-in connectors and mounting screws remain tight despite vibration from heavy machinery.
• Environmental Monitoring: Ensure cabinet climate control systems maintain proper temperature and humidity ranges to prolong electronic component life.

Frequently Asked Questions (Q&A)

• Q: What is the primary application of the ABB XVC767AE102 module?
  • A: It is typically utilized within high-power industrial drive and control architectures to manage internal signal processing and communication tasks.
• Q: Can this board be replaced while the system is live?
  • A: No, power must always be fully disconnected and residual voltages discharged before removing or inserting this control board.
• Q: How do I know if the replacement board is functioning correctly after installation?
  • A: Monitor the status LED indicators on the module and verify that the master controller registers no active hardware errors.
