Description

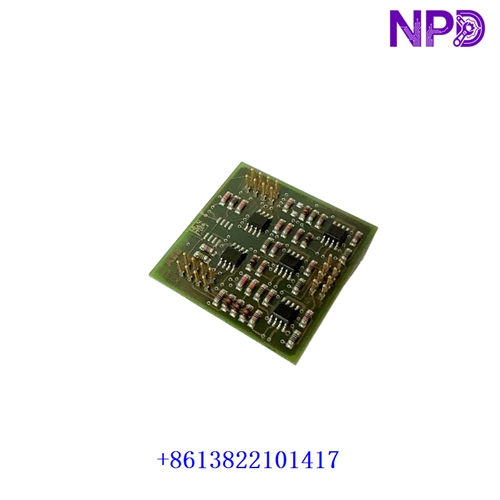

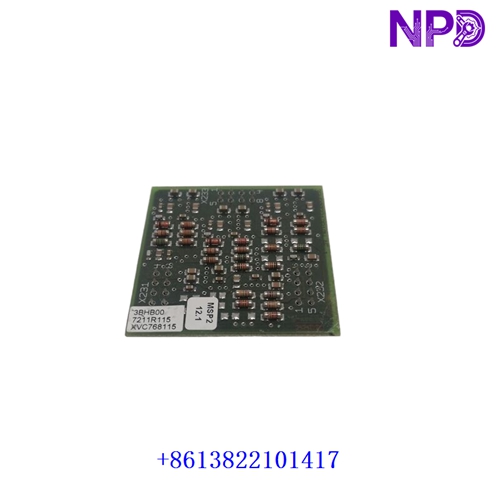

The ABB XVC768115 (Part Number: 3BHB007211R115) is an advanced gate driver and interface module engineered specifically for ABB medium-voltage power converters, frequency drives, and industrial soft starters. It functions as a critical bridge between central control electronics and high-power semiconductor switching devices (such as IGCTs or IGBTs). Designed to operate in rigorous heavy-duty industrial environments, it delivers ultra-fast switching commands, precise gate control signals, and robust galvanic isolation to guarantee optimal power conversion efficiency and reliable system performance.
📊 Product Datasheet
| Parameter | Value |
| Brand | ABB |
| Model | XVC768115 / 3BHB007211R115 |
| Series | Medium Voltage Drive Control Electronics |
| Product Name | Gate Driver and Interface Module |
| Origin | Switzerland / Germany |
| Product Status | Active / Industrial Automation Spare Part |
| Dimensions | Standard Industrial PCB Form Factor |
| Weight | 0.45 kg |
| Country of Origin | Switzerland (CH) |
| Power Rating | Low Voltage DC Powered (Internal Bus) |
🛠️ Operation Standards and Usage Methods
🔸 Handling Precautions: Always ensure that the drive cabinet is completely de-energized and locked out before handling or installing the module. Wear a certified anti-static wrist strap to protect sensitive internal microelectronic components from electrostatic discharge (ESD).
🔸 Installation Procedure: Carefully align the module along the designated board guides or mounting standoffs. Press it evenly until it seats firmly into its intended interface connector, then secure any mechanical locking screws or retaining clips.
🔸 Startup Verification: Energize the system control power and check the onboard status LEDs to verify proper initialization, active communication links, and the absence of hardware or fiber-optic fault codes before applying high voltage.
🚨 Emergency Shutdown Procedures
🔺 Immediate Trip Initiation: In the event of an overcurrent, thermal overload, or critical drive fault, immediately trigger the main system emergency stop or circuit breaker to cut off high-voltage power.
🔺 Pulse Blocking: Ensure the master control architecture instantly blocks all gate firing signals to the XVC768115 module to prevent further semiconductor conduction.
🔺 Post-Incident Inspection: Allow sufficient time for internal components to discharge and cool down completely. Inspect the module and connected fiber-optic cables for any physical damage before initiating troubleshooting or restart sequences.
🔍 Troubleshooting and Common Issues
⚠️ Issue 1: Fiber-Optic Communication Loss or Fault LED
Troubleshooting Method: Inspect all fiber-optic cables connected to the module for tight bending radii, dust accumulation on the optical tips, or secure latching. Clean the connectors using approved optical cleaning tools if necessary.
⚠️ Issue 2: Gate Drive Failure or Misfire Alarm
Troubleshooting Method: Verify that the internal low-voltage power rails supplying the module are stable and within the manufacturer’s specified tolerance range. Check diagnostic logs via the engineering tool for specific error codes.
⚙️ Routine Maintenance and Care
🔹 Periodic Visual Inspection: Perform monthly visual checks of the control cabinet to verify that all terminal connections, wiring harnesses, and mounting hardware remain secure and free from dust buildup.
🔹 Environmental Management: Ensure that the climate control systems within the electrical room maintain stable ambient temperatures and low humidity to prevent premature component aging or condensation.
🔹 Diagnostic Log Reviews: Regularly monitor system event and error logs through the software interface to track performance metrics and catch minor communication anomalies early.
💡 Frequently Asked Questions Q&A
❓ Q1: Can the XVC768115 module be replaced while the drive is energized?
💬 A1: No. Hot-swapping is strictly prohibited. The entire drive lineup must be completely powered down and locked out before removing or inserting this module.
❓ Q2: What is the primary function of this module in the drive system?
💬 A2: It translates control commands from the processor into high-speed gate firing pulses for the power semiconductor devices while providing vital diagnostic feedback.
❓ Q3: How should spare modules be stored?
💬 A3: Store spare units in their original anti-static packaging within a clean, temperature-controlled environment free from corrosive gases, moisture, and mechanical vibrations.
