Description

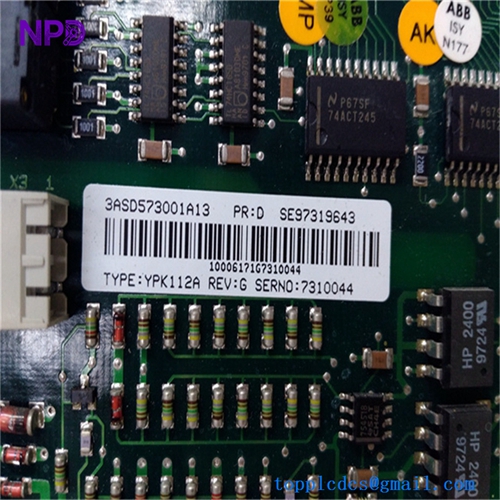

The ABB YPK112A (3ASD573001A13) is a communication module designed for ABB DCV 700 series thyristor converters, enabling connection between the APC application controller and Advant Fieldbus 100 network. It supports industrial fieldbus communication for drive control, monitoring, and integration in automation systems handling DC motor drives.
Product Parameters
- Protocol: Advant Fieldbus 100 (62.5 kBaud).
- Connections: APC interface for data exchange.
- Dimensions: 16cm x 16cm x 12cm; Weight: 0.8 kg.
- Operating Voltage: ≤500 V (adaptable via T3 transformer).
- HS Code: 85389091.
- Environment: Industrial, EMC compliant.
Datasheet Summary
Compact board for fieldbus networking in DC converters; supports speed/torque references and status feedback. Features plug-in installation, diagnostic LEDs, and compatibility with APC2 processors. Rated for harsh environments with robust insulation (700 V).
Origin
United States.
Technical Details
Interfaces APC to fieldbus for remote control/monitoring; handles digital firing, current feedback, and sequence control signals. Supports drive/torque modes with fault logging; wiring via standard connectors for easy commissioning. Integrates with thyristor bridges (2/4-quadrant) up to 5150 A ratings.
Common Q&A
- Main function? Links APC to Advant Fieldbus 100 for networked drive ops.
- Baud rate? 62.5 kBaud for precise control.
- Voltage limits? ≤500 VAC operating.
- Installation? Plug-in to APC slot, no special tools.
- Diagnostics? LEDs and fault logger for troubleshooting.
Similar Models
| Model | Key Features |
|---|---|
| YPK111A | Base fieldbus adapter |
| YPK113 | Enhanced baud rate |
| SPA560 | Profibus variant |
| CI520A | Fieldbus 100 upgrade |
| CI522A | Profinet module |
| DO620 | Digital output companion |
| AO920A | Analog output alt. |
| SSPA301 | Safety communication board |
